DONALDSON part description

Product Description

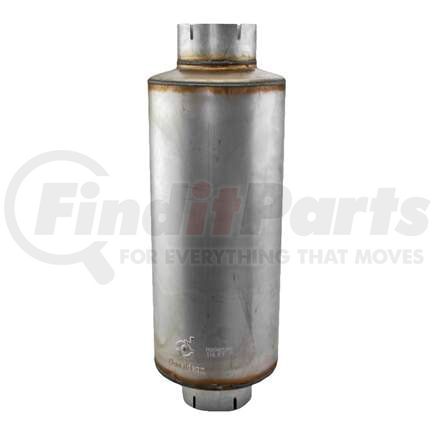

MUFFLER, ROUND STYLE 1

Product Attributes

Body Length 20.00 in
Overall Length 26.50 in
Attenuation Hr 15 dBA
Attenuation Lr 10 dBA
Back Pressure High-range Hg2.99 inch Hg)
Back Pressure Low-range Hg0.98 inch Hg)
Back Pressure Mid-range Hg2.01 inch Hg)
Body Diameter Maximum 8.97 in
Inlet Diameter 5.03 in
Outlet Diameter 5.03 in
Rated Flow Hr 70.1 m³/min (2476 cfm)
Rated Flow Lr 40.5 m³/min (1430 cfm)
Rated Flow Mr 57.3 m³/min (2024 cfm)
Style Style 1
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.

DONALDSON M090595 Cross Reference

We have 5 alternatives for the M090595 by DONALDSON:
