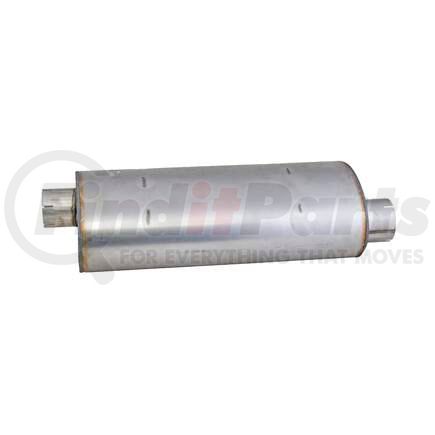

(888) 312-8812 Login SignupDONALDSON M090520 Exhaust Muffler - 32.25 in. Overall length
MSRP: $783.03
$36299
Save $420.04
Limited availability at this price!
In Stock
Get it by Thursday, Sep 3
DONALDSON M090520 Part Description
DONALDSON M090520 Specifications
Product Attributes
| Body Length | 26.00 in |
| Overall Length | 32.25 in |
| Attenuation Hr | 18 DBA |
| Attenuation Lr | 13 DBA |
| Back Pressure High-range | 2.99 INHG |
| Back Pressure Low-range | 0.98 INHG |
| Back Pressure Mid-range | 2.01 INHG |
| Body Diameter Maximum | 11.5 IN |
| Body Diameter Minimum | 8.25 IN |
| Inlet Clock Position | 3:00 |
| Inlet Diameter | 3.51 IN |
| Outlet Clock Position | 9:00 |
| Outlet Diameter | 4.02 IN |
| Rated Flow Hr | 48.6 m³/min |
| Rated Flow Lr | 28.1 m³/min |
| Rated Flow Mr | 39.7 m³/min |
| Style | Style 2 |
| Body Length | 26 IN |
| Overall Length | 32.25 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8708925000 |
| UPC | 00742330005200 |
DONALDSON M090520 Cross References
| Brand | Part Number |
|---|---|
| A P PARTS | 3611, 3611Q, 3716 |
| ACRAFIT | M20512 |
| AP EXHAUST PRODUCTS INC | 3611 |
| DYNAFLEX | 89354051, 89354055 |
| FORD | 9575M090520 |
| N/A | M20512, 86512M, 86669M, 89354051, 89354055, 3611, 3716, M512, 11227, M23548X11, ZF947, 102974, 9575M090520, 1909532 |
| NAVISTAR | FLT86512M |
| WALKER EXHAUST | 21832 |
DONALDSON M090520 Customer Reviews
No reviews yet
Be the first to review this product!
DONALDSON M090520 Manufacturer Information
For more than 100 years, Donaldson® has provided effective solutions to complex filtration challenges in various industries. Fleet managers worldwide have relied on Donaldson’s wide range of filtration products to ensure their trucks operate at peak efficiency and reduce expenses and maintenance downtime in the long run. These products include air intake filters and cleaners, cabin air filters, coolant filters, fuel filters and water separators, transmission filters, exhaust filtration products, and so much more. Each Donaldson filtration product is engineered for durability and performance that matches that of the original. Whether they are long-haul trucks, school buses, dump trucks, or other commercial vehicles, Donaldson filtration products will help keep them running smoothly.
