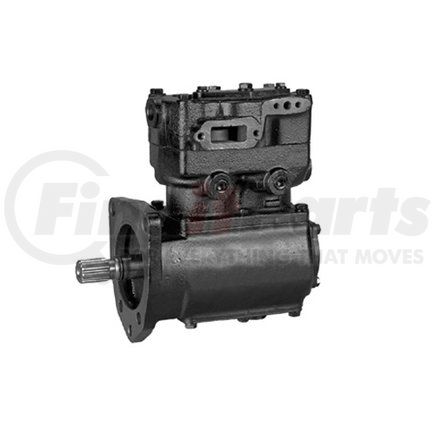

(888) 312-8812 Login SignupBENDIX EL16200X Midland Air Brake Compressor - Remanufactured, 3-Hole Flange Mount, Gear Driven, Water Cooling
$56849
+$437.50 core deposit
Total price w/ core: $1,005.99
7 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
BENDIX EL16200X Part Description
Manufacturer
Product Description
Compressor
Features & Benefits
- Provides and maintains air under pressure in order to operate devices in the air brake and/or auxiliary air systems
- Engineered to exacting standards for proper fitment and function
- A cost-efficient option that works just as good as the OEM unit
- All Bendix remanufactured air brake compressors are 100% end-of-line tested to ensure quality and reliability
Courtesy of Bendix – All rights reserved
Bendix Midland Compressor
The Bendix Midland compressor goes through rigorous remanufacturing processes and testing to offer better performance and efficiency. It is a part of Bendix's comprehensive lineup of reman compressors proven to help fleets and vehicle owners extend their vehicle's service life and reduce their total cost of vehicle ownership.
BENDIX EL16200X Specifications
Product Attributes
| Air Inlet Location | Right |
| Air Outlet Location | Top (Flange) |
| Bore Diameter | 69.9 mm |
| Coolant Inlet Location | Right |
| Cooling Type | Water |
| Cylinder Quantity | 2 |
| Mounting Angle | 2Adeg |
| Mounting Hole Quantity | 3 |
| Mounting Type | 3-Hole Flange Mount |
| New Or Remanufactured | Remanufactured |
| Notes | Gear Compressor / Spline Crankshaft Drive Type, End Cover Oil Feed |
| Operation | Gear Driven |
| Rated Displacement | 16.1 CFM @ 1250 RPM |
| Recommended Use | For Caterpillar 3406B Engine |
| Series | Midland |
| Air Inlet Port | Right |
| Bore Size | 69.9 mm |
| Compressor Drive Type | Gear |
| Compressor Manufacturer | Midland |
| Coolant Inlet Port | Right |
| Cooling | Water-Cooled |
| Crankshaft Drive Type | Spline |
| Discharge Air Port | Top (Flange) |
| Displacement (CFM at 1250 RPM) | 16.1 CFM |
| Drive Gear Included | No |
| Engine Manufacturer | Caterpillar |
| Engine Model | 3406B |
| Governor Included | No |
| Lubrication | End Cover Oil Feed |
| Market Indicator | Aftermarket Remanufactured |
| Mounting Flange Location | Flange, Front |
| Number of Cylinders | 2 |
| Number of Mounting Holes | 3 |
Additional Information
| Core Class | MA |
| Core Group | M1 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8414801615 |
| UPC | 04068078231784 |
| VMRS Code | 013009001 |
BENDIX EL16200X Cross References
| Brand | Part Number |
|---|---|
| N7016, 1300 | |
| MERITOR | R955EL16200X |
| N/A | GK13080 |
BENDIX EL16200X Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX EL16200X Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
