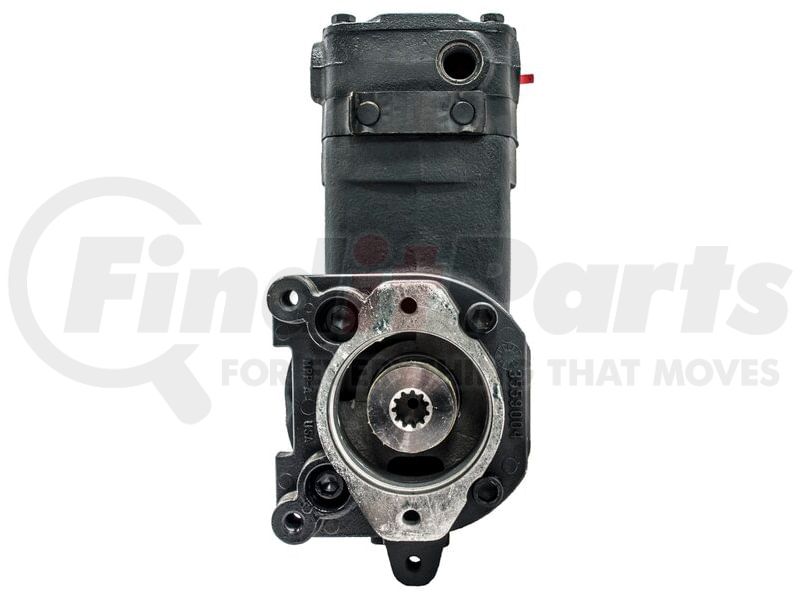

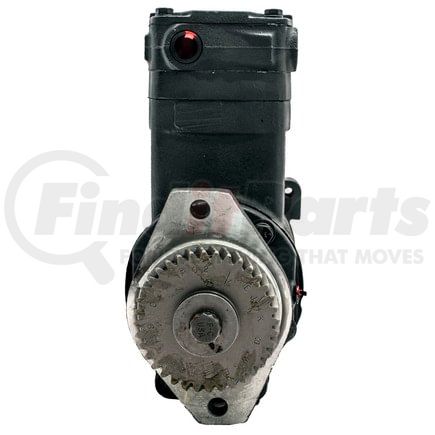

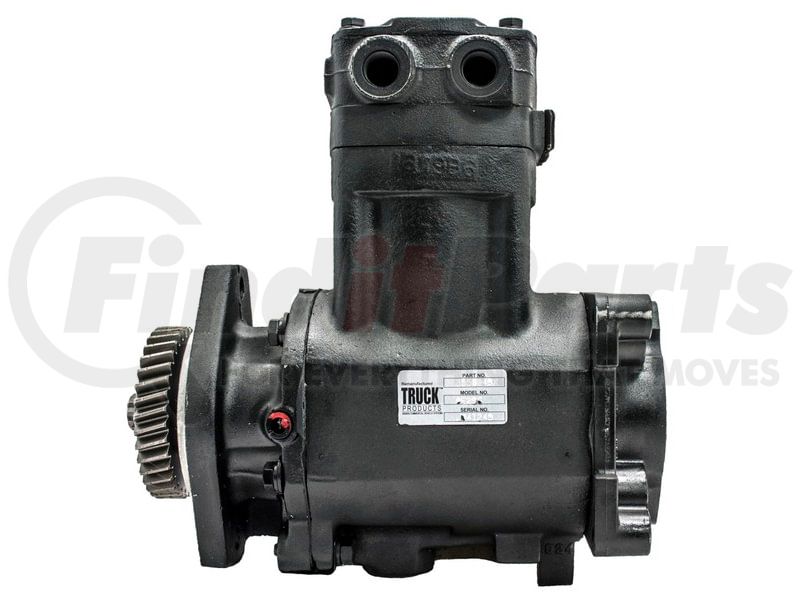

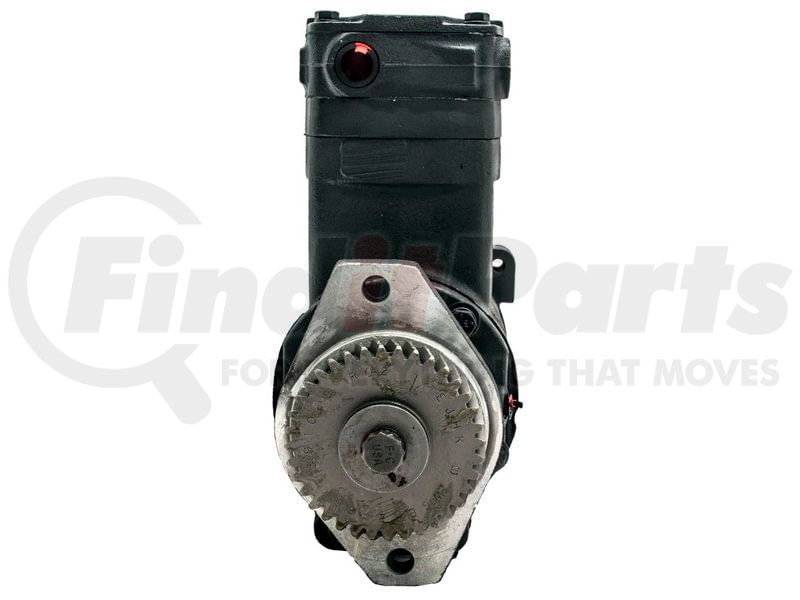

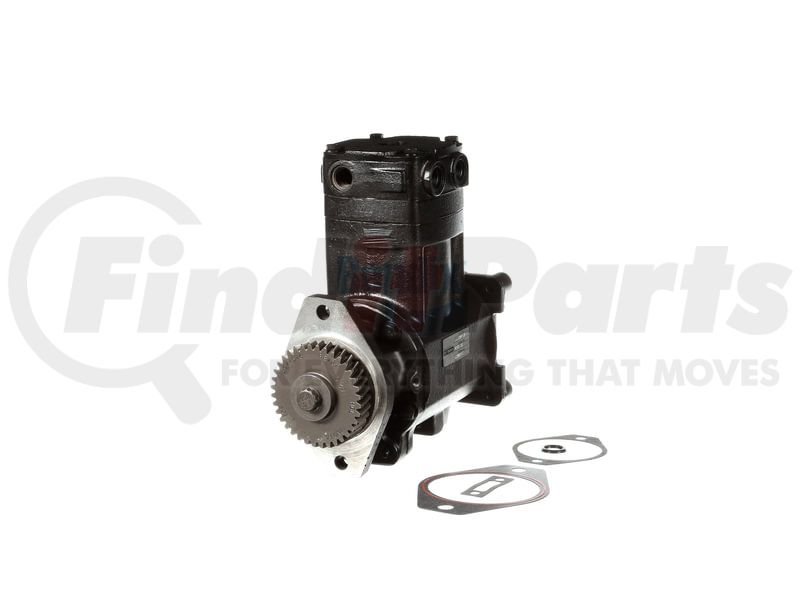

(888) 312-8812 Login SignupBENDIX 3558049X Holset Air Brake QE296B Compressor - Remanufactured, 2-Hole Flange Mount, Water Cooling, 92.1 mm Bore Diameter
Tap to view 2 more
$46649
+$437.50 core deposit
Total price w/ core: $903.99
7 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
BENDIX 3558049X Part Description
Manufacturer
Product Description
Compressor
Features & Benefits
- Provides and maintains air under pressure in order to operate devices in the air brake and/or auxiliary air systems
- Engineered to exacting standards for proper fitment and function
- A cost-efficient option that works just as good as the OEM unit
- All Bendix remanufactured air brake compressors undergo 100% end-of-line testing to ensure quality and reliability
Courtesy of Bendix – All rights reserved
Bendix Holset Compressor
Engineered to offer better performance and efficiency, the Bendix Holset compressor is all you'll ever need to restore the like-new condition of your truck's air brake system. It is a part of Bendix's comprehensive lineup of reman compressors designed to help fleets and vehicle owners extend their vehicle's service life and reduce their total cost of vehicle ownership.
BENDIX 3558049X Specifications
Product Attributes
| Bore Diameter | 92.1 mm |
| Cooling Type | Water |
| Cylinder Quantity | 1 |
| Mounting Hole Quantity | 2 |
| Mounting Type | 2-Hole Flange Mount |
| New Or Remanufactured | Remanufactured |
| Notes | Gear Compressor/Threaded Crankshaft Drive Type, 11-Tooth Spline Thru Drive Shaft Connector, Engine Oil Feed |
| Operation | Engine Driven |
| Rated Displacement | 13.2 CFM @ 1250 RPM |
| Recommended Use | For Cummins B Series |
| Series | Holset |
| Bore Size | 92.1 mm |
| Compressor Drive Type | Gear |
| Compressor Manufacturer | Holset |
| Cooling | Water-Cooled |
| Crankshaft Drive Type | Threaded |
| Displacement (CFM at 1250 RPM) | 13.2 CFM |
| Drive Gear Included | Yes |
| Engine Manufacturer | Cummins |
| Engine Model | B Series |
| Governor Included | No |
| Lubrication | Engine Oil Feed |
| Market Indicator | Aftermarket Remanufactured |
| Mounting Angle | 35Adeg |
| Mounting Flange Location | Flange, Front |
| Number of Cylinders | 1 |
| Number of Mounting Holes | 2 |
| Thru-Drive Mounting Type | Flange - 4 Hole |
| Thru-Drive Shaft Connector | 11-Tooth Spline |
Additional Information
| Core Class | JL |
| Core Group | J4 |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8414801615 |
| UPC | 04068078314036 |
| VMRS Code | 013009001 |
BENDIX 3558049X Cross References
| Brand | Part Number |
|---|---|
| N7502C, R955KN85022, EL850 | |
| N/A | 3559568 |
BENDIX 3558049X Customer Reviews
No reviews yet
Be the first to review this product!
BENDIX 3558049X Manufacturer Information
A part of the Knorr-Bremse Group, Bendix® provides the automotive and truck parts industry with cutting-edge energy management solutions, active safety technologies, and air brake charging for tractors, buses, commercial vehicles, trailers, as well as medium- and heavy-duty trucks throughout North America. Headquartered in Elyria, Ohio, Bendix Commercial Vehicle Systems employs over 3,200 people who work hand in hand for the accomplishment of the brand's vision: "to become the leading worldwide supplier of active vehicle safety systems within the commercial vehicle industry." This brand takes pride in being the first to introduce many notable parts and technologies to the North American commercial vehicle market. Among these many firsts are the groundbreaking air brake system technologies such as air dryers, air compressors, and ABS. At Bendix, exceeding industry standards is a strict requirement.
