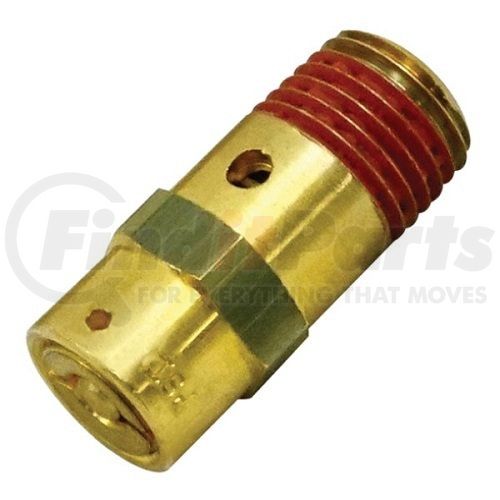

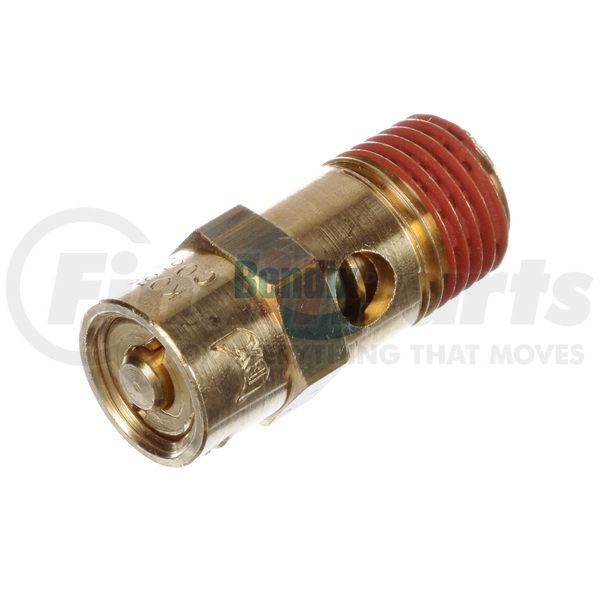

(888) 312-8812 Login SignupBENDIX K039542 Safety Valve
Tap to view 4 more
SHIPS NEXT BUSINESS DAY
$7749
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 10
BENDIX K039542 Part Description
Manufacturer
Product Description
Safety Valve
Features & Benefits
- Port thread matches the reservoir fitting already in place
- Reseats itself automatically once pressure returns to normal
- Spring tension sets the pressure point where the valve lifts
- Backs up the governor if it fails to cut out
Bendix Air Brake Reservoir Safety Valve
Protect the air reservoir from over-pressurization with the Bendix Air Brake Reservoir Safety Valve, replacing one that's stuck closed or corroded at the seat. No new fitting is needed, since the Bendix K039542 threads into the same reservoir port the original valve used. A spring holds the valve shut under normal pressure and only lifts once pressure exceeds the relief point, then reseats automatically once pressure drops back to normal. A functioning relief valve gives the reservoir a mechanical backup if governor control fails.
BENDIX K039542 Specifications
Product Attributes
| Adjustable | No |
| Closing Pressure | 50% of the Nominal Opening Pressure |
| Hex Size | 9/16 IN |
| Inlet Port | 1/4-18 NPT |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 250 AdegF (121 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Number Of Vents | 2 |
| Opening Pressure | 250 A+- 10 PSI |
| Thread Sealant | Pre-Applied |
| Vent | A~ .281 IN |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 04068078219454 |
| VMRS Code | 013010073 |
BENDIX K039542 Cross References
| Brand | Part Number |
|---|---|
| BWK039542 |
