BENDIX 104165 Part Description
Manufacturer
Product Description
Relay Valve
Features & Benefits
- Serves as a relay station that speeds up the application and release of the brakes
- Designed for either reservoir or frame mounting and available in two body styles
- Comes with a universal mounting bracket to easily interchange it with other Bendix relay valves
- Offers ease of servicing since its parts are interchangeable with R-14 valve parts and the inlet/exhaust valve can be replaced without the need for line removal
- Engineered using state-of-the-art technology for guaranteed efficiency even under extreme conditions
- All Bendix valves are designed to enhance and improve vehicle performance
Courtesy of Bendix – All rights reserved

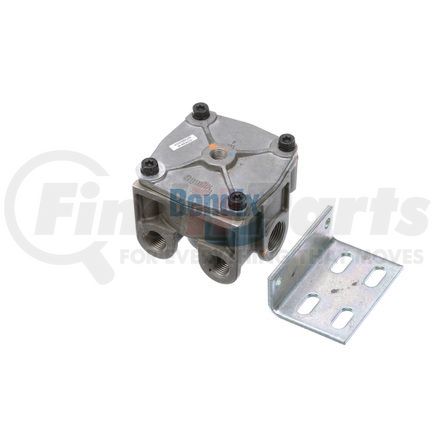

Bendix R-12® Air Brake Relay Valve
The Bendix R-12® air brake relay valve helps maintain the performance, reliability, and safety of your truck's air brake system. It is designed and tested to reflect today’s highest engineering standards and comply with all federal safety regulations.
BENDIX 104165 Specifications
Product Attributes
| New Or Remanufactured | New |
| Series | R-12® |
| Balance / Primary Service Port | Not applicable to this part |
| Body Configuration | 2 SUP / 2 DEL (H) |
| Cautionary Note(s) | Not applicable to this part |
| Control / Secondary Service Port | 1/4-18 NPT |
| Control Port Orientation (CW from Front Face) | Not applicable to this part |
| Crack Pressure | 7.5 PSI |
| Delivery Port 1 | 1/2-14 NPT |
| Delivery Port 2 | 1/2-14 NPT |
| Delivery Port 3 | Not applicable to this part |
| Delivery Port 4 | Not applicable to this part |
| Delivery Port 5 | Not applicable to this part |
| Delivery Port 6 | Not applicable to this part |
| Delivery Port 7 | Not applicable to this part |
| Delivery Port 8 | Not applicable to this part |
| Exhaust Port | Dust Shield |
| Internal Supply Passage to Cover | Not applicable to this part |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 200 AdegF (93 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | .96 IN x .40 IN Slot (4x) |
| Mounting Bracket Direction | Not applicable to this part |
| Mounting Bracket Location | Loose in Box |
| Mounting Orientation (CW from Front Face) | Not applicable to this part |
| Supply Port 1 | 3/4-14 NPT |
| Supply Port 2 | 3/4-14 NPT |
| TMC Washer | RV075 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| UPC | 04068078348697 |
| VMRS Code | 013010009 |
