(888) 312-8812 Login SignupMERITOR 05 15863 003 AY-FRT HUB

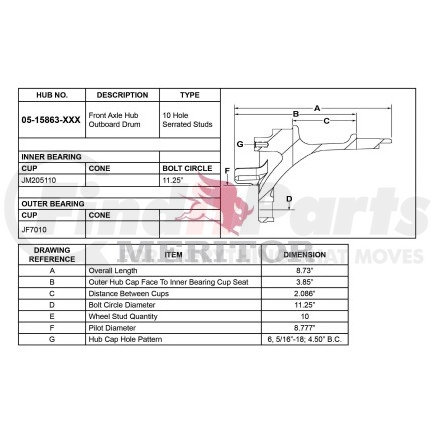

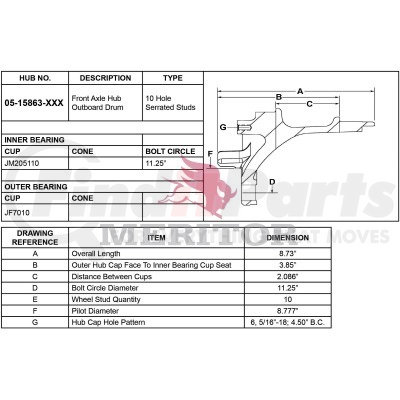

*Representative image - actual part not displayed
$1,375.75
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
MERITOR 05 15863 003 Part Description
| ABS Pilot Diameter | 5.794/5.791 in. |
| ABS Ring Number | 09-002046 |
| Axle Application | Steer |
| Axle Series | For GM |
| Base Part Number | 15863 |
| Brake Type | Drum |
| Drum Bolt Circle Diameter | 11.25 in. |
| Drum Bolt Pattern | 10 |
| Drum Bolt Size | .904/.906 in. |
| Drum Pilot Diameter | 8.778/8.775 in. |
| Flange Outer Diameter | 13.00 in. |
| Fully Dressed | No |
| GAWR (lb) | 14572 |
| Hub Cap Bolt Circle Diameter | 4.50 in. |
| Hub Cap Bolt Thread | 5/16-18 UNC-2B |
| Hub Cap Pattern | 6 |
| Hub Style | Conventional |
| Hub Type | Hub only |
| IBS to OBS | 2.106/2.067 in. |
| IBS to Outer Surface | 3.866/3.826 in. |
| Inner Bearing Surface (IBS) to Mounting Face | 5.067 in. |
| Inner Cone | Spindle Dependent |
| Inner Cup | JF7010 |
| Notes | Wheel studs included |
| Outer Cone | JM205149 |
| Outer Cup | JM205110 |
| Tone Ring | Y |
| VMRS Code | 018-001-003 |
| Wheel Pilot Diameter | 8.653/8.646 in. |
| Wheel Stud Bolt Circle Diameter | 11.25 in. |
| Wheel Stud Hole | .904/.906 in. |
| Wheel Stud Pattern | 10 |
Meritor Hydraulic Brake Hub Assembly
The Meritor hydraulic brake hub assembly is built for higher payload capacities and improved fuel economy. It is suitable for a wide range of trucks, trailers, and other commercial vehicle applications.
Features & Benefits
- Designed for weight savings and strength for increased payload and better fuel mileage
- Meets or exceeds OE specifications and federal stopping distance requirements
- Advanced machining processes ensures an optimum balanced operation
- Premium grade steel construction for superior durability over comparable aftermarket hubs
- Click here for warranty information
MERITOR 05 15863 003 Specifications
Product Attributes
| Abs Pilot Diameter | 5.794/5.791 in. |
| Abs Ring Number | 09-002046 |
| Axle Application | Steer |
| Axle Series | For GM |
| Base Part Number | 15863 |
| Brake Type | Drum |
| Brand | Meritor Genuine |
| Drum Bolt Circle Diameter | 11.25 in. |
| Drum Bolt Pattern | 10 |
| Drum Bolt Size | .904/.906 in. |
| Drum Pilot Diameter | 8.778/8.775 in. |
| Flange Outer Diameter | 13.00 in. |
| Fully Dressed | No |
| Gawr (lb) | 14572 |
| Hub Cap Bolt Circle Diameter | 4.50 in. |
| Hub Cap Bolt Thread | 5/16-18 UNC-2B |
| Hub Cap Pattern | 06 |
| Hub Style | Conventional |
| Hub Type | Hub only |
| Ibs To Obs | 2.106/2.067 in. |
| Ibs To Outer Surface | 3.866/3.826 in. |
| Inner Bearing Surface (ibs) To Mounting Face | 5.067 in. |
| INNER CONE | Spindle Dependent |
| Inner Cup | JF7010 |
| Notes | Wheel studs included |
| OUTER CONE | JM205149 |
| Outer Cup | JM205110 |
| Pallet Quantity | 12 |
| Tone Ring | Y |
| Weight | 90.00 |
| Wheel Pilot Diameter | 8.653/8.646 in. |
| Wheel Stud Bolt Circle Diameter | 11.25 in. |
| Wheel Stud Hole | .904/.906 in. |
| Wheel Stud Pattern | 10 |
MERITOR 05 15863 003 Customer Reviews
No reviews yet
Be the first to review this product!
MERITOR 05 15863 003 Manufacturer Information
Meritor®, whose roots could be traced back to 1909, is backed by over 100 years of industry experience plus a massive portfolio of products for various industries. In 1998, it made several acquisitions, including Volvo Trucks' heavy vehicle manufacturing operation in Sweden, Euclid Industries, and Lucas Varity's Heavy Vehicle Braking Systems division. Such investments solidify Meritor's position as the leading global supplier of brakes, axles, drivelines, transmissions, suspensions, tire inflations systems, and a whole lot of parts, hardware, and accessories for the automotive, truck, trailer, rail cars, bus and coach, and many other applications. Its "Run with the Bull" global brand identity further strengthens its commitment to provide the industry with durable products, unparalleled service and support, and continuous innovation.
MERITOR 05 15863 003 Questions & Answers
No questions yet
Be the first to ask a question about this product!
