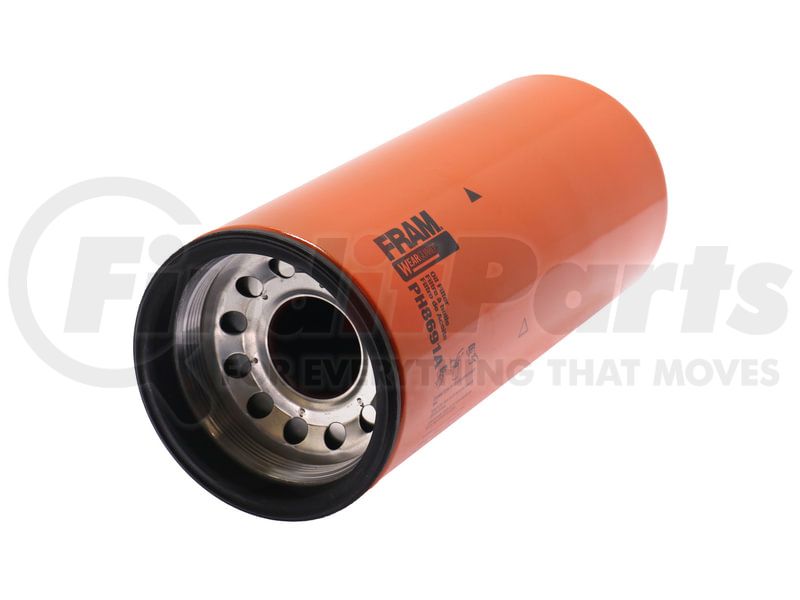

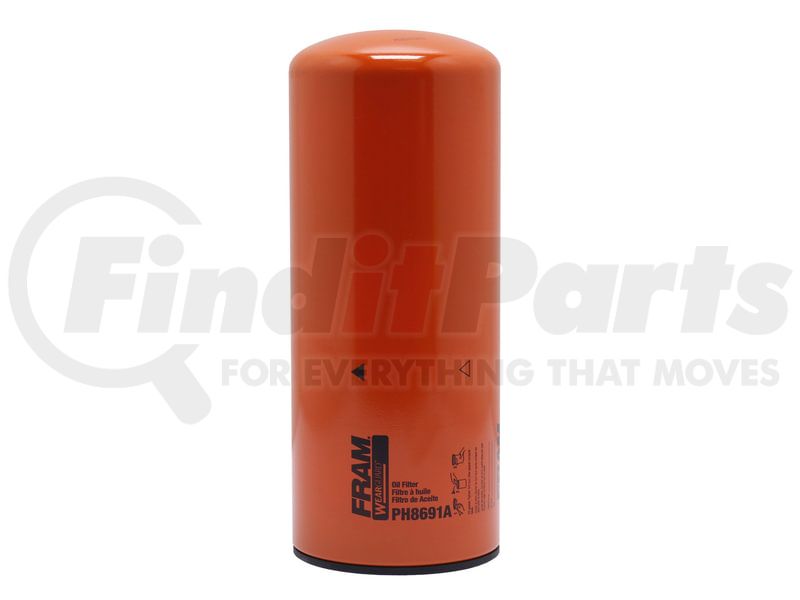

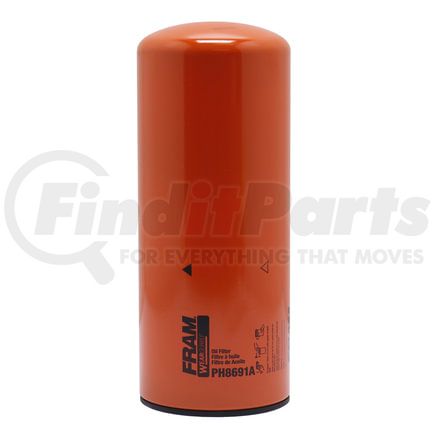

(888) 312-8812 Login SignupFRAM PH8691A Spin-on Oil Filter
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
FRAM PH8691A Part Description
FRAM PH8691A Specifications
Product Attributes
| Height | 11.790 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.520 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 3.970 IN |
| Gasket Outside Diameter | 4.680 IN |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | M95x2.5 MM |
| New Or Remanufactured | New |
| Outside Diameter | 4.680 IN |
| Reusable | No |
| Thread Size | Metric |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100538147 |
| UNSPSC | 15121501 |
FRAM PH8691A Cross References
| Brand | Part Number |
|---|---|
| ACDelco | PF1269 |
| Alliance Truck Parts | ABP/N10G-LF9001, ABPN10G-LF9001, ABPN10GLF9001 |
| Atlas-Copco | 5789-9346-00 |
| BALDWIN | BD7154, BD50000 |
| Baldwin | BD7355, BK6440, BK6464 |
| Big A | 91746 |
| Carquest | 84746, 84746XD |
| Case | 76612210, 84385571, 87408494, 8900131282 |
| Coopers | LSF5190 |
| Cummins | 2874490, 2882674, 3101869, 3406809, 4367100, 4906633 |
| Daewoo | 47400034P, 97400034P |
| Donaldson | DBL7900, ELF7900, P550949, P559000, P559581, P559589, P559600, P559609, P559617, P559622, P559626 |
| Fleetguard | LF14000NN, LF9001, LF9011, LF9018, LF9031, LF9080 |
| General Motors | 89002459 |
| Gonher | GP-9001 |
| Grove | 9414101527, 9414101645, LV50V00005P1 |
| Hastings | LF499 |
| Hyundai | 11NB70110 |
| John Deere | RE574468 |
| K&N | HP-8006 |
| Kalmar | 9239440174 |
| Komatsu | 600-211-1340, 621-654-5110 |
| LUBER-FINER | LFP9001 |
| Liebherr | 10332314 |
| Manitowoc | A047950 |
| Mann-Filter | WP12120, WP12330 |
| NAPA | 7746, 7746XD |
| PREMIUM GUARD | HG50099 |
| Purolator | L65329 |
| Sisu | 1216400571 |
| Terex | 15275439, 15501271 |
| Versatile | 86030711 |
| WIX FILTERS | 57746XD |
| Wix | 57746, 57746XD |
FRAM PH8691A Fits Vehicles
- International HX620 (2020-2022)
- International HX520 (2020-2022)
- Kenworth T700 (2012-2015)
- Kenworth T880 (2015-2022)
- Kenworth T680 (2013-2017)
- Kenworth C500 (1999-2015)
- Kenworth T660 (2008-2015)
- Kenworth K100E (2001)
- Kenworth W900 (1999-2016)
- Kenworth T800 (1999-2017)
- Kenworth T600A (1999-2007)
- Kenworth T2000 (1999-2011)
- Freightliner Argosy (1999-2003, 2006-2008, 2012)
- Freightliner Classic (2001-2002)
- Freightliner Cascadia (2009-2015)
- Freightliner Century Class (1998-2003)
- Gillig Low Floor (2003, 2005-2006)
- Advance Mixer Advance Mixer (2000-2006)
