DANA SPICER 250-4-21-1 Part Description
Manufacturer
Product Description

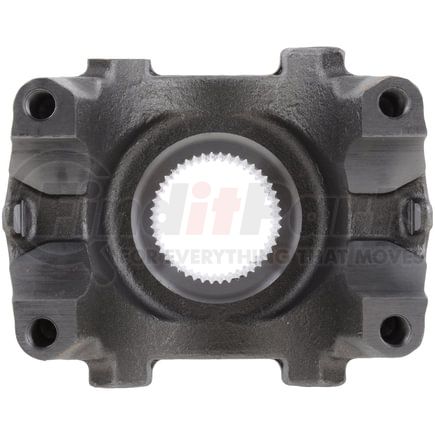

Drive Shaft End Yoke
Features & Benefits
- Uses high-grade Dana approved materials to ensure optimal quality.
- Dana designed, tested and engineered.
- Genuine OE quality. Tested and proven.
Spicer 250-4-21-1 SPL Shaft End Yoke
2504211
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
250-4-21-1
JOINT SERIES:SPL250
D DIMENSION:2.362
E DIMENSION:6.412
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.75
R HUB DIAMETER:3.344
S CENTERLINE TO END:5.75
SPLINE COUNT:46 I
SPLINE OD:2.39
NOTES:Coupling shaft yoke
2504211
PLEASE USE THE DANA ONILNE END YOKE CATALOG TO SELECT YOUR PART NUMBERS
250-4-21-1
JOINT SERIES:SPL250
D DIMENSION:2.362
E DIMENSION:6.412
YOKE STYLE:Half Round
Q LENGTH THRU HOLE:2.75
R HUB DIAMETER:3.344
S CENTERLINE TO END:5.75
SPLINE COUNT:46 I
SPLINE OD:2.39
NOTES:Coupling shaft yoke
DANA SPICER 250-4-21-1 Specifications
Product Attributes
| Series | SPL250 |
| Material | Steel |
| Spline Count | 46 |
| Type | Splined Hole |
| Assembly | N |
| Hub Diameter R | 3.344 |
| Includes Slinger/Plug | N |
| Involute Spline | I |
| Length Thru Hole Q | 2.750 |
| Outside Yoke Dimension (in) E | 6.417 |
| Yoke Bearing Dimension (in) D | 2.362 |
| Yoke Style | HR |
| Major Diameter | 2.390 |
| C/l To End Hub S | 5.750 |
| Joint Angle #1 | 25 |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8708990000 |
| UPC | 00023913249182 |
| VMRS Code | 024001003 |
DANA SPICER 250-4-21-1 Cross References
| Brand | Part Number |
|---|---|
| SP2504211 | |
| Daimler Truck North America | SP 250 4 21 1, SP 250 4 21 1HP |
| Dana Commercial Vehicle Service Parts | 2104-2504211 |
| Freightliner | SP 250 4 21 1, SP 250 4 21 1HP |
| INTERNATIONAL-NAVISTAR | 2504211 |
| International Harvester (IHC) | 2500664C1, 2504211, D2504211, D250-4-21-1, E2504211 |
| Link-Belt | 3A 25596 |
| Mack | 2104-2504211, 3947962 |
| McNeilus | 1510322 |
| Midwest | 250-4-21-1R |
| NEAPCO | N250-4-21-1 |
| Navistar | 2500664C1, 2504211, D2504211, D250-4-21-1, DS2504211, E2504211 |
| Neapco OE Series | N250-4-21-1 |
| PAI | 960055 |
| Paccar Parts | 250-4-21-1 |
| UAP | 250-4-21-1 |
| Volvo | 2104-2504211, 3947962, SP 2504211 |
| WORLD AMERICAN | 250-4-21-1R |
