(888) 312-8812 Login SignupRAYBESTOS 580403PER Raybestos Specialty - Street Performance S-Groove Brake Rotor
$124.05
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 580403PER Part Description
Manufacturer
Product Description

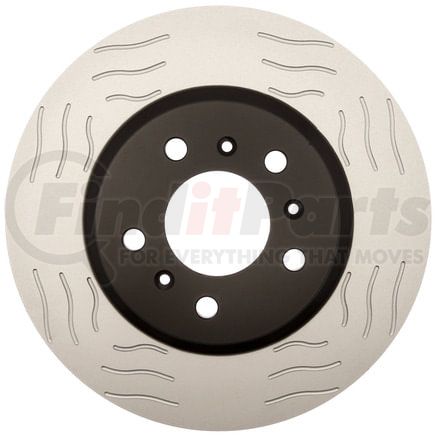

Raybestos Specialty - Street Performance S-Groove Brake Rotor
Application Summary
2013-2006 Chevrolet Impala Front, 2011-2006 Buick Lucerne Front, 2016-2014 Chevrolet Impala Limited Front, 2007-2006 Chevrolet Monte Carlo Front
RAYBESTOS 580403PER Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.7 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.126 IN |
| Discard Thickness | 28.6 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.24 IN |
| Inside Diameter | 183.9 MM |
| Mounting Bolt Hole Circle Diameter | 4.528 IN |
| Mounting Bolt Hole Circle Diameter | 115 MM |
| Mounting Bolt Hole Diameter | 0.559 IN |
| Mounting Bolt Hole Diameter | 14.2 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.181 IN |
| Nominal Thickness | 30 MM |
| Outside Diameter | 11.928 IN |
| Outside Diameter | 302.95 MM |
| Overall Height | 2.045 IN |
| Overall Height | 51.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Material | Cast Iron |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352827772 |
RAYBESTOS 580403PER Cross References
| Brand | Part Number |
|---|---|
| ACDELCO | 177-0967 |
| ADVANCE AUTO PARTS | YH145654 |
| API | 1407-80286 |
| AUTOXTRA | AX900652 |
| Advance Auto Parts | G12542SD, N1000390591APO, YH145654C, YH145654P |
| AutoZone | 41124, 55126, 55126DG, 55126DL |
| Autoxtra | AX55126, AX55126P |
| BENDIX | 145654, PRT5654 |
| BOSCH | 25010632 |
| BRAKEBEST | 81-126347, BD126347 |
| BrakeBest | 25010632, 580403, 580403FZN, 580403P, 580403PER, 580403R, 580403RGS |
| Brembo | 09.B535.10, 09.B535.11 |
| CENTRIC | 120.62098, 121.62098 |
| Casting Numbers | 18083321, 211765-C, 326230 |
| Centric Parts | 120.62098, 121.62098, 120.62098CRY, 126.62098CSL, 126.62098CSR, 126.62098SL, 126.62098SR, 127.62098CL, 127.62098CR, 127.62098L, 127.62098R, 128.62098CL, 128.62098CR, 128.62098L, 128.62098R, 226.62098SL, 226.62098SR, 227.62098L, 227.62098R, 320.62098, 320.62098F, 321.62098 |
| DURA CORP | BR55126, BR900652 |
| Dura Corp | BR5512602 |
| DuraGo | BR55126, BR55126-02 |
| GM | 15251335, 20879454, 25955931 |
| General Motors | 15251335, 20879454, 25955931, 23127613, 25862792 |
| Monroe Brakes | BD126347 |
| Newtek Automotive USA | 55126 |
| Omnicraft | QBRR188 |
| PERFORMANCE FRICTION | 301.052.01 |
| Parts Master | 126347 |
| PowerStop | AR82110EVC, PSR6620584 |
| QUALITY BRAND | Q4233 |
| Qualis | 55126 |
| TopNotch | TN580403GEO |
| UAP | 55126 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X51758 |
| WABCO - Archived | PS126347 |
| WAGNER BRAKE | BD126347 |
| WORLDPAC | 1407-80286, 1427-731829 |
| Wagner Brake | BD126347E, BD180846E |
| Winhere | 6620584 |
RAYBESTOS 580403PER Fits Vehicles
- Chevrolet Impala Limited (2014-2016)
- Buick Lucerne (2006-2011)
- Chevrolet Monte Carlo (2006-2007)
- Chevrolet Impala (2006-2013)
