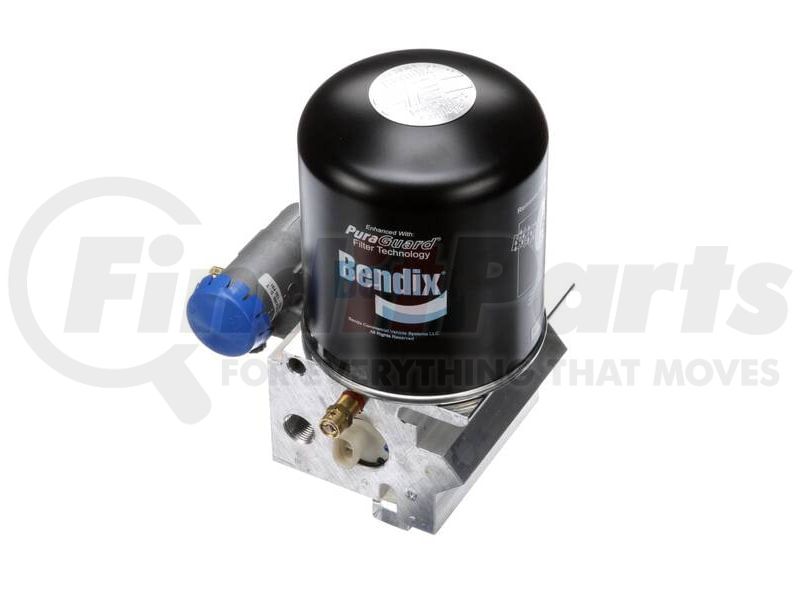

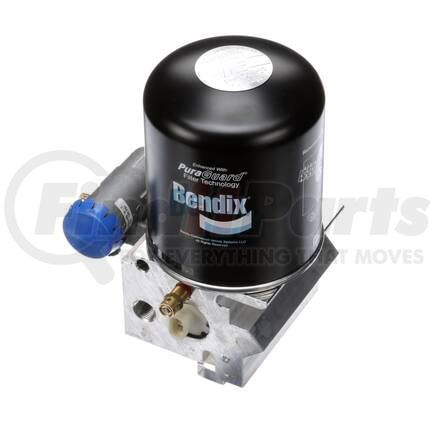

BENDIX K042436 Part Description
Manufacturer
Product Description
Air Dryer
Features & Benefits
- Dryer-level replacement scope addresses faults beyond simple cartridge renewal
- Purge and control hardware remain within the complete dryer service scope
- Removes water from compressor discharge before air reaches storage reservoirs
- Lets the shop replace the coordinated treatment unit when internal operating hardware is involved
Bendix Air Brake Dryer
When moisture-control problems involve more than exhausted desiccant, the Bendix Air Brake Dryer gives the shop a complete assembly for broader charging-system service. The unit combines the treatment body with the purge and control hardware that manage compressor discharge before air reaches the reservoirs. This broader scope is useful when inspection points to operating hardware inside the dryer, allowing the shop to address the air-treatment assembly as one coordinated unit. Once inspection points beyond the cartridge, the Bendix K042436 lets the shop renew the complete air-treatment assembly, including the purge and control hardware tied to dryer operation.
BENDIX K042436 Specifications
Product Attributes
| Air Dryer Type | Stand-Alone |
| AUX 1 Delivery Opening Pressure | Not applicable to this part |
| AUX 1 Delivery Port 1 | Not applicable to this part |
| AUX 1 Delivery Port 2 | Not applicable to this part |
| AUX 1 Delivery Port 3 | Not applicable to this part |
| AUX 1 Delivery Port 4 | Not applicable to this part |
| AUX 2 Delivery Opening Pressure | Not applicable to this part |
| AUX 2 Delivery Port | Not applicable to this part |
| Cartridge Thread | M39 x 1.5-6H RH |
| Cartridge Type | PuraGuard (Coalescing) |
| Cautionary Note(s) | Pressure protection valve configs are not interchangeable. |
| Clearance to Remove Cartridge | 1.00 IN |
| Compressor Unloader Port | Not applicable to this part |
| Cut-In Pressure | 110 PSI |
| Cut-Out Pressure | 130 PSI |
| Governor Included | Yes |
| Governor Reservoir Port | 1/8-27 NPT (Plugged) |
| Governor Type | Non-Adjustable |
| Governor Unloader Port | 1/8-27 NPT x 1/4 PTC (Straight) |
| Heater / Thermostat Rating | 12V / 90W |
| Heater Connector Color | White |
| Heater Connector Type | Metri-Pack 280 Series 2-Way Sealed Connector (Male) |
| Market Indicator | Aftermarket New |
| Maximum Inlet Temperature | 160 AdegF (71 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | Mount to Purge Reservoir (Not Included) |
| Number of Compartments | Not applicable to this part |
| Pressure Protection Valve Configuration | 2 in Series |
| Pressure Range | Not applicable to this part |
| PRI Delivery Opening Pressure | 103 PSI |
| PRI Delivery Port 21 | 1/4-18 NPT x 3/8 PTC (Straight) |
| Purge Exhaust Port | Standard |
| Purge Valve Type | Hard Seat |
| Purge Volume | Not applicable to this part |
| Remote Charge / Fill Port (through Desiccant) | Not applicable to this part |
| Remote Charge / Fill Port 1 (after Desiccant) | Not applicable to this part |
| Remote Charge / Fill Port 2 (after Desiccant) | Not applicable to this part |
| Reservoir Diameter | Not applicable to this part |
| Reservoir Fill Type | Not applicable to this part |
| Reservoir Length | Not applicable to this part |
| Reservoir Material | Not applicable to this part |
| Safety Valve Opening Pressure | 153 PSI |
| SEC Delivery Opening Pressure | Not applicable to this part |
| SEC Delivery Port 22 | 1/4-18 NPT (Plugged) |
| Supply Port | 1/2-14 NPT |
Additional Information
| Country of Origin (Primary) | MX |
| UPC | 04068078217184 |
| VMRS Code | 013010252 |
BENDIX K042436 Cross References
| Brand | Part Number |
|---|---|
| BWK042436 | |
| N/A | 109495 |
