RAYBESTOS 9848 Part Description
Manufacturer
Product Description

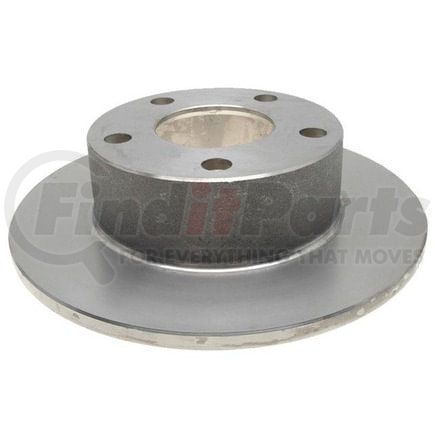

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 9848 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.678 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.315 IN |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 0.6 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Outside Diameter | 9.645 IN |
| Overall Height | 2.34 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 68 MM |
| Discard Thickness | 8 MM |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 15.25 MM |
| Nominal Thickness | 10 MM |
| Outside Diameter | 245 MM |
| Overall Height | 59.45 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999080493 |
RAYBESTOS 9848 Cross References
| Brand | Part Number |
|---|---|
| ATE BRAKE PRODUCTS | 410154 |
| Advance Auto Parts | 141304, YH141304 |
| American Remanufactured | 89-96010 |
| Audi | 437615601 |
| AutoZone | 3433, 3433DG |
| Autospecialty | EBR099, EBR099E |
| Axxis | 085-6320 |
| Beck/Arnley | 083-2006 |
| Bendix | 141304 |
| Bosch | 14010034 |
| Brake Headquarters | BR03051 |
| BrakeBest | 14010034, 9848, 9848R, 9848RGS |
| Brembo | 08.4874.20, 25113 |
| California Drum & Rotor | 60658 |
| Casting Numbers | 210322-C, 326081 |
| Centric Parts | 120.33014, 121.33014 |
| Century | 9243 |
| Delphi | RB327 |
| Dura Corp | BR3433 |
| EIS Brakes | D17312 |
| Eurorotor | AU236 |
| GREN | 410401 |
| Girling | GR246 |
| ITM Engine Components | 1602103 |
| Interbrakes | AD101P |
| Midas | BR1382, BR1599 |
| Mighty Distributing System | 3433 |
| Newtek Automotive USA | 3433 |
| Qualis | 3433 |
| Qualitee International | 64-11-120 |
| Quality Brand | 3433, Q045 |
| Quinton Hazell | BDC3633 |
| Rockhill | 3433 |
| TRW | 1542 |
| TruStar | 411120, R11120 |
| UAP | 3433 |
| Universal | 117330, 117501 |
| VAICO | V1040034 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50635 |
| WORLDPAC | 1407-78246 |
| Wagner Brake | BD60658 |
| Winhere | YH1246 |
