RAYBESTOS 96040 Part Description
Manufacturer
Product Description

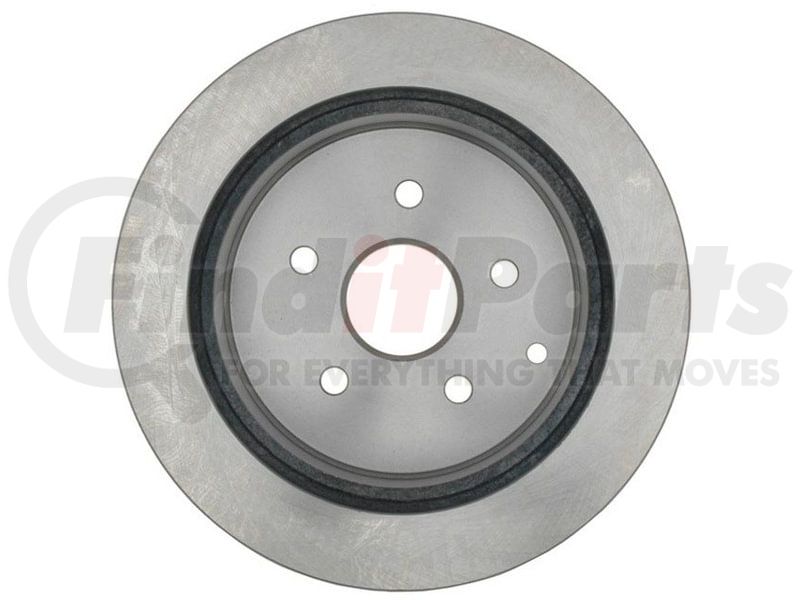

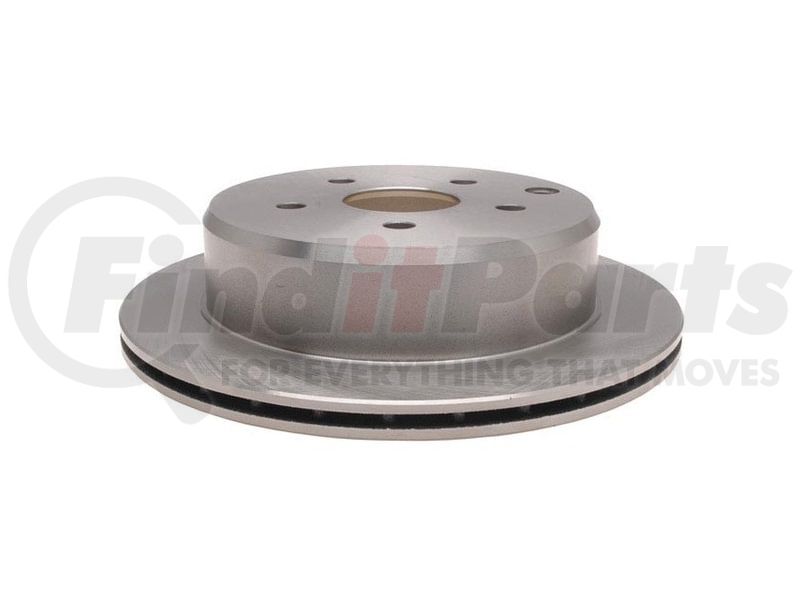

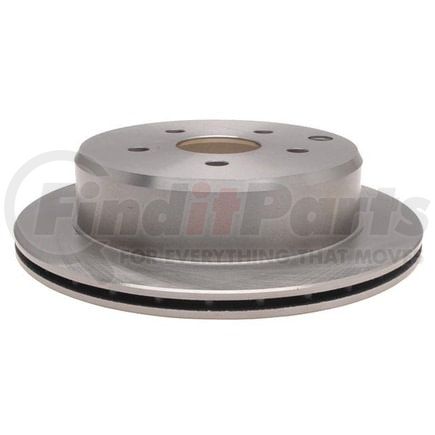

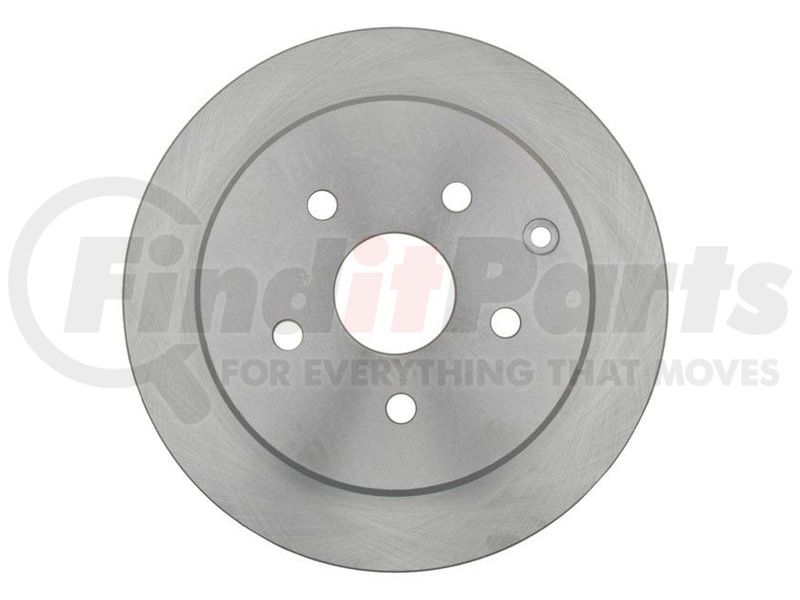

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 96040 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.363 IN |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.669 IN |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Diameter | 0.571 IN |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.71 IN |
| Outside Diameter | 11.465 IN |
| Overall Height | 2.685 IN |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 60 MM |
| Discard Thickness | 17 MM |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 14.5 MM |
| Nominal Thickness | 18.05 MM |
| Outside Diameter | 291.2 MM |
| Overall Height | 68.2 MM |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999233929 |
RAYBESTOS 96040 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141411, YH141411 |
| American Remanufactured | 789-22040, 89-22040 |
| AutoZone | 31033, 31033DG |
| Autospecialty | JBR370, JBR370E |
| Beck/Arnley | 080-2271, 083-2271 |
| Bendix | 141411 |
| Brake Headquarters | BR06230 |
| Brake Pro | 4618604 |
| BrakeBest | 81-61806, 96040, 96040R, 96040RGS, BD61806 |
| Brembo | 09.6915.10, 25472 |
| CENTRIC | 125.44041, 320.44041, 121.44041 |
| California Drum & Rotor | 61806 |
| Casting Numbers | 210471-C, 325357, 5181 |
| Centric Parts | 120.44041, 121.44041, 125.44041, 125.44041CRY, 126.44041CSL, 126.44041CSR, 126.44041SL, 126.44041SR, 127.44041CL, 127.44041CR, 127.44041L, 127.44041R, 128.44041L, 128.44041R, 320.44041 |
| Century | 9348 |
| Continental-ContiTech | CW18720 |
| Delphi | RB459 |
| Dura Corp | BR31157 |
| DuraGo | BR31033, BR31157 |
| EIS Brakes | D17253, D17553 |
| Eurorotor | TO660 |
| GREN | 16802, 931402 |
| Guardian | 52-61806 |
| ITM Engine Components | 1601547 |
| MAGMA PRODUCTS | PSR565135 |
| MCI | 3890 |
| Midas | BR1582 |
| Mighty Distributing System | 31033, 31157 |
| Monroe Brakes | BD61806 |
| NAPA BRAKES | TSR716, TSR9109 |
| Newtek Automotive USA | 31033, 31157 |
| PRONTO | BR31157 |
| Parts Master | P61806 |
| Promax | 14-31033, 14-31157 |
| Qualis | 31033 |
| Qualitee International | 64-79-640 |
| Quality Brand | 31033, Q023 |
| Quinton Hazell | BDC3925 |
| Roadmates | 526219 |
| Standard Rotors and Drums | 31033, 31157 |
| TRW | DF1654S, DF4017S |
| Toyota | 4243114100, 4243114110, 4243114120 |
| TruStar | 479640, R79640 |
| UAP | 31033 |
| Universal | 107331, 107857 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50745 |
| Vera | 3405201 |
| WAGNER | BD61806 |
| WORLDPAC | 1427-719971 |
| Wagner Brake | BD61806, SB96040 |
| Winhere | 442199, YH2199, YH2348 |
