CENTRIC 320.44041 - GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemical which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

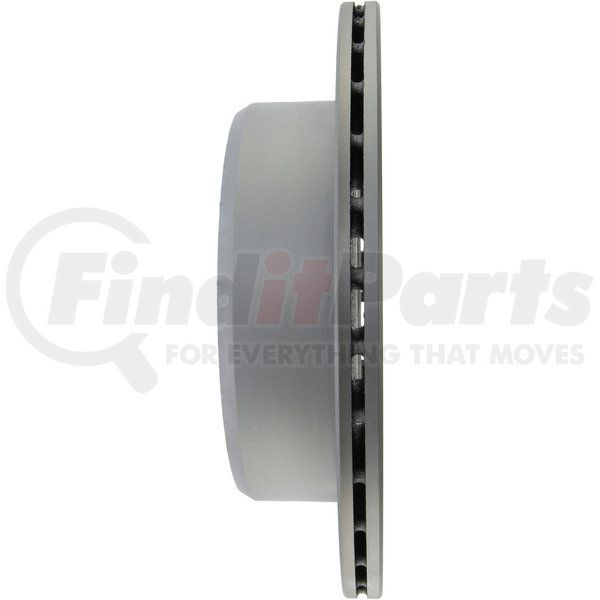

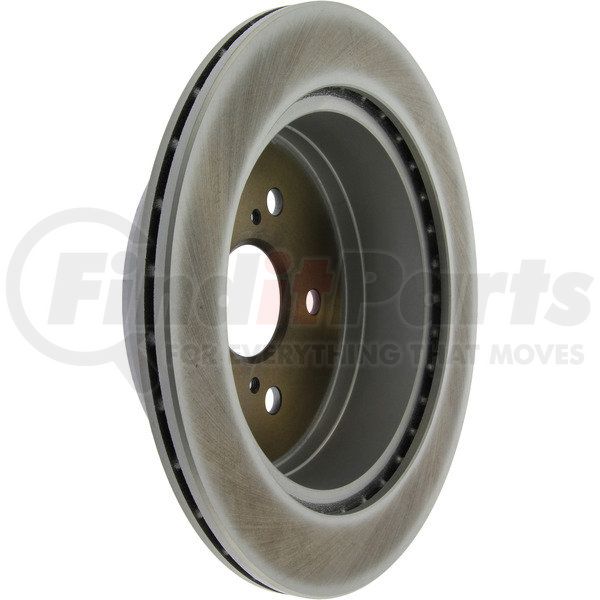

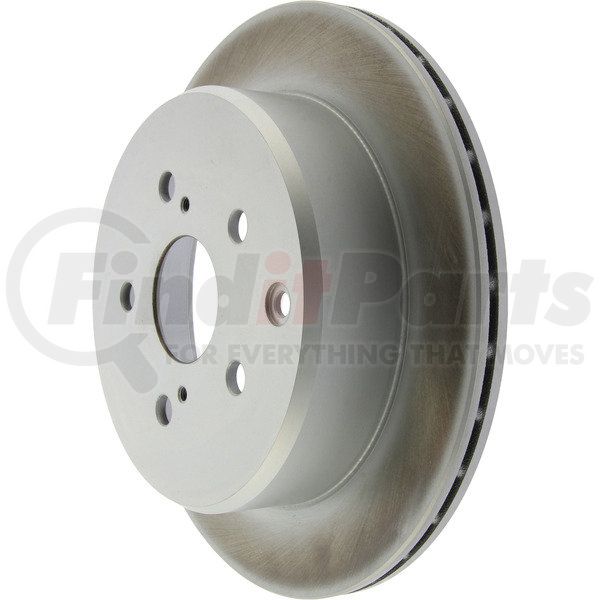

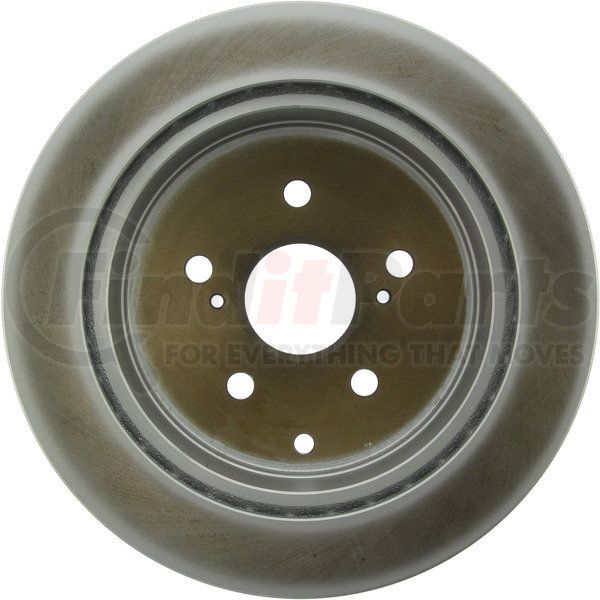

GCX Rotor with Partial Coating
Application Summary
1991 - 1997 Toyota Previa, 1986 - 1992 Toyota Supra
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
C-Tek; Centric; Standard brake rotor; brake rotor; break rotor; rotors; rotor
Product Attributes
| Discard Thickness | 0.669 IN |
| Discard Thickness | 17.00 MM |
| Nominal Thickness | 0.709 IN |
| Nominal Thickness | 18.00 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Outside Diameter | 11.457 IN |
| Outside Diameter | 291.00 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 7.480 IN |
| Nominal Drum Diameter | 190.00 MM |
| Center Hole Diameter | 2.366 IN |
| Center Hole Diameter | 60.10 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Mounting Bolt Hole Circle Diameter | 114.30 MM |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 0.571 IN |
| Stud/Lug Hole Diameter | 14.50 MM |
| Disc Mounting [cntrc] | Floating / DIH |
| Height | 68.60 |
| Hub Hole/Whl Reg [cntrc] | 60.1 MM |
| Max PB Drum Diameter [cntrc] | 7.520 IN |
| Max PB Drum Diameter [cntrc] | 191.000 MM |
| Misc Holes [cntrc] | 3 |
| Solid / Vented | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] | 5.910 KG |
| Weight [cntrc] | 13.000 LB |
| Disc Mounting | Floating / DIH |
| Hub Hole Diameter | 60.1 MM |
| Maximum Drum Diameter | 7.520 IN |
| Maximum Drum Diameter | 191.000 MM |
| Misc Holes | 3 |
| Vane Style | Straight |
| Weight | 5.910 KG |
| Weight | 13.000 LB |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| UPC | 00889590389388 |
Part Interchanges
CENTRIC 320.44041 Cross Reference
We have 2 alternatives for the 320.44041 by CENTRIC:
