RAYBESTOS 9278 Part Description
Manufacturer
Product Description

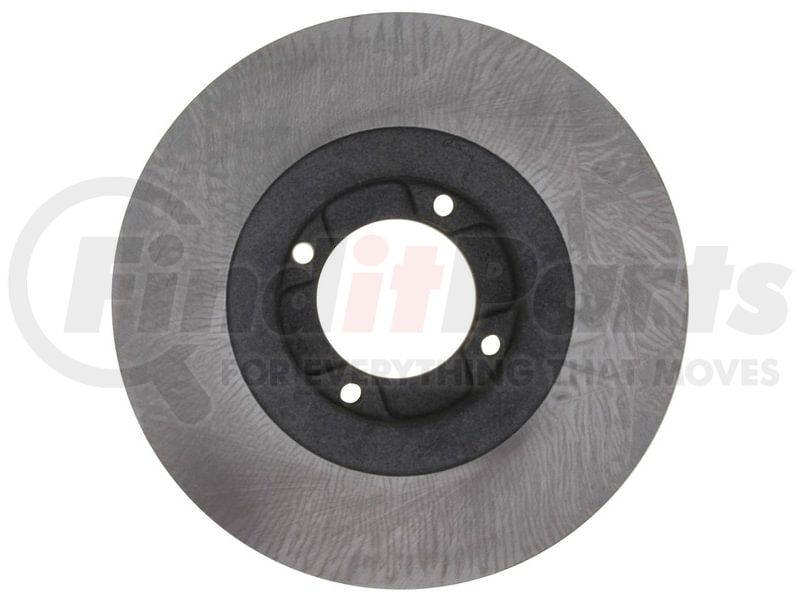

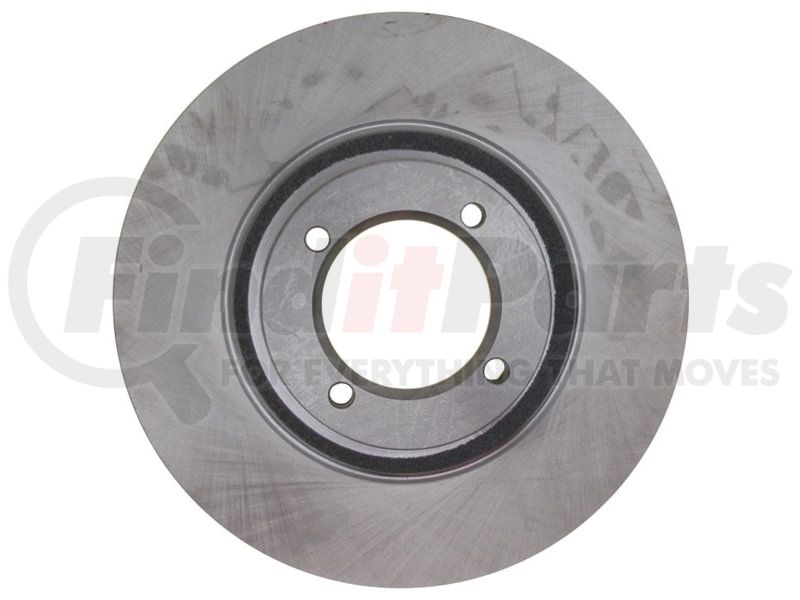

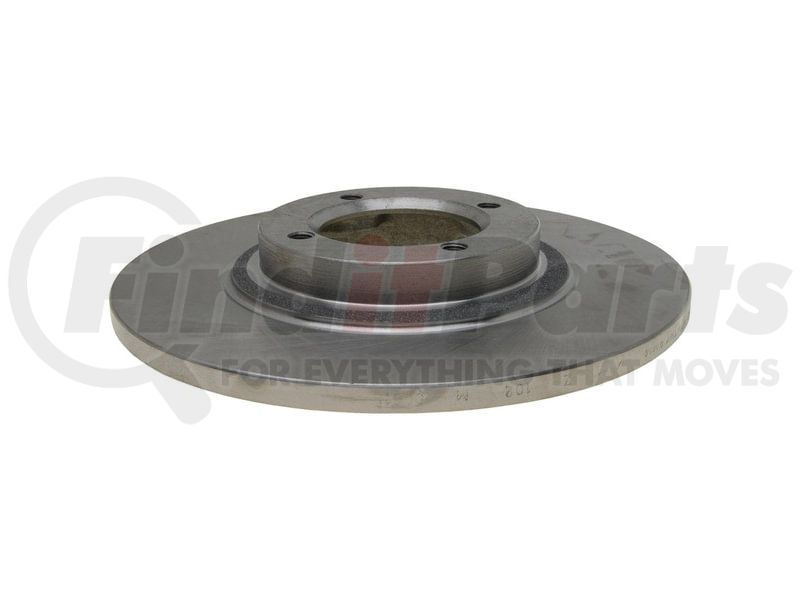

Raybestos Specialty - Street Performance Brake Rotor
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
Raybestos Specialty - Street Performance Brake Rotor
RAYBESTOS 9278 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.52 IN |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.358 IN |
| Mounting Bolt Hole Circle Diameter | 3.307 IN |
| Mounting Bolt Hole Diameter | 3.307 IN |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.394 IN |
| Outside Diameter | 8.9 IN |
| Overall Height | 1.22 IN |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Center Hole Diameter | 64 MM |
| Discard Thickness | 9.1 MM |
| Mounting Bolt Hole Circle Diameter | 84 MM |
| Mounting Bolt Hole Diameter | 84 MM |
| Nominal Thickness | 10 MM |
| Outside Diameter | 226.05 MM |
| Overall Height | 31 MM |
Additional Information
| Country of Origin (Primary) | JP |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999080080 |
RAYBESTOS 9278 Cross References
| Brand | Part Number |
|---|---|
| Advance Auto Parts | 141239, 831961, YH141239 |
| American Remanufactured | 789-22004, 89-22004 |
| AutoZone | 3193DG |
| Autospecialty | JBR139, JBR139E |
| Autoxtra | 60578, AX3193 |
| Axxis | 085-6280 |
| Beck/Arnley | 083-1961 |
| Bendix | 141239 |
| Brake Headquarters | BR06219 |
| Brake Pro | 4619278 |
| BrakeBest | 9278, 9278R, 9278RGS |
| Brembo | 08.4415.10, 25094 |
| CENTRIC | 121.44004 |
| CEW | 1174005 |
| California Drum & Rotor | 60578 |
| Casting Numbers | 210820-C, 326068 |
| Centric Parts | 120.44004, 121.44004, 227.44004L, 227.44004R |
| Century | 9278 |
| Dayton Walther | D7267 |
| Dura Corp | BR3193 |
| DuraGo | BR3193 |
| EIS Brakes | D9278 |
| Eurorotor | TO627 |
| Fratelli Poletti | 92YC, 93YC |
| GREN | 11501 |
| Girling | GR645 |
| ITM Engine Components | 1601508 |
| Interbrakes | TY031P |
| Lazorlite | L73-1323 |
| MCI | 3997 |
| Maremont | 7939278 |
| Midas | BR1373 |
| Mighty Distributing System | 3193 |
| Mountain Off-Road Enterprises | TR16 |
| Newtek Automotive USA | 3193 |
| Norrbit | 901-42 |
| Qualis | 3193 |
| Qualitee International | 64-79-160 |
| Quality Brand | 3193 |
| Quinton Hazell | BDC3334 |
| Roadmates | 526547 |
| Rockhill | 3193 |
| Sanyo | TR16 |
| Standard Rotors and Drums | 3193 |
| Teknomac | 11269 |
| Toyota | 4351210050 |
| Transparts | BR0703 |
| TruStar | 479160, R79160 |
| UAP | 3193 |
| Universal | 107930 |
| VIPAR - Vehicle Indusrty Parts & Manufacturing | X50337 |
| Vera | 3402094 |
| WAGNER | BD60578 |
| Wagner Brake | BD60578 |
| Winhere | YH1315 |
