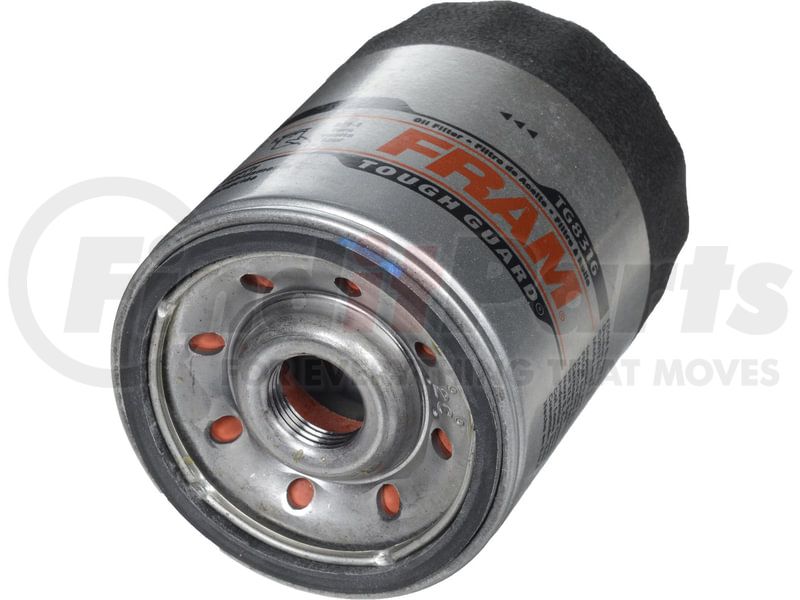

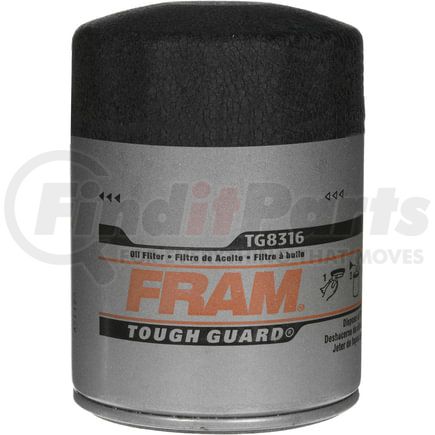

FRAM TG8316 - Spin-on Oil Filter
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
FRAM part description
Product Description
FRAM, TG8316, Oil Filter
Features & Benefits
- Proven protection for up to 15,000 miles (24,000 kilometers)
- Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
- SureGrip® technology for easy install and removal
- Synthetic blend media provides 99% dirt holding capacity
- Silicone anti-drain back valve helps ensure safe engine start up
Spin-on Oil Filter
Product Attributes
| Filter Media Material | Cellulose/Synthetic Blend |
| Height | 4.063 IN |
| Anti-Drain Back Valve | Yes |
| 522 | 14 PS |
| Bypass Relief Valve | Yes |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.078 IN |
| Housing Color | Silver |
| Non Slip Grip | Yes |
| Torque Nut | No |
| Gasket Inside Diameter | 2.406 IN |
| Gasket Outside Diameter | 2.765 IN |
| Attachment Type | Spin-On |
| Gasket Type | Base |
| Grade | Premium |
| Grade Type | Premium |
| Inlet Type | Threaded |
| Inside Thread Diameter | 3/4-16 IN |
| Meets Or Exceeds Original Equipment Manufacturer Specifications | Yes |
| New Or Remanufactured | New |
| Outside Diameter | 2.984 IN |
| Replacable Filter | Yes |
| Reusable | No |
| Thread Size | Standard |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100039910 |
| UNSPSC | 15121501 |
Part Interchanges
- Chrysler 5003558AA
- Ford F8CZ-6731-AA
- Mazda YF09-14-302
- Champ PH2005
- Bosch 3422
- Carquest Premium Filters 85315
- Motorcraft FL-2005
- Casite Filters CF483
- Hastings CF483
- Mighty Distributing System M5230
- Pennzoil PZ-51
- Promotive PH5230
- Group 7 V5230
- Pro-Tec 169
- ACDelco PF2221
- Kralinator L315
- Purolator L25230
- Quaker State QS25230
- Wix 51315
- Auto Extra 61851315
- Firestone TF5230
- Baldwin B1416
- LUBER-FINER PH2005
- Professionals Choice - Archived Q5230
- Carquest 85315
- Trust PH2005
- VIPER 8316
- Amsoil EAO35
- Mahle OC1045
- Shell - Archived SH42
- Mann-Filter ML 1022
- Deutsch D494
- Factory Motor Parts R1315
- Warner PH2005
- Ford 978M-6714-C3A
- Champion COS8316
- Parts Plus PH2005
- Mobil MO5230
- STP Filters S8316
- Kendall K37
- Mobil 1 M1-211
- Installer Edge AL8316
- Jiffy Lube HL8316
- Mileguard MO8316
- Pronto PO-195
- MicroGard MGL51315
- Pentius PLB8316
- Phillips 66 PO1315
- Pit Stop PSL37
- Service Pro M5230
- Silverline 21315
- Performax PO-51
- Unocal 76 PF1315
- Driveworks DW-5230
- Valvoline VO-118
- Defense Filters DL8316
- STP S8316
- Parts Master 61315
- Premium Guard PG5230
- Champion Filters COS8316
- MAHLE OC1045
- Prime Guard Filters - Archived POF5230
- NAPA Silver Filters 31315
- NAPA Platinum Filters 41315
- NAPA 1315
- Warner Filters PH2005
- Super Tech Filters ST3600
- Havoline T-42
- PureZone 8-51315
- SUPERTECH ST3600
- PurolatorONE PL25230
- FVP R1315
- Tough Guard TG8316
- FRAM Tough Guard TG8316
- FRAM Core COR3614ACC
- FRAM Drive FD8316
- FRAM Pro FP3614BP
- Parts Master 61315BP
- Bosch 72143WS
- Motorcraft FL-400
- Motorcraft FL-400S
- Motorcraft FL-801
- Hastings LF483
- Hastings LF483F
- Mobil 1 M1-211A
- MicroGard MGL8316
- Mahle OC247
- MAHLE OC247
- Motorcraft PLB8316
- Pro-Tec PO-195
- Carquest R85315
- Carquest R85315MP
- Valvoline VO-118BP
- Valvoline VO-59
Fits Vehicles
- Suzuki Aerio (2002)
- Mazda B3000 (2006)
- Jeep Liberty (2005-2006)
- Mazda Tribute (2001-2004)
- Mercury Mystique (1998-2000)
- Mercury Cougar (1999-2002)
- Ford Focus (2000-2004)
- Ford Escape (2001-2004)
- Ford Escort (1998-2003)
- Ford Contour (1997-2000)
