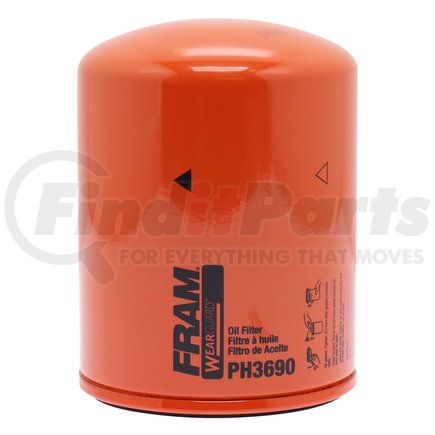

FRAM PH3690 - Spin-on Oil Filter
$3549
MSRP: $49.77
Save: $14.28
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
FRAM part description
Product Description
FRAM, PH3690, HD Oil Filter
Spin-on Oil Filter
Product Attributes
| Height | 6.290 IN |
| Gasket Or Seal Included | Yes |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Type | Spin-On Canister |
| Gasket Thickness | 0.270 IN |
| Housing Color | Orange |
| Non Slip Grip | No |
| Torque Nut | No |
| Gasket Inside Diameter | 3.850 IN |
| Gasket Outside Diameter | 4.330 IN |
| Drain Plug Included | No |
| Gasket Type | Base |
| Grade Type | Regular |
| Inlet Type | Threaded |
| Inside Thread Diameter | 1-12 IN |
| New Or Remanufactured | New |
| Outside Diameter | 4.660 IN |
| Reusable | No |
| Thread Size | Standard |
| Universal Or Specific Fit | Specific |
| Universal Or Specific Fit | Specific |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8421230000 |
| Warranty Special | See Rep |
| Warranty Special UOM | SR |
| Warranty Time | 30 |
| Warranty Time UOM | DA |
| UPC | 00009100422170 |
| UNSPSC | 15121501 |
Part Interchanges
- Donaldson P550947
- Motorcraft FL-790
- Hastings B105
- ACDelco PF2138
- Kralinator L212
- Purolator L30279
- Wix 51810
- Big A 92810
- Baldwin B105
- LUBER-FINER LFP2535
- Carquest 85810
- Caterpillar 3I-1223
- Fleetguard LF3333SC
- Fleetrite LFR-83333SC
- Franklin Equipment 1505770
- General Motors 15587369
- Hino 15607-1590
- Champion HO514
- TCM Z-1-13240-062-0
- Timberjack 411274
- Detroit Diesel 23518525
- NAPA 1810
- ACDelco PF911D
- ACDelco PF947
- Baldwin B404
- Baldwin BK6537
- LUBER-FINER LFP947
- Fleetguard LF3541
- General Motors 23518525
- General Motors 25011106
- General Motors 25011107
- General Motors 25011111
- Hino 15607-1670
- Hino 15607-1671
- Hino 15607-1750
- Hino 15607-1780
- Hino 15607-1841
- Timberjack 841127400
FRAM PH3690 Cross Reference
We have 9 alternatives for the PH3690 by FRAM:
Fits Vehicles
- Suzuki Aerio (2002)
- Hino FA15 (1992)
- Hino FA1415 (1993-1997)
- Hino FA14 (1989-1991)
- Hino FB15 (1992)
- Hino FB14 (1987-1991)
- Hino FB1715 (1993-1997)
