ICON K53291 Part Description
Manufacturer
Product Description

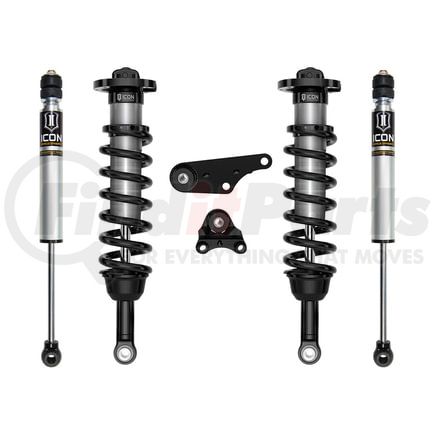

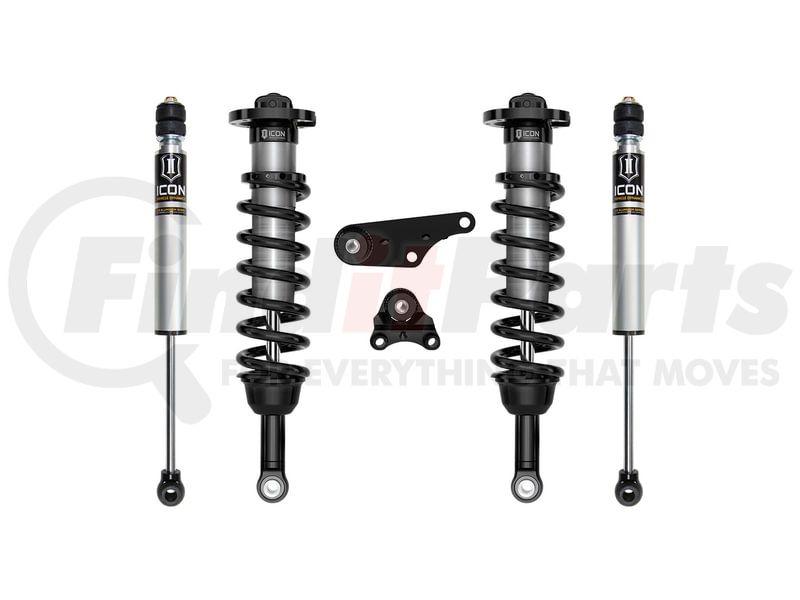

24-25 TACOMA 1.25-3" STAGE 1 SUSPENSION SYSTEM
Features & Benefits
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- Increased wheel travel and improved ride quality over stock
- Front differential drop provides better maximum operating angle for CV joints and maximizes available wheel travel on 4WD models
- Adjustable coilovers provide 1.25-3" front lift height over stock
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- ICON engineered coil springs
- FK Rod End bearings for extended longevity and minimal deflection
- 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
OEM Wheels & Tires Fitment: Yes
24 TACOMA 1.25-3' STAGE 1 SUSPENSIO
ICON K53291 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-on Part | 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5) |
| Adjustable Compression | No |
| Adjustable Control Arm | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| California Prop 65 Warning | Yes |
| Coil Quantity Front | 2 |
| Coils Quantity Front | 2 |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 3 IN |
| Maximum Lift Front | 3 IN |
| Minimum Lift Front | 1.25 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required) |
| Recommended Aftermarket Wheels | ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Title | ICON 2024-2025 Toyota Tacoma 1.25-3" Lift, Stage 1 Suspension System |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers; Limited Lifetime-Coil Springs, Differential Drop Brackets; Excludes Wearable Items |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103428925 |
ICON K53291 Fits Vehicles
- Toyota Tacoma (2024-2025)
