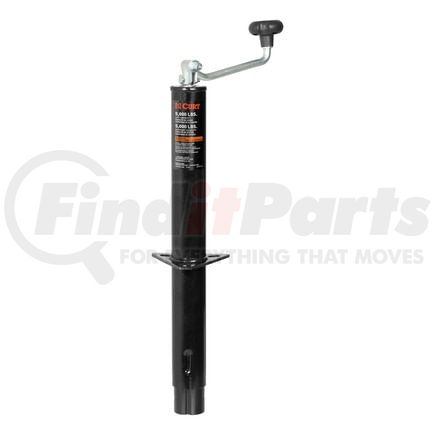

(888) 312-8812 Login SignupCURT MANUFACTURING 25007 A-Frame Trailer Jack with Top Handle (5;000 lbs; 15in. Travel)
Tap to view 4 more
$5049
Limited availability at this price!
In Stock
Get as soon as Wednesday, Oct 7
CURT MANUFACTURING 25007 Part Description
Manufacturer
Product Description
A-Frame Trailer Jack with Top Handle (5;000 lbs; 15in. Travel)
Features & Benefits
- Designed To Be Mounted On An A-Frame Trailer Tongue
- Rated For 5000 lbs. Support Capacity And 3000 lbs. Lift Capacity
- Rated for 5,000 lbs. support capacity and 5,000 lbs. lift capacity
- Top-Wind Claw Handle Easily Raises Or Lowers Trailer Coupler
- Weld-on pipe-mount accepts a 9/16" pull-pin

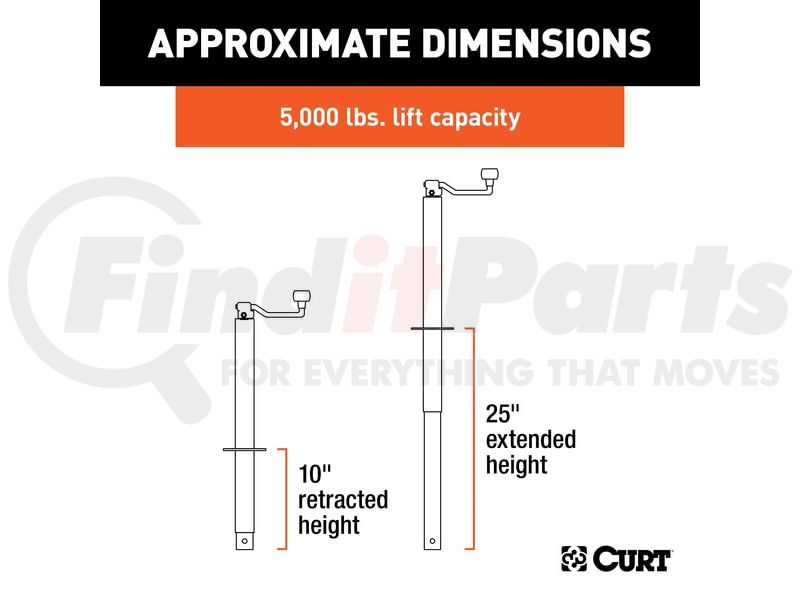

- 15 In. Of Vertical Travel Accommodate Multiple Ball Heights
- 15" of vertical travel accommodate multiple ball heights
- Swivel bracket allows jack to fully swing up and out of the way for travel
- Can Bolted Or Welded On [Hardware Not Included]
- Can bolted or welded on (hardware not included)
- Pull-pin keeps jack securely locked in place
- Limited Lifetime Warranty [One-year Finish/One-year Parts]
- Limited lifetime warranty (one-year finish, one-year parts)
- 10" of vertical travel accommodate multiple ball heights
Designed to be mounted on an A-frame trailer tongue
A-Frame Trailer Jack with Top Handle (5;000 lbs; 15in. Travel)
CURT MANUFACTURING 25007 Specifications
Product Attributes
| WARNING CA Proposition 65 | Yes |
| Box Height In Inches - Xa | 10 |
| Box Length In Inches - Xa | 24 |
| Box Width In Inches - Xa | 10 |
| Capacity | 5,000 LB |
| Container Cases Qty - XA | 20 |
| Container Load Type - XA | FLOOR |
| Container Pallet Qty - XA | 20 |
| Container Type - XA | 20GP |
| Container Unit Qty - XA | 3000 |
| Container Volume Cubic Feet - XA | 0.00000 |
| Container Volume Cubic Meter - XA | 0.00000 |
| Container Weight KG - XA | 0 |
| Container Weight Lbs - XA | 34080 |
| Finish - Xa | BLACK POWDER COAT |
| Item Class - Xa | OBS |
| Item Height - Xa | 0.000 |
| Item Length - Xa | 0.000 |
| Item Width - Xa | 0.000 |
| Lift Capacity | 3,000 LBS |
| Master Case Height Inches - XA | 37.500 |
| Master Case Inner Pack Qty - XA | 0 |
| Master Case ITF14 - XA | 0 |
| Master Case Length Inches - XA | 47.000 |
| Master Case Qty - XA | 150 |
| Master Case Volume Cubic Feet - XA | 0.00000 |
| Master Case Weight Lbs - XA | 1675.000 |
| Master Case Width Inches - XA | 40.000 |
| Material - Xa | Carbon Steel |
| Mount Type Description - Xa | Not Applicable |
| Pallet Cases Per - XA | 150 |
| Pallet Cases Per Layer - XA | 1 |
| Pallet Layer of Cases - XA | 1 |
| Pallet Qty - XA | 0.000 |
| Pallet Total Height Inches - XA | 37.500 |
| Pallet Total Weight Per - XA | 1704.000 |
| Parcel Allowed - Xa | Yes |
| Product Weight - Xa | 9.560 |
| Prop 65 Label Text - XA | <! Triangle> WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 Material - XA | Di(2-ethylhexyl) phthalate |
| Prop 65 Reason - XA | Phthalates |
| Prop 65 Warning Label Type - XA | Cancer and Birth Defect Causing |
| Prop 65 Warning Y/N - XA | YES |
| Rate Class - Xa | 400.0 |
| Retail Height - Xa | 24.000 |
| Retail Length - Xa | 7.000 |
| Retail Width - Xa | 5.000 |
| Sales Family Code - Xa | TPACC |
| Sales Family Description - Xa | TRAILER PARTS AND ACCESS |
| Sales Group Description - Xa | TRAILER JACK |
| Shipping Weight - Xa | 12.000 |
| Side Application Type Description - Xa | Not Applicable |
| Support Capacity | 5,000 LBS |
| Tariff 301 - Xa | Yes |
| TRAVEL | 15 IN |
| Truckload Cases Qty - XA | 0 |
| Truckload Pallets Qty - XA | 0 |
| Truckload Units Qty - XA | 0 |
| Truckload Volume Cubic Feet - XA | 0.00000 |
| Truckload Weight - XA | 0 |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8425490000 |
| Harmonized Tariff Code (HTS) | 8425490000 |
| NAFTA Preference Criterion Code | B |
| Warranty Special | Limited Lifetime Warranty (One-Year Finish; One-Year Parts) |
| Warranty Special UOM | TX |
| UPC | 00612314056217 |
CURT MANUFACTURING 25007 Cross References
| Brand | Part Number |
|---|---|
| Lippert | 2023062692 |
CURT MANUFACTURING 25007 Customer Reviews
No reviews yet
Be the first to review this product!
CURT MANUFACTURING 25007 Manufacturer Information
Curt®, a Lippert brand, is a leading manufacturer and supplier of a full line of towing products, including heavy-duty equipment. It also offers fifth wheel, gooseneck, weight distribution hitches, ball mounts, trailer balls, electrical components, bike racks, cargo carriers, and other towing accessories. Headquartered in Eau Claire, Wisconsin, Curt Manufacturing, LLC. has come a long way since it was founded as a trailer ball distribution business in 1993. Two years after its founding, it began manufacturing its own first custom-fit receiver hitch, which was soon followed by countless more. Today, Curt remains the FIRST Name in Towing Products® with over a thousand trailer hitch designs for everything, from vans and passenger cars to SUVs and full-size pickups.
