MONROE part description

Product Description

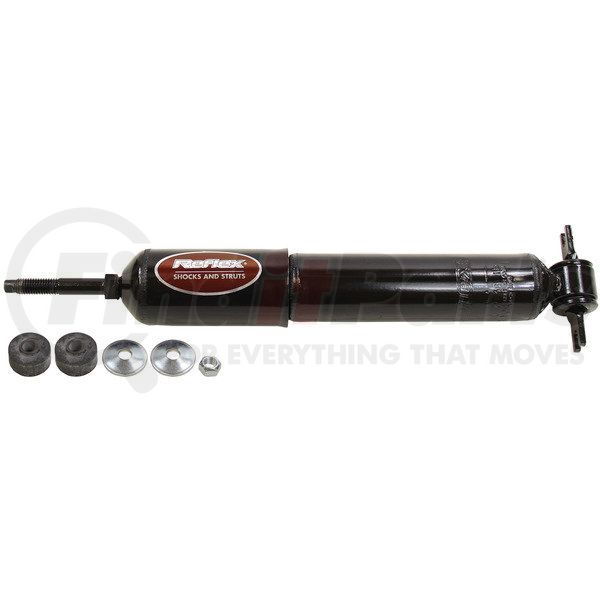

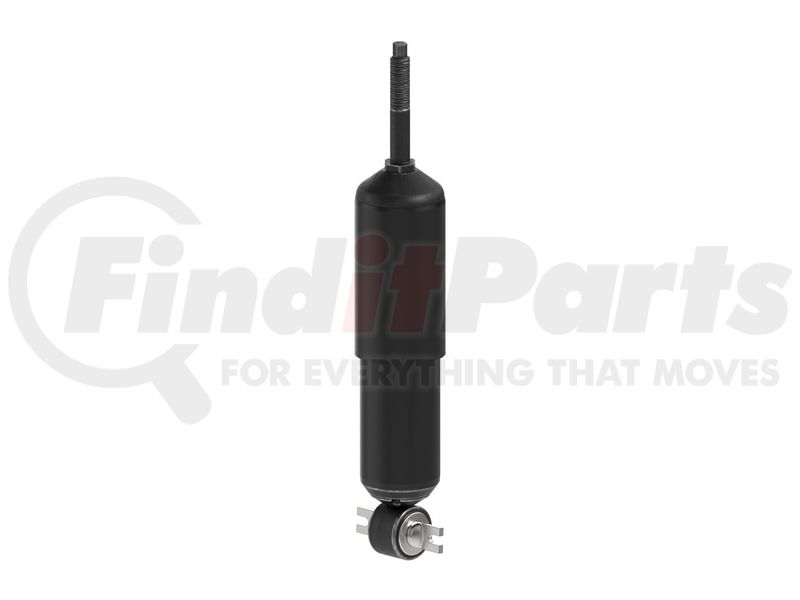

Reflex Shock Absorber

Application Summary

2011-2021 Ram 1500 Sport SLT Express ST Laramie Big Horn Tradesman Outdoorsman Laramie Longhorn (Front) (Front Spring: Coil & Mfr Body Code: DS & Drive: RWD / Qualifier: Premium, Old Body Style); 2019-2022 Ram 1500 Classic (Front) (Front Spring: Coil & Drive: RWD / Qualifier: Premium); 2009-2010 Dodge Ram 1500 (Front) (Drive: RWD / Qualifier: Premium)

Features & Benefits

  • IMPROVES STABILITY -- ASD (Acceleration Sensitive Damping) valving technology adjusts to impacts, reducing roll and dive for vehicles with a higher center of gravity
  • MEJORA LA ESTABILIDAD -- La tecnología de válvulas ASD (Acceleration Sensitive Damping) se ajusta a los impactos, lo que reduce el balanceo y el picado en vehículos con un centro de gravedad más alto
  • EXCEPTIONAL HANDLING -- Full displaced valving, tuned specifically to each vehicle, adjusts to road extremes while the larger bore provides more efficient damping control to provide consistency and a smooth ride
  • MANEJO EXCEPCIONAL -- Las válvulas desplazadas, sintonizadas específicamente para cada vehículo, se ajustan a la carretera, mientras que el orificio más grande proporciona un control de amortiguación más eficiente para una conducción suave
  • CONSISTENT RIDE -- OE all-weather fluid contains special additives to assist with extreme temperatures and help reduce oil breakdown while larger reserve tube holds more fluid to run cooler
  • MANEJO CONSISTENTE -- El fluido OE para todo clima contiene aditivos especiales para temperaturas extremas y ayuda a reducir la descomposición del aceite, mientras que un tubo de reserva más grande contiene líquido para funcionar más frío
  • CONTROL AND DURABILITY -- Fluon-banded piston provides consistent sealing between piston and pressure tube for better control and increased durability
  • CONTROL Y DURABILIDAD -- El pistón con bandas de fluón proporciona un sellado uniforme entre el pistón y el tubo de presión para un mejor control y una mayor durabilidad
  • IMPROVES PERFORMANCE -- Nitrogen gas charge maintains tire-to-road contact for improved ride and handling by reducing aeration
  • MEJORA EL RENDIMIENTO -- La carga de gas nitrógeno mantiene el contacto entre la llanta con el suelo para mejorar la conducción y el manejo al reducir la aireación
  • BUILT TO LAST -- Self-lubricating fluid seal retains gas and reduces excessive friction against the piston rod to help reduce premature wear
  • CONSTRUIDO PARA DURAR -- El sello de fluido autolubricante retiene el gas y reduce la fricción excesiva contra el vástago del pistón para ayudar a reducir el desgaste prematuro
  • BUY WITH CONFIDENCE -- Comes with Monroe's Limited Lifetime Warranty and exclusive Feel the Difference™ Guarantee
  • COMPRE CON CONFIANZA -- Viene con la garantía limitada de por vida de Monroe y la garantía exclusiva Siente la Diferencia ™

Product Attributes

Compressed Length 9.63 IN
Travel Length 4.7 in
Extended Length 14.33 in
Gas Charged Yes
Dust Shield Included Yes
Dust Shield Material Metal
9783 No
9789 S5
9791 XP10
9792 No
9908 No
Lower Mount Type Cross Pin Mount - Open Ended, 3/8" Hole ID (Both Ends) X 2.5/8" Pin Length (Hole Center to Center)
Part Description Shock Absorber
Parts Pack(s) P01167
Upper Mount Type Stem Mount - 2.5/8" Stem Length X 1/2"-13 Thread Pitch

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708803000
Harmonized Tariff Code (Schedule B) 8708801600
Harmonized Tariff Code (HTS) 8708801600
MSDS Sheet Number 01164
UPC 00048598039453
VMRS Code 016008003
UNSPSC 25172011

Part Interchanges

Monroe products are built for the road ahead. Since its founding in 1916, Monroe® has been known for its world-class solutions that are precision-engineered and meticulously tested with the specific vehicle's ride and handling profile in mind. As the leading supplier of Original Equipment ride control products to global automotive manufacturers, Monroe helped establish the benchmarks of handling and ride excellence in every stage of a vehicle's life. Whether you're upgrading your truck, converting its suspension, or restoring its original state, Monroe has got you covered. It offers the best-in-class shocks, strut assemblies, steering stabilizers, conversion kits, lift support, and many other suspension components that will help enhance your safety and driving experience.

Fits Vehicles

  • Ram 1500 Classic (2019-2022)
  • Ram 1500 (2011-2021)
  • Dodge Ram 1500 (2009-2010)
