(888) 312-8812 Login SignupGROTE 87174 UltraLinkTM ABS Power Cords, 13.5', Straight, Premium
$14049
3 Day Lead Time
Due to limited availability, we will confirm your order and notify you within 1 business day.
GROTE 87174 Part Description
Manufacturer
Product Description

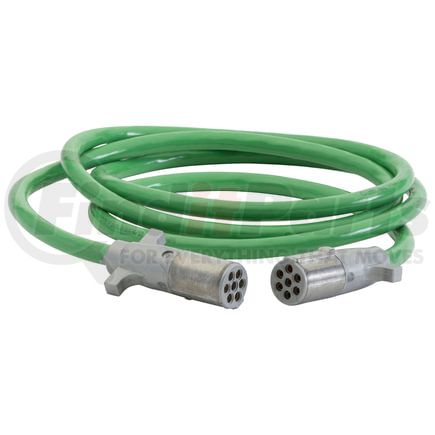

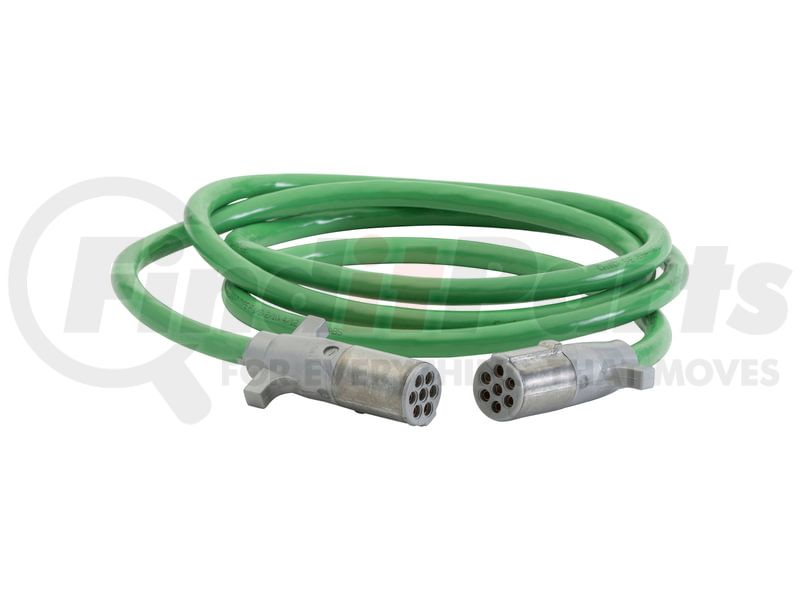

UltraLinkTM ABS Power Cords, 13.5', Straight, Premium
Features & Benefits
- Adhesive bonds cable to plug, eliminating need for supporting spring and preventing moisture from entering the back of the plug
- UltraLinkTM power cords exceed minimum legal lamp power delivery requirements for single or double trailer configurations
- Advanced polymer jacketing material provides complete sealing and abrasion protection between -55degF and 190degF (Premium Versions)
- Zinc die-cast plugs are filled with elastomeric material that resists crushing & acts as potting to seal solid brass terminals from moisture
- Advanced polymer jacketing material provides complete sealing and abrasion protection between -55°F and 190°F (Premium Versions)
- Solid brass terminals are corrosion resistant, and provide superior current capacity with minimal voltage drop
- Provides excellent recoil memory, chemical, and abrasion resistance
GROTE 87174 Specifications
Product Attributes
| Coiled or Straight | Straight |
| Color | Green |
| Gauge | 1/8 GA,2/10 GA,4/12 GA |
| Length | 13.5' |
| Material | PVC |
| Operating temperature | -40°F to +176°F (-40°C to +80°C) |
| Plug | Straight |
| Plug / Socket # | 7 |
| Standards | J2394,J560b |
| Style | ABS |
| Product Line - Trademark | UltraLink™ |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (Schedule B) | 8544300000 |
| UPC | 00621935101152 |
| VMRS Code | 034003037 |
