HALDEX part description

Product Description


Application Summary

Replaces AL430611,Patented FFABS Valve with integral Spring Brake Control function.

Features & Benefits

  • Patented and comes with integral spring brake control function
  • Guarantees easy serviceability with its pre-installed reservoir nipple with swivel and lock-nut feature
  • Fitted with filters in both the control and supply ports
  • With production part number engraved on the metal tag
  • Made standard with filters in the control and supply ports

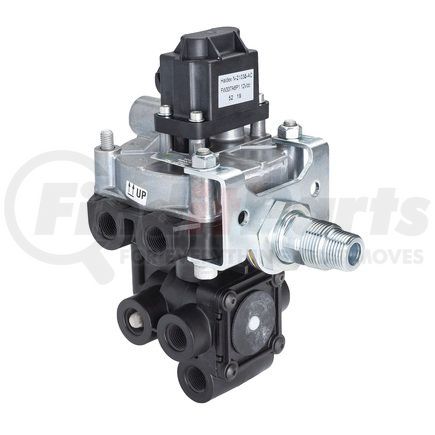

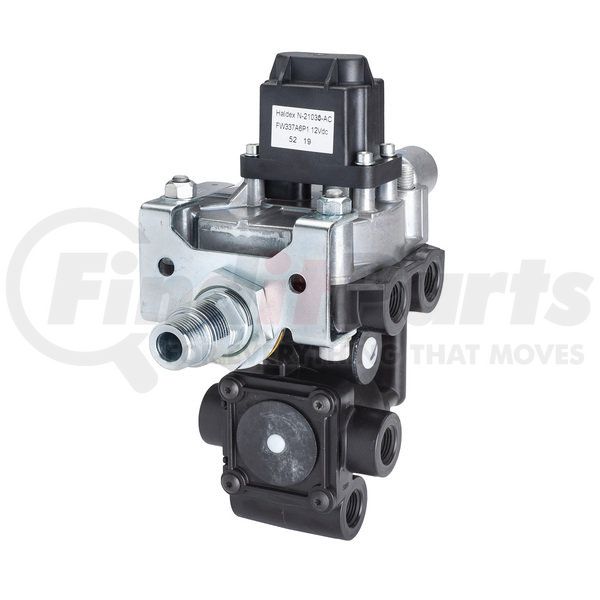

Haldex Full-Function ABS (FFABS) Valve

Crafted to the industry's highest standards for performance, reliability, and safety, the Haldex Full-Function ABS valve provides you with a dependable performance at all times. This component expedites service replacement with its pre-installed combination nipple that works for two ports of different sizes.

Product Attributes

Control Port Diameter 3/8 in.
Delivery Port Diameter 4 @ 3/8 in.
Freight Class 70
Opening Pressure 4.0 PSI
Reservoir Port Diameter 1 @ 1/2 in., 1 @ 3/4 in. (Nipple)
Spring Brake Port Diameter 4 @ 3/8 in.
Supply Port Diameter 3/8 in.
Valve Type 4-Port ABS Valve
Voltage 12V

Additional Information

Country of Origin (Primary) MX
Harmonized Tariff Code (Schedule B) 8481200060
Harmonized Tariff Code (HTS) 8481200060
Remanufactured Part N
Warranty Distance 100000
Warranty Distance UOM MI
Warranty Special 36 MO, 200,000 MI=ABS - Antilock Braking Systems Including Haldex TRS (Valves, ECUs and Looms Only). 12 MO, 100,000 MI= All Other ABS - Antilock Braking Systems Components. See L20221W.pdf for warranty details
Warranty Time 12
Warranty Time UOM MO
UPC 00767653310954
VMRS Code 013011085

Part Interchanges

Haldex® is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. Its product line consists of brake components for wheel ends, including disc brakes, brake adjusters, and actuators. It also offers air control products such as compressed air dryers, valves, ABS, and EBS. All these Haldex products are designed with safety and efficient operation in mind, cutting down on potential hazards and maintenance costs in the long run. Today, Haldex runs manufacturing and R&D facilities in 19 countries across four continents. It is dedicated to producing high-quality brake and suspension parts for its customers all around the world as well as developing new technologies for the future.

HALDEX AL430668 Cross Reference

We have 4 alternatives for the AL430668 by HALDEX:
