ICON 48711 Part Description
Manufacturer
Product Description

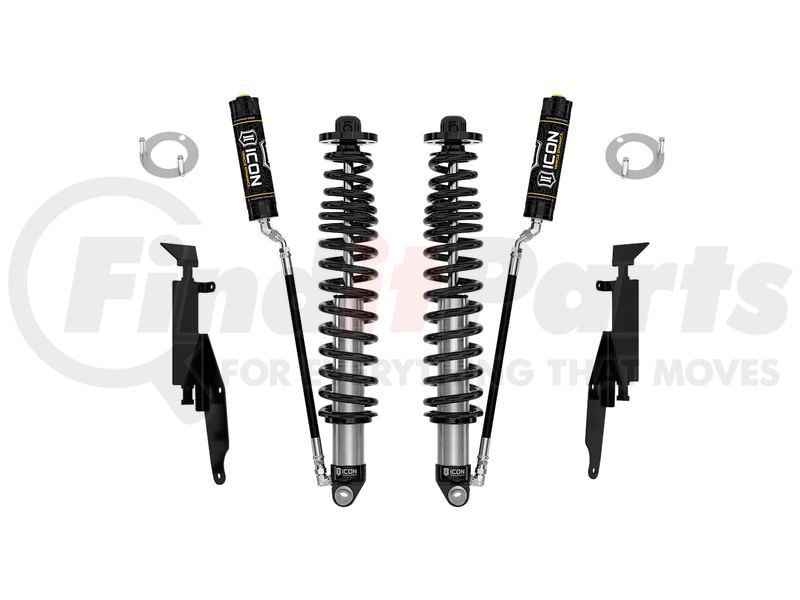

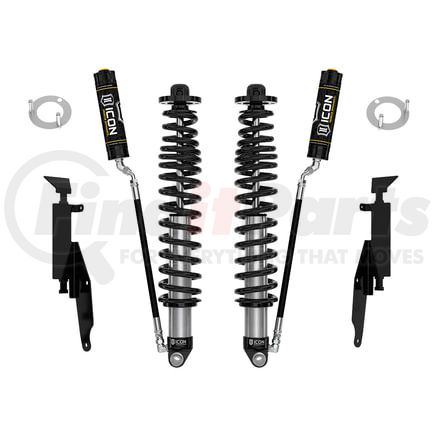

21-23 BRONCO REAR 2.5 VS RR COILOVER KIT HEAVY RATE SPRING
Features & Benefits
- Increased wheel travel (up to 14”) and ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- Adjustable up to 2-3" of rear lift height on non-Sasquatch or 1.25-2.25” of rear lift on Sasquatch Broncos
- Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shaft
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
- 100% Bolt-on - no drilling, cutting or welding necessary for installation
OEM Wheels & Tires Fitment: Yes
21-23 BRONCO REAR 2.5 VS RR COILOVE
ICON 48711 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |

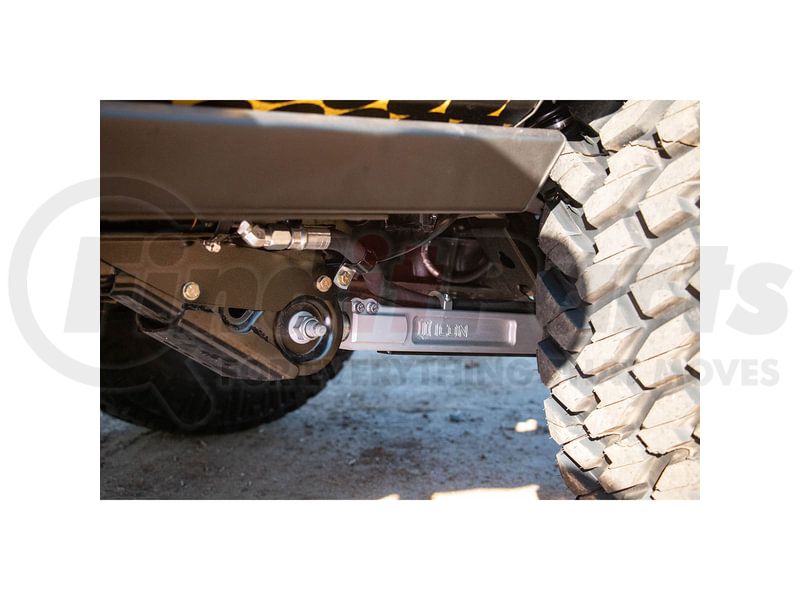

| Add-on Part | 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT |
| Adjustable Compression | No |
| Adjustable Damping | NO |
| Adjustable Rebound | No |
| Adjustable Ride Height | Yes |
| Assembled | Yes |
| Body Diameter | 2.5 in |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | Yes |
| Compressed Length | 18.54 IN |
| Cylinder Color | Silver |
| Cylinder Finish | Cadmium Plated |
| Cylinder Material | Steel |
| Damping Type | Oil |
| Dust Shield Included | No |
| Extended Length | 29.21 IN |
| Gas Charged | Yes |
| Grade Type | Performance |
| Includes Bump Stop | Yes |
| Internal Construction Type | Single Tube |
| Lower Mount Type | Eyelet |
| Material | Aluminum |
| Maximum Lift | 3 IN |
| Maximum Ride Height Raising Distance | 3 IN |
| Minimum Lift | 1.25 IN |
| OEM Wheels & Tires Fitment | Yes |
| 10108 | 300 PPI |
| Recommended Aftermarket Tires | (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers) |
| Recommended Aftermarket Wheels | (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset |
| Remote Reservoir | Yes |
| Reservoir Style | Remote |
| Self-Leveling | No |
| Service Parts | 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT |
| Shaft Diameter | 0.875 IN |
| Shock Absorber Body End Measuring Point | CENTER OF EYELET |
| Shock Absorber Rod End Measuring Point | Top of Mounting Plate |
| Spring Color | Black |
| Spring Material | Steel |
| Spring Rate Type | Progressive Dual Rate |
| Title | ICON 2021-2023 Ford Bronco, Rear, 1.25-3” Lift, V.S. 2.5 Series Coilover Kit, Remote Reservoir, Heavy Rate Spring |
| Travel Length | 10.67 IN |
| Upper Mount Type | Mounting Plate |
| Valving Type | Digressive |
Additional Information
| Warranty Special | 1 Year-Shocks; Limited Lifetime-Coil Springs |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103424200 |
ICON 48711 Fits Vehicles
- Ford Bronco (2021-2023)
