Need help? We're here!
(888) 312-8812 Login SignupICON 56503 4WD 0-1.5' RR 2.0 VS NR
$28749
Limited availability at this price!
In Stock
Get it by Thursday, Jul 9
ICON 56503 Part Description
Manufacturer
Product Description

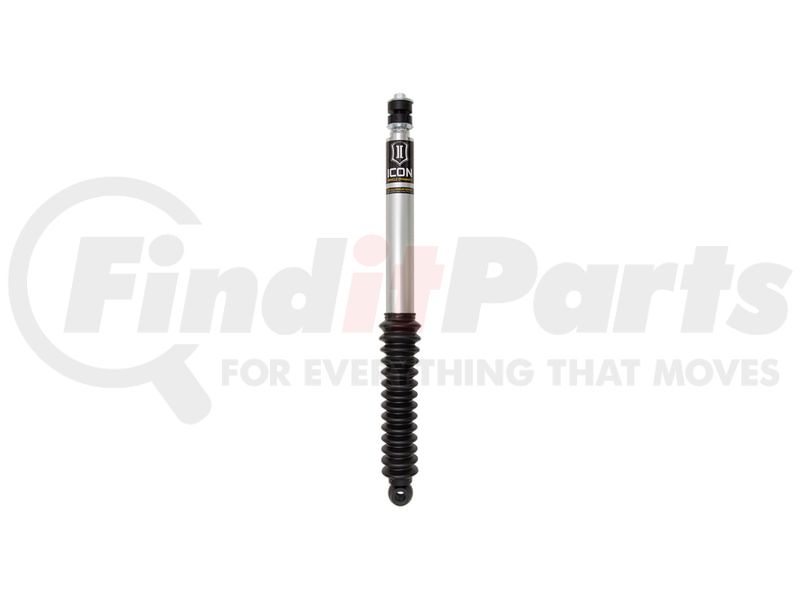

05-23 TACOMA 4WD 0-1.5" REAR 2.0 VS NR
Features & Benefits
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
- 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
TECH NOTE: Will not fit 2005-2015 5-Lug 2WD Toyota Tacoma
ICON 56503 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Adjustable Compression | No |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Adjustable Ride Height | No |
| Body Color | Gray |
| Body Diameter | 2 IN |
| Body Material | Aluminum |
| Boot Included | Yes |
| Bore Diameter | 1.75 IN |
| Bushing Color | Black |
| Bushing Included | yes |
| Bushing Material | Rubber |
| California Prop 65 Warning | Yes |
| Coil Over Springs Included | NO |
| Coil Spring Insulator(s) Included | No |
| Color | Gray |
| Configuration | Performance |
| Cylinder Color | Gray |
| Cylinder Finish | Anodized |
| Cylinder Material | Aluminum |
| Cylinder Outside Diameter | 2 IN |
| Damping Type | Oil |
| Dust Boot Included | No |
| Dust Shield | NO |
| Dust Shield Included | Yes |
| Dust Shield Material | Rubber |
| External Reservoir | No |
| Finish | Anodized |
| Gas Charged | Yes |
| Grade Type | Performance |
| Hydraulic Lockout | No |
| Includes Bump Stop | No |
| Internal Construction Type | Single Tube |
| Internal Rebound Bumper | Yes |
| Internal Rebound Spring | No |
| Lower Mount Type | EYELET |
| Material | Aluminum |
| Maximum Ride Height Raising Distance | 1.5 IN |
| Mounting Hardware Included | Yes |
| Quantity | 1 |
| Remote Reservoir | No |
| Rod Diameter | .625 IN |
| Self-Leveling | No |
| Service Parts | 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL |
| Shaft Diameter | 0.625 IN |
| Shaft Material | Chrome |
| Shock Absorber Body End Measuring Point | Shoulder of Stem |
| Shock Absorber Bore Size | 1.75 IN |
| Shock Absorber Rod End Measuring Point | CENTER OF EYELET |
| Suspension Type | Spring |
| Title | ICON 2005-2023 Toyota Tacoma 4WD, 0-1.5" Lift, Rear, 2.0 VS Shock |
| Upper Mount Type | Stem |
| Valving Type | Linear |
Additional Information
| Warranty Time | 1 |
| Warranty Time UOM | YR |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103403045 |
ICON 56503 Fits Vehicles
- Toyota Tacoma (2005-2023)
