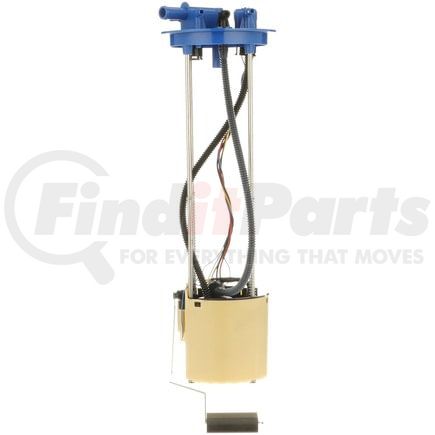

(888) 312-8812 Login SignupDELPHI FG2247 Fuel Pump Module Assembly
$26999
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
DELPHI FG2247 Part Description
FUEL PUMP MODULE ASSEMBLY
DELPHI FG2247 Specifications
Product Attributes
| Fuel Sending Unit Included | Yes |
| Negative Ground | No |
| Outlet Outside Diameter | 0.375 IN |
| Voltage | 12 2H |
| Fuel Type | Diesel |
| Regulator Included | No |
| Maximum Pressure | 65 PS |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Grade Type | Premium |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Gasket Or Seal Included | Yes |
| Housing Material | Plastic |
| Installation Warnings | No |
| Terminal Quantity | 6 |
| Lock Ring Included | No |
| Connector Gender | Female |
| Terminal Gender | Male |
| Strainer Included | Yes |
| Inlet Type | Strainer |
| Outlet Type | Quick Connect |
| Outlet Quantity | 4 |
| Fuel Filter Included | Yes |
| In Tank or External | In Tank |
| Resistance Ohms Empty | 250 82 |
| Resistance Ohms Full | 40 82 |
| Gasket Or Seal Material | Nitrile Rubber |
| Minimum Pressure | 54 PS |
| Internal Or External Strainer | Internal |
| Wire Harness Included | No |
| Pump Design | Turbine |
| Average Current Draw | 9 68 |
| Fuel Tank Pressure Sensor Included | No |
| Average Flow Rating | 42 GPH |
| Pump Type | Electric |
| Package Contents | Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8413309000 |
| Harmonized Tariff Code (HTS) | 8413309030 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604388976 |
| VMRS Code | 044003258 |
| UNSPSC | 25172409 |
DELPHI FG2247 Part Interchanges
| Brand | Part Number |
|---|---|
| N/A | 86801554, 84212954, 84089926, 84462345, 84212955, 84089927 |
DELPHI FG2247 Fits Vehicles
- GMC Sierra 3500 HD (2017-2019)
- GMC Sierra 2500 HD (2017-2019)
- Chevrolet Silverado 3500 HD (2017-2019)
- Chevrolet Silverado 2500 HD (2017-2019)
