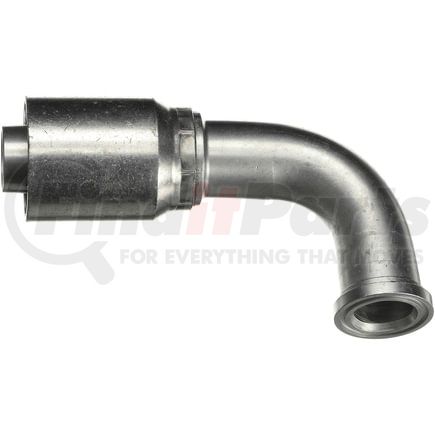

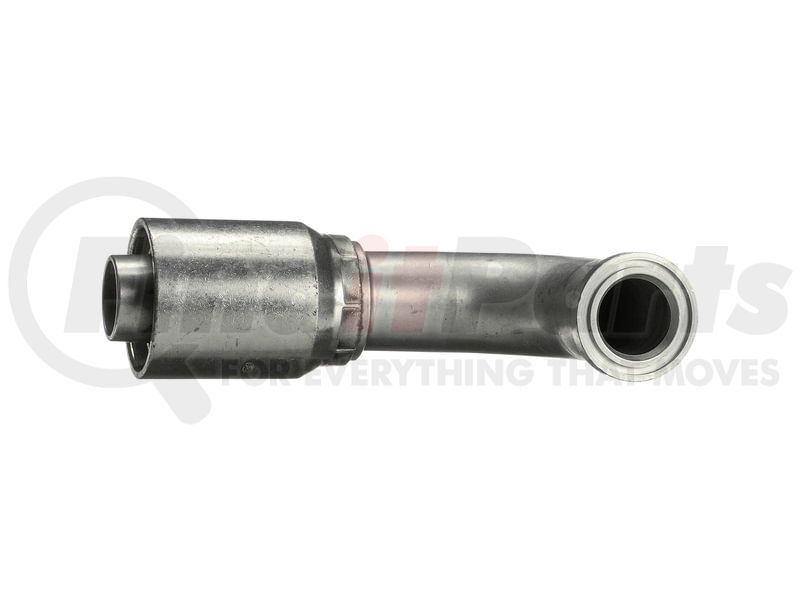

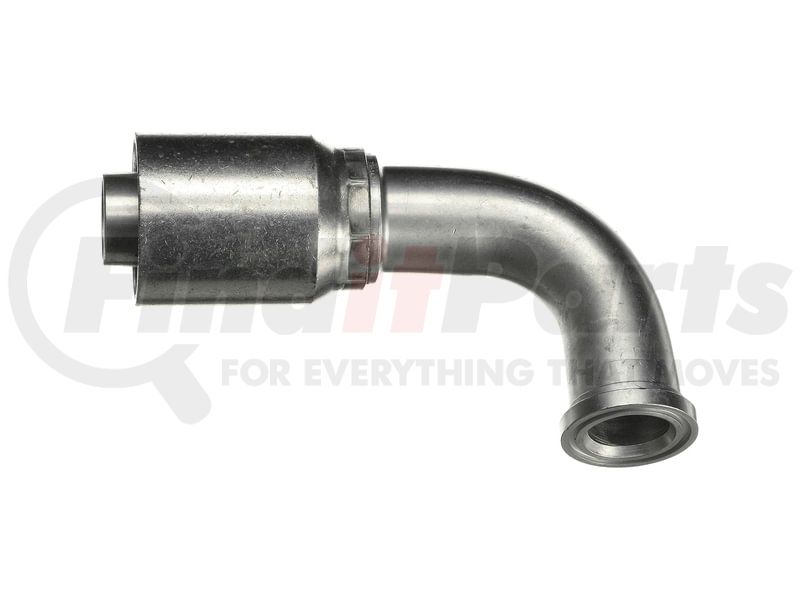

Gates G24314-2424 - Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral MAX Pressure)
$23699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
GATES part description
Product Description
Code 61 O-Ring Flange - 90 Bent Tube (GlobalSpiral MAX Pressure)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250degF temperature capability for longer assembly life
- +250°F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
Product Attributes
| Coupling Description | GlobalSpiral MAX Pressure Code 61 O-Ring Flange - 90 Bent Tube |
| Industrial Description | 24GSM-24FL90S |
| Inside Diameter | 1.5 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hose - EFG6K - SAE 100R15, EFG5K - SAE 100R13 |
| Maximum Working Pressure | 3000 PS |

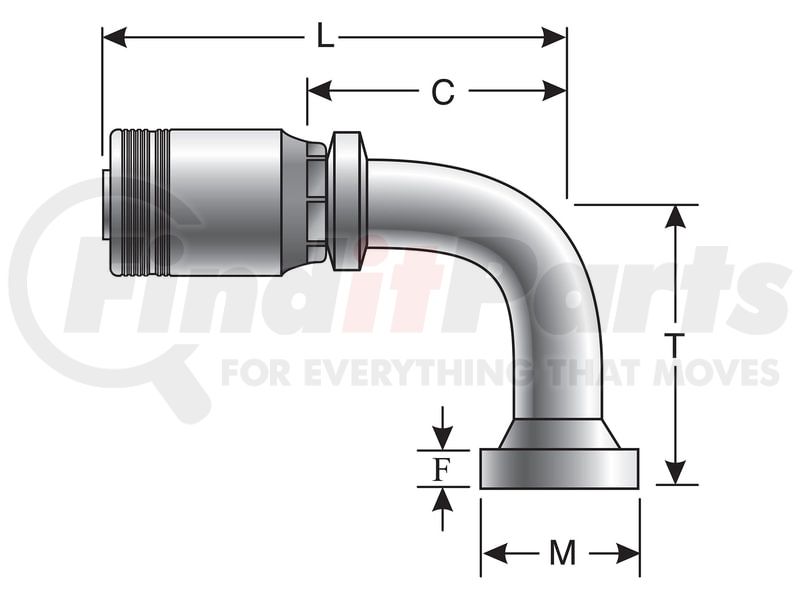

| Flange Thickness | .32 in |
| Flange Diameter | 2.38 IN |
| Drop Length | 3.19 IN |
| Cut-Off Length | 4.72 IN |
| Length | 8.46 IN |
| Inside Diameter | 38.1 MM |
| Flange Thickness | 8.1 MM |
| Flange Diameter | 60.5 MM |
| Drop Length | 81 MM |
| Cut-Off Length | 119.9 MM |
| Length | 214.9 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 7326908688 |
| Country of Origin (Primary) | US |
| UPC | 00770075394532 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
