(888) 312-8812 Login SignupGATES G22165-3232 Male JIC 37 Flare (GlobalSpiral Plus)
Tap to view 2 more
$12599
Limited availability at this price!
In Stock
Get it by Thursday, Jul 16
GATES G22165-3232 Part Description
Manufacturer
Product Description

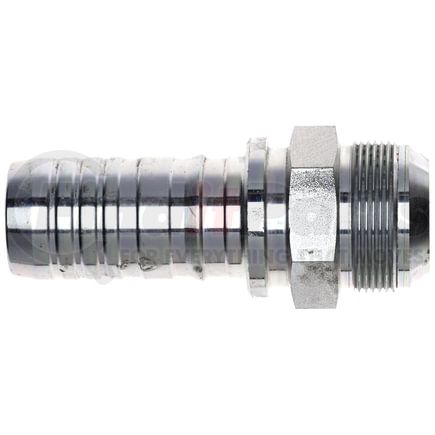

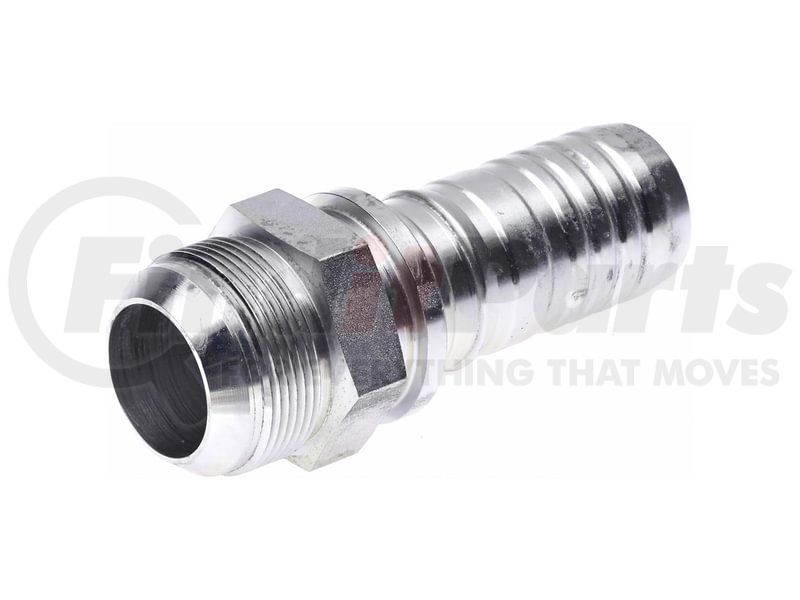

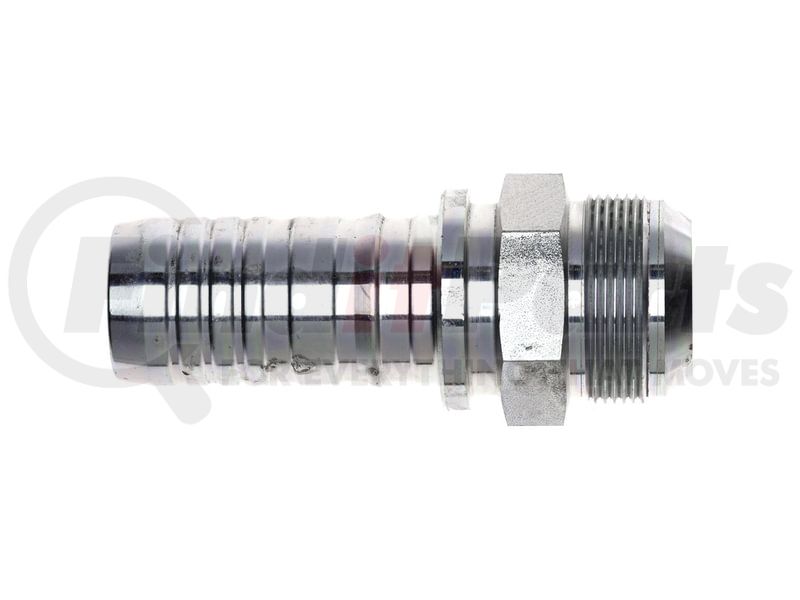

Male JIC 37 Flare (GlobalSpiral Plus)
Features & Benefits
- "Bite-the-wire" crimp for improved coupling retention
- “Bite-the-wire” crimp for improved coupling retention
- Tested to an industry-leading 1,000,000 impulse cycles
- +250 Deg. F temperature capability for longer assembly life
- Environmentally-friendly TuffCoat plating for 347 percent better corrosion resistance than the SAE Standard
GATES G22165-3232 Specifications
Product Attributes
| Coupling Description | GlobalSpiral Plus Male JIC 37 Flare |
| Industrial Description | 32GSP-32MJ |
| Thread Size | 2 1/2-12 |
| Inside Diameter | 2 IN |
| Hydraulic Hose Recommendation | Gates Extremely High Pressure Hydraulic Hose (-24 & -32) |

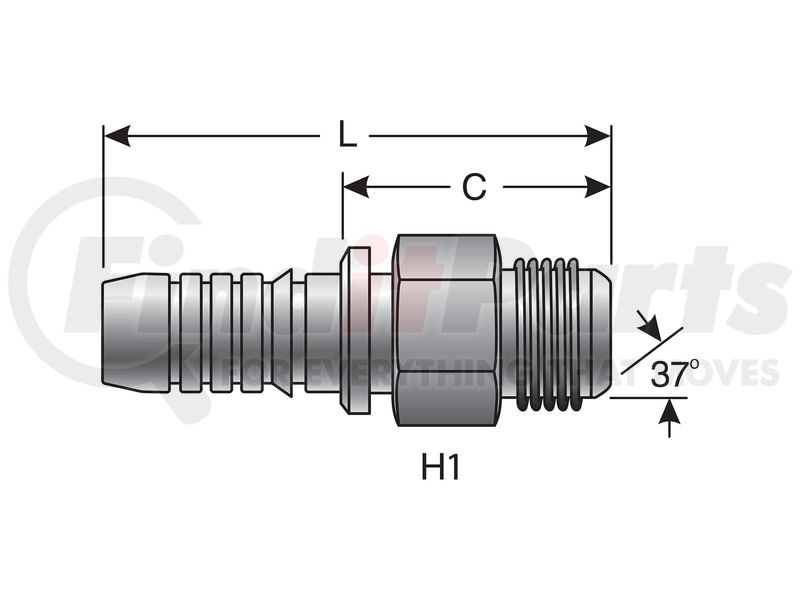

| Stem Hex Size | 2.56 IN |
| Cut-Off Length | 2.72 IN |
| Length | 6.34 IN |
| Inside Diameter | 50.8 MM |
| Cut-Off Length | 69.1 MM |
| Length | 161 MM |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8412909015 |
| Stock Status | S |
| UPC | 00770075396956 |
| VMRS Code | 059032012 |
| UNSPSC | 31163000 |
GATES G22165-3232 Cross References
| Brand | Part Number |
|---|---|
| Aeroquip | 4SA32MJ32 |
| Continental Belt | UC-JCM-3232 |
| Dayco | 100872 |
| Goodyear | 28450-3232, 29450-3232 |
| Kurt Hydraulics | MJ-32-32-W |
| N/A | T7030-324, 04031502 |
| NAPA | G22165-3232 |
| Weatherhead | 43032U532, 43032E-532, 43032U-532 |
