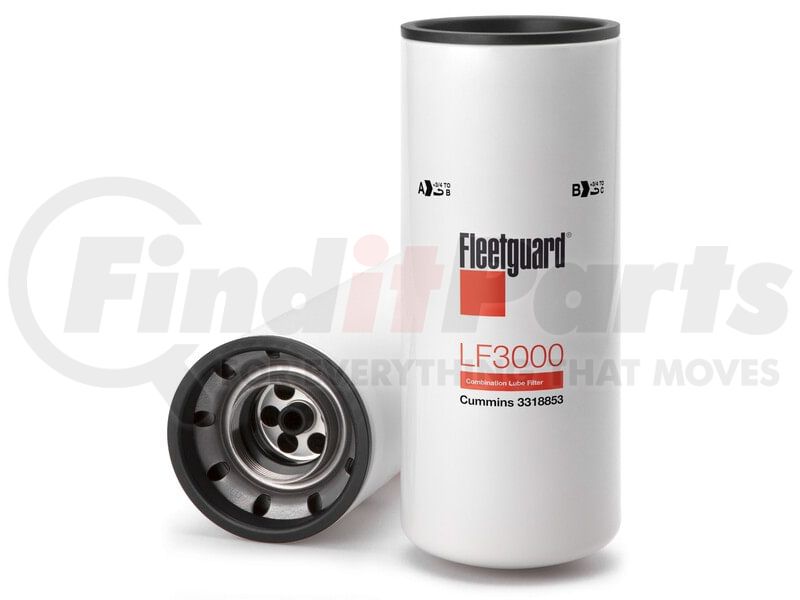

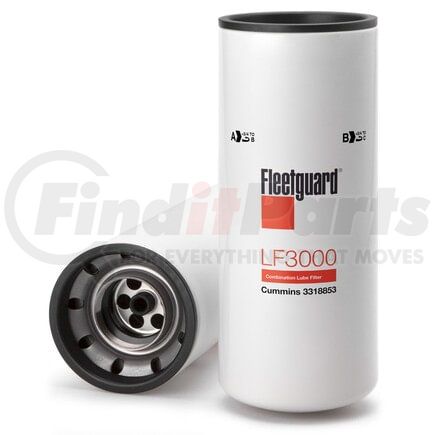

(888) 312-8812 Login SignupFLEETGUARD LF3000 Lube Filter, Spin-On
MSRP: $110.06
$5949
Save $50.57
Limited availability at this price!
In Stock
Get as soon as Monday, Oct 5
FLEETGUARD LF3000 Part Description
Manufacturer
Features & Benefits
- Low-restriction design keeps oil moving through the lubrication circuit
- Dual filtration paths combine full-flow and bypass oil cleaning functions
- Cleans the main oil stream and finer bypass flow within one filter
- Combines both filtration paths inside one replaceable spin-on service assembly
Fleetguard Engine Oil Filter
During engine lubrication service, the Fleetguard Engine Oil Filter combines full-flow and bypass filtration rather than relying on a single oil-cleaning path. The two-stage arrangement gives the filter a way to balance routine oil flow with additional contaminant control inside one spin-on assembly. For the Fleetguard LF3000, low restriction remains part of that design, so filtration does not depend on choking the lubrication circuit. For a buyer comparing Fleetguard lube filters, the meaningful difference is the combined filtration strategy and one-piece service format, not just external filter size.
| Type | Spin On |
FLEETGUARD LF3000 Specifications
Product Attributes
| Capacity Test Specification | CECO 10634 IN |
| Gasket Inside Diameter | 4.0098345 IN |
| Gasket Outside Diameter | 4.6799119000000005 IN |
| Height | 11.879927675 in |
| Hydrostatic Burst Minimum | 249.9365 IN |
| Largest Outside Diameter | 4.6799119000000005 IN |
| Primary Particle Efficiency | 30 micron (c) @ 98.7% IN |
| Rated Flow | 20.0792 IN |
| Thread Size | 57.15-12 UNF 2B IN |
FLEETGUARD LF3000 Cross References
| Brand | Part Number |
|---|---|
| FGLF3000, F65Z16K689AD | |
| AC | PF1217 |
| ACDELCO | PF1217 |
| AGCO | 72501533 |
| Atlas-Copco | 1310032243, 5541709900 |
| Aveling-Barford | ABP3003902 |
| BALDWIN | BD103, BD103MPG, BD103-SS |
| BIG A | 92748 |
| BIURRARENA | 143115 |
| BOSCH | 9455081024 |
| Baldwin | BD103SS, BK6375 |
| Big Filter | GB1238 |
| Blount | 30003073 |
| Bomag | 31701002, 31780003 |
| Bosch | 986B01011, F000KP1084 |
| CARQUEST | 85748, 85748MP |
| CHAMPION | 54429 |
| CUMMINS | 3318853 |
| Case | 3621379M1, 907101T1 |
| Coopers | LSF5065 |
| Crosland | 2135 |
| Cummins | 1220828, 3825970 |
| DAF | 1288430 |
| DONALDSON | P553000, P553639 |
| Daewoo | 24719014B |
| Daimler | 400055778K |
| Demag | M1831127 |
| Dennis | ZZ11068 |
| Donaldson | ELF7300, LFP553000, P172512, P559671, P559672, P903235 |
| FLEETGUARD | LF9009, LF3000, LF9009 (Upgraded Version) |
| FRAM | HPH6349, HPH6349A, HPH9500, PH6349, PH6349A, HPH6349AFP |
| Fiatagri | 75285999 |
| Ford | E8HZ6731A, TJG15561 |
| Furukawa | 1290006H1 |
| Gonher | GP3000 |
| Grove | 9414100881 |
| HASTINGS | LF448, LF448XS |
| HIFI FILTERS | SO-3000 |
| Halla | 3318853, 3825970, 439203039, 7528599901 |
| Hengst | H300W03 |
| Hyundai | 11E170130PB |
| JC Bamford | 2910550, 2910550A |
| JOHN DEERE | RE44647, AT193242 |
| John Deere | PMLF3000 |
| KOMATSU | 1294153H1, 1294153-H91 |
| Kassbohrer | 831206224, 83120622470 |
| Knecht | OC482 |
| Kobelco | YN50VU0001D5 |
| Komatsu | 1294153H91, 1295224H1, 20701K1230, 20801K1310, 6742012430, 6742014120, CU3318853, CU3825970, CULF3000 |
| Kralinator | D300 |
| LANSS FILTROS | BL2120, BL3000 |
| LUBER-FINER | LFP3000, LK258C |
| Lancer Boss | 8920154 |
| Leyland | C3318853 |
| Liebherr | 5608835 |
| Link-Belt | 3H1831, C8H0076 |
| MAHLE | OC482 |
| MOTORCRAFT | FL819 |
| Manitowoc | 4136160 |
| Massey Ferguson | 1077749M1 |
| N/A | EFL7300, 1379718, 35378546, 4228688, WP12121, 711049, SP577, 75285999, 22222, 5021188047, BG2X6731CA, 11E170130, 1294153H1, F428395, 4136160, 8482339, B2750548, HDZ374, S3411R, 907101T1, WO710, 2191P553000, 10024915, OC304, 3621379M1, SO3000, 2910550, 47400019, Z239, 4700902039, BD103, 6D300U, SFO3001, 10027047, 1220856, 1476559, 55429, 88291001891, D300TJ, 19500489, ABPN10GLF3000, C3401544A0571A, B222100000063, LF553000 |
| NAPA | 1748, 4737 |
| New Holland Agriculture | 75285999 |
| PREMIUM GUARD | HG50044 |
| Parker | PERI332 |
| Purolator | 6935219, L54519, PER4519 |
| SDMO | 330560035, 330560518, HL30 |
| Sakura | C5706 |
| Samsung | 11712405, 991218853, F318853 |
| Sisu | 1216400541, 1216400591 |
| Tec-Fil | PSL300 |
| Terex | 15266844, 8482339 |
| Texaco | HDO7 |
| Timbco | 16070 |
| UFI | 2341100 |
| Universal | LF3000MCI |
| Versatile | 9703112, V9703112 |
| Volkswagen | TJG115561 |
| Volvo | 129694576, 54429, 991218853, M12969457, V1113896, 12969457 |
| WIX FILTERS | WIX FILTERS, 51748, 51748MP |
| White | 303506517 |
| Wilson | 901106 |
| Wix | 24737, 51748, 51748MP, 551748, 4228688 |
| Woodgate | WGL3000 |
| Zettelmeyer | 2290736 |
FLEETGUARD LF3000 Customer Reviews
No reviews yet
Be the first to review this product!
FLEETGUARD LF3000 Manufacturer Information
Since 1987, Fleetguard® has been one of the world's leaders in filtration solutions for both on- and off-highway applications. Whether it's air, fuel, oil, or hydraulic filtration, Fleetguard filters provide superior protection against contaminants for engines and sensitive equipment in the agriculture, construction, commercial vehicle, marine, mining, and power generation industries. Each filter is fitted with high-quality filter media for longer service life as well as a more compact design to accommodate shrinking engine compartments found in modern vehicles. All products also undergo extensive performance tests and strict quality control procedures to ensure durability and consistent performance, even in the most demanding operating conditions.
FLEETGUARD LF3000 Questions & Answers
No questions yet
Be the first to ask a question about this product!
