ELECTRONIC SPECIALTIES part description

Features and Benefits

  • Three Testers In One!!

  • Great new tool with 3 interchangeable test functions.

  • 30 Amp MINI - Circuit Amperage Testing

  • 30 Amp ATC - Circuit Amperage Testing

  • 30 Amp All Purpose Amperage Testing

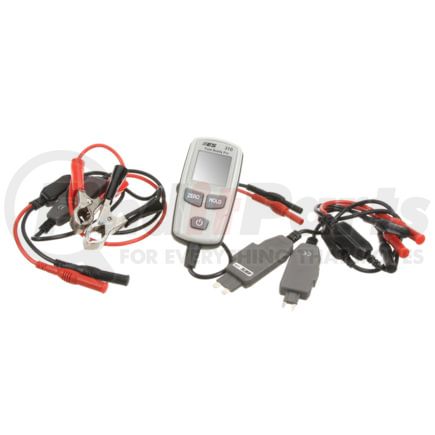

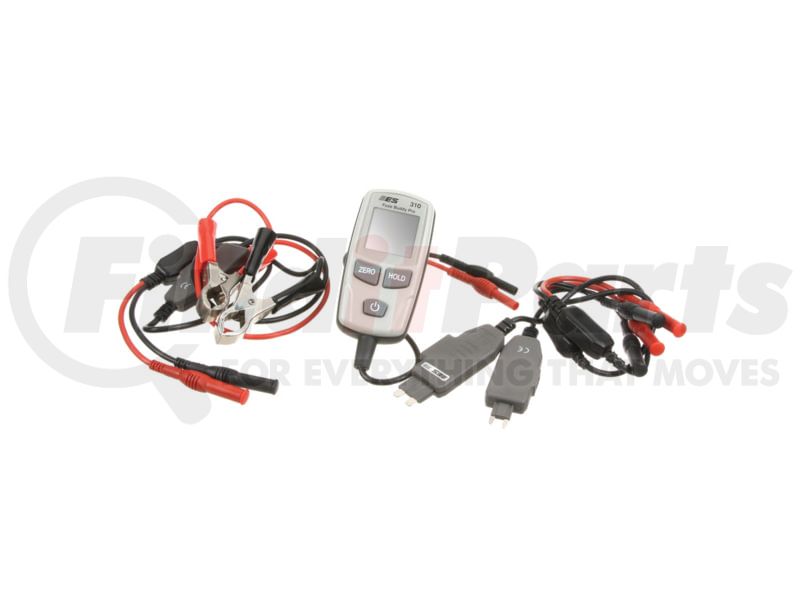

  • The new Fuse Buddy Pro Kit can read amperage draws on both ATC and Mini fused circuits up to 30 Amps. As an added bonus, the Fuse Buddy Pro can be used as an all purpose amp meter with the included 30A test clips.

  • Quick and easy way to check circuit amperage draws

  • Check blower motor and fuel pump amperage draws

  • Installing an auto-resetting circuit breaker allows you to check for intermittent shorts and monitor the current draw at the same time

  • Also handy for checking current readings on A/C compressors that are not easily accessible

  • Deluxe LCD display features full ANALOG BAR GRAPH

  • Unit features DATA HOLD and AUTO POWER-OFF

  • Resolution: .1A (100 mA) - Accuracy: +2% of reading

  • Measurement range: 0 to 30 Amps / 48 Volts

Since 1967, Electronic Specialties, Inc.® has been designing, engineering, and manufacturing high-quality test instruments for automotive, marine, HVAC, small engine, and industrial applications. Its innovative and time-saving products have already won various awards and patents, such as the Top 20 Tools in 2015 for its Starter Buddy, a tool used primarily in testing the health of the vehicle’s entire electrical starting/cranking circuit. Other award-winning products from this brand include the Max Fuse Buddy, Fuse Buddy Pro Test Kit, Low Current Probe/DMM, Load Pro, Relay Buddy, Short Buddy® Audible Trouble Shooter, and True RMS Low Current Clamp Meter. Electronic Specialties’ headquarters is located in Genoa City, Wisconsin.
