ELECTRONIC SPECIALTIES part description

Features and Benefits

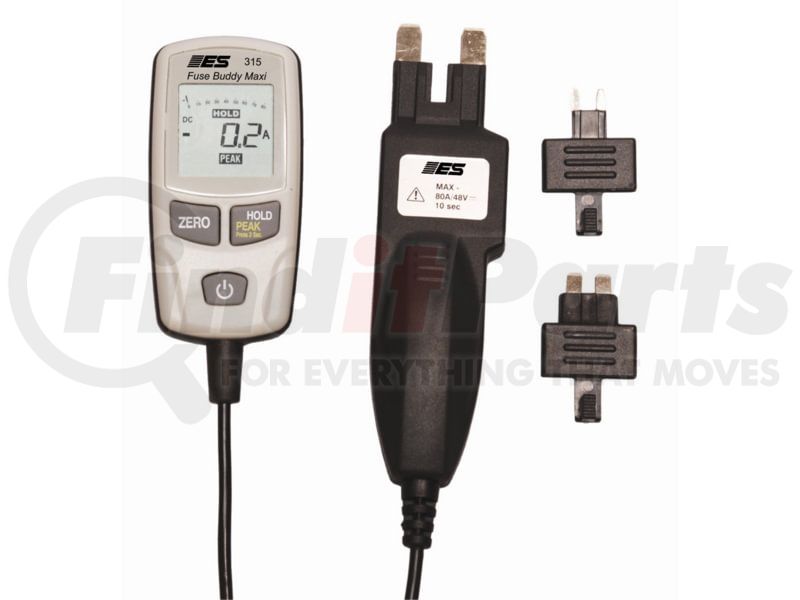

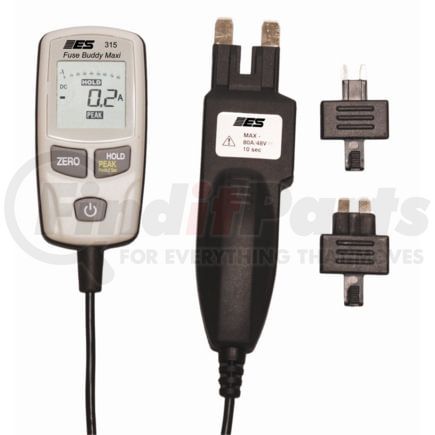

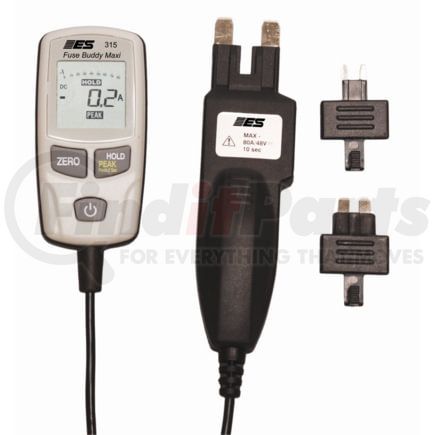

  • Now a Fuse Buddy tester for Maxi fuse circuits! Fuse Buddy Maxi can test up to 80 AMPS. There are numerous Heavy Duty & Automotive applications. With supplied adapters, #315 can also work with MINI and ATC circuits.

  • Easy access to measure amperage draws in MAXI, MINI & ATC circuits

  • Can measure up to 80 Amps DC on MAXI fuse circuits

  • MAXI test applications include: Anti-Lock Brake Circuits

  • Car Stereo Circuits

  • Power Distribution Circuits

  • Branch Circuits

  • Rear Window Defogger Circuits

  • Solar Power DC Branch Circuits

  • Traction Control Circuits

  • Solar Charge Controller Circuits

  • Heavy Duty Equipment Ciruits

  • Fire Engine Water Pumps

  • Features Unit PEAK HOLD and DATA HOLD functions

  • Deluxe LCD display features full ANALOG BAR GRAPH

  • Resolution: .1A (100 mA) - Accuracy: +2% of reading

  • Measurement range: 0 to 80 Amps / 48 Volts DC

  • Includes one 20 Amp MAXI fuse for use with MINI & ATC circuit testing

Since 1967, Electronic Specialties, Inc.® has been designing, engineering, and manufacturing high-quality test instruments for automotive, marine, HVAC, small engine, and industrial applications. Its innovative and time-saving products have already won various awards and patents, such as the Top 20 Tools in 2015 for its Starter Buddy, a tool used primarily in testing the health of the vehicle’s entire electrical starting/cranking circuit. Other award-winning products from this brand include the Max Fuse Buddy, Fuse Buddy Pro Test Kit, Low Current Probe/DMM, Load Pro, Relay Buddy, Short Buddy® Audible Trouble Shooter, and True RMS Low Current Clamp Meter. Electronic Specialties’ headquarters is located in Genoa City, Wisconsin.
