ICON K53194 Part Description
Manufacturer
Product Description

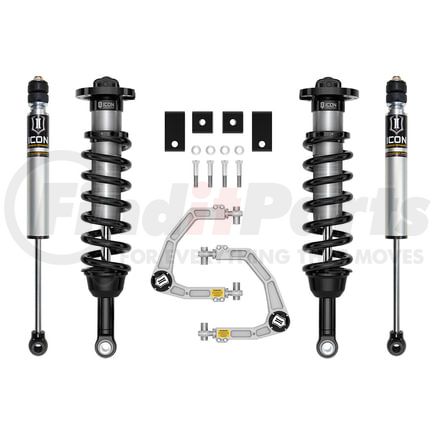

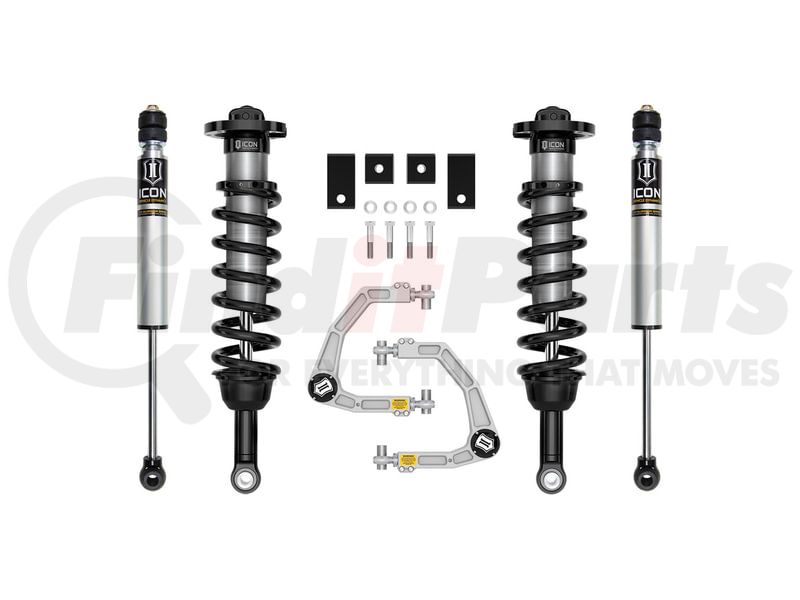

22-25 TUNDRA 1.25-3.5" STAGE 4 SUSPENSION SYSTEM BILLET
Features & Benefits
- Vehicle specific design for 2022-2025 Toyota Tundra
- 2.5 Series front coilovers with internal reservoirs for superior damping and vehicle control
- Adjustable front ride heights from 1.25-3.5” of front lift over stock when used with included billet UCAs
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
OEM Wheels & Tires Fitment: Yes
22-UP TUNDRA 1.25-3.5' STAGE 4 SUSP
ICON K53194 Specifications
Product Attributes
| Aap_uda_12 | EA |
| Aap_uda_22 | 1 |
| Aap_uda_4 | 55 |
| Active or Passive Suspension | Passive |
| Add-on Part | 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT |
| Adjustable Compression | No |
| Adjustable Control Arm | Yes |
| Adjustable Damping | No |
| Adjustable Rebound | No |
| Bushings Included | Yes |
| California Prop 65 Warning | Yes |
| Coil Quantity Front | 2 |
| Coils Quantity Front | 2 |
| Front Reservoir Style | Internal |
| Front Shock Body Diameter | 2.5 IN |
| Front Spring Rate Type | Linear |
| Grade Type | Performance |
| Maximum Lift | 3.5 IN |
| Maximum Lift Front | 3.5 IN |
| Minimum Lift Front | .75 IN |
| Mounting Hardware Included | Yes |
| OEM Wheels & Tires Fitment | Yes |
| Rear Reservoir Style | Internal |
| Rear Shock Body Diameter | 2 IN |
| Recommended Aftermarket Tires | 35" x 12.50" (Minor fender trimming and modifications may be required) |
| Recommended Aftermarket Wheels | 17x8.5" w/ 5.75” Backspace / 25mm Offset |
| Reservoir Style | Internal |
| Shocks Included | Yes |
| Spring Color | Black |
| Spring Material | Steel |
| Title | ICON 2022-2025 Toyota Tundra, 1.25-3.5" Lift, Stage 4, 2.5 Suspension System, Billet |
Additional Information
| Warranty Special | 1 Year-Shock Absorbers, Delta Joint Pros; Limited Lifetime-Coil Springs, Control Arms, Sway Bar Drop Brackets; Excludes Wearable Items |
| Warranty Special UOM | TX |
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| NAFTA Preference Criterion Code | C |
| UPC | 00840103420660 |
ICON K53194 Fits Vehicles
- Toyota Tundra (2022-2025)
