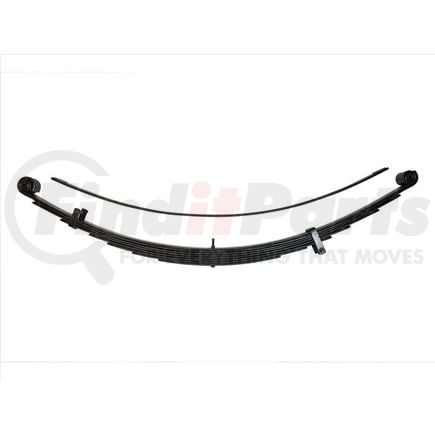

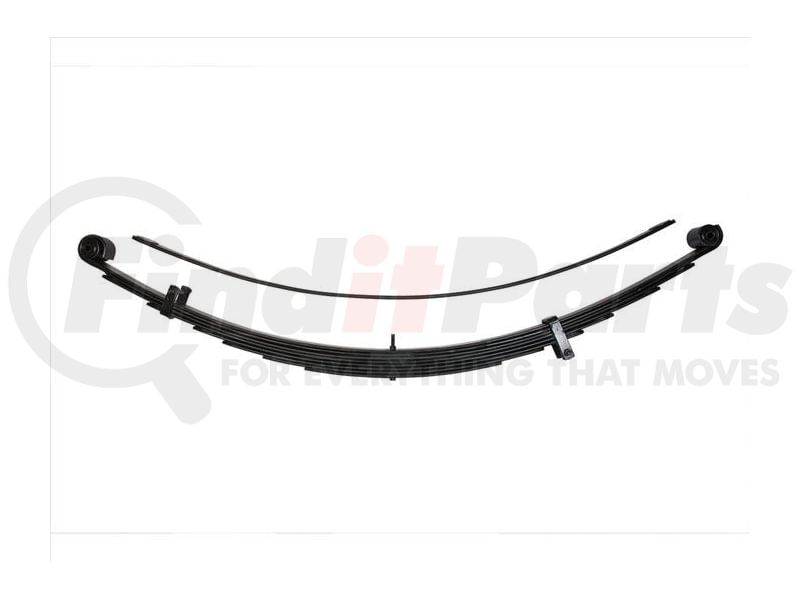

ICON 158509 Leaf Spring - Multi-Rate, RXT Rear Suspension System, with Add-In Leaf

★★★★★ (0)
Icon 158509 Leaf Spring Leaf Spring - Multi-Rate, RXT Rear Suspension System, with Add-In Leaf
Tap to view 1 more

$562.49

Limited availability at this price!

In Stock

Get as soon as Friday, Nov 20
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

ICON 158509 Part Description

Manufacturer

ICON

Product Description

Leaf Spring - Multi-Rate, RXT Rear Suspension System, with Add-In Leaf

Application Summary

2007-2021 Toyota Tundra

Features & Benefits

  • Three adjustable spring rate options allow tailored load response
  • Galvanized separators limit metal contact between individual leaves
  • Leaf tip inserts quiet inter-leaf contact during compression cycles
  • Potential wheel travel increase reaches up to twenty-five percent
  • “ICON 1K” testing confirms strength under extreme trail conditions

TECH NOTE: For best results (and increased wheel travel), use in conjunction with ICON RXT rear shocks.

Icon Leaf Spring

The Icon Leaf Spring introduces tunable suspension behavior by incorporating an add-in leaf that changes how the spring pack responds under varying load conditions. This configuration allows spring behavior to be altered without replacing the entire assembly, accommodating changing vehicle setups or payload demands. The included add-in leaf modifies overall pack stiffness while preserving the base spring geometry, offering measurable changes in how weight is managed during acceleration, braking, or uneven terrain. The Icon 158509 mounts directly into the factory location, allowing configuration changes without altering surrounding suspension components.

ICON 158509 Specifications

Product Attributes

Aap_uda_12EA
Aap_uda_221
Aap_uda_455
Add-on Part52050 - TOYOTA REAR 8.0" U-BOLT KIT
Axle Modification NeededNo
Axle OrientationRear
Axle Spring Perches IncludedNo
Bushing ColorBlack
Bushings IncludedYes
California Prop 65 WarningYes
ColorBlack
FinishPainted
Grade TypePerformance
Helper SpringNo
Leaf Quantity9
Leaf Width2.5 IN
Long Travel Shackles IncludedNo
MaterialSteel
Maximum Lift4 IN
Minimum Lift1.75 IN
Modification RequiredNo
Mounting Hardware IncludedYes
OEM Wheels & Tires FitmentYes
Spring ColorBlack
Spring MaterialSteel
Suspension Grade TypePerformance
TitleICON 2007-2021 Toyota Tundra, Multi-Rate RXT Leaf Spring Pack w/Add In Leaf
U Bolts IncludedNo
U-Bolt Spring Plates IncludedNo

Additional Information

Warranty SpecialLifetime
Warranty Special UOMLF
Country of Origin (Primary)US
Harmonized Tariff Code (Schedule B)8708807000
NAFTA Preference Criterion CodeC
UPC00840103408774

ICON 158509 Fits Vehicles

  • Toyota Tundra (2007-2021)
