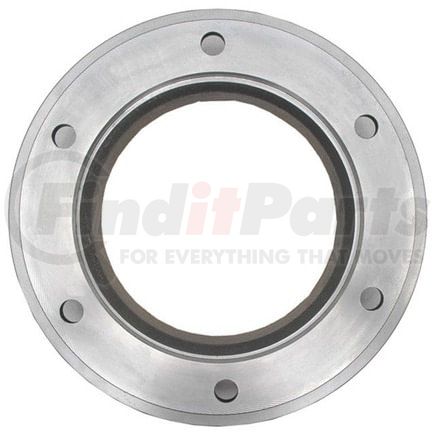

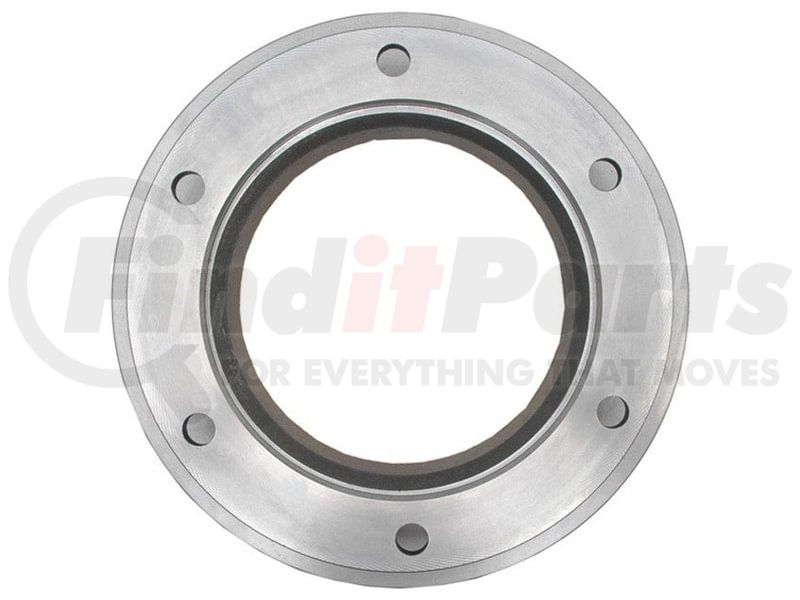

RAYBESTOS 8516 Raybestos Specialty - Truck Brake Rotor

(0)

$521.99

Limited availability at this price!

In Stock

Get it by Monday, Jul 13
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details

RAYBESTOS 8516 Part Description

Manufacturer

RAYBESTOS

Product Description

Raybestos Specialty - Truck Brake Rotor

Application Summary

1999-1984 Ford F800 Front, 1998-1984 Ford F700 Front, 1994-1984 Ford B700 Front, 1997-1984 Ford LN8000 Front, 1994-1984 Ford F600 Front, 1998-1990 Ford F700 LPO Front, 1997-1984 Ford LN9000 Front, 1997-1984 Ford LNT9000 Front

Features & Benefits

  • OE Fit, Form, and Function
  • Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
  • Cooling Vanes
  • We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
  • Coating
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
  • SAE Standard for Tensile Strength
  • Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
  • Turned Finish
  • A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box

RAYBESTOS 8516 Specifications

Product Attributes

ABS Tone Ring Included No
Center Hole Diameter 9.251 IN
Center Hole Diameter 235 MM
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.48 IN
Discard Thickness 37.6 MM
Harmonize Code 8708.30.5030
Mounting Bolt Hole Circle Diameter 11.25 IN
Mounting Bolt Hole Circle Diameter 285.75 MM
Mounting Bolt Hole Diameter 0.776 IN
Mounting Bolt Hole Diameter 19.7 MM
Mounting Bolt Hole Quantity 6
Nominal Thickness 1.535 IN
Nominal Thickness 39 MM
Outside Diameter 15.38 IN
Outside Diameter 390.65 MM
Overall Height 4.753 IN
Overall Height 120.75 MM
Salability Restrictions No
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 6
UNSPSC Code 25171715

Additional Information

Country of Origin (Primary) US
Canadian Harmonizing Tariff Code 8708309990
Harmonized Tariff Code (HTS) 8708305030
UPC 00030999079381

RAYBESTOS 8516 Cross References

BrandPart Number
12595-NP, 30999079381
ADVANCE AUTO PARTSYH141270, YH141270C, YH141270P
AMERICAN REMANUFACTURED89-50014
AUTOSPECIALTYAR8914, AR8914E
AUTOZONE5481, 5481DG
BENDIX141270
BRAKE HEADQUARTERSBR54810
BRAKEBEST8516, 8516RGS
CALIFORNIA DRUM & ROTOR125214
CENTRIC120.79014, 121.79014
CENTURY8504
Casting Numbers23-122691
Centric Parts120.79014, 121.79014
DAYTON WALTHER23-122691
DELPHIRB682
DURA CORPBR5481, BR901306
DuraGoBR901306
EIS BRAKESD8516
EUCLIDE-4228
EUROROTOR5481
FORDE3HZ1102A
FORMULA BLUE HYDRAULIC BRAKE PARTSE12584019
GREN636402
MERITOR23-122691-002, 23122691002
MIDLAND85861
MIGHTY DISTRIBUTING SYSTEM5481
NEWTEK AUTOMOTIVE5481
Newtek Automotive USA5481
PRONTOBR901306
QUALIS5481
ROCKHILL5481
THE UNIVERSAL GROUP102810
UAP5481
Universal102810
VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURINGX50569
WAGNERBD125214
WAGNER BRAKEBD125214
WEBB54351F, 54351P

RAYBESTOS 8516 Fits Vehicles

  • Ford L8000 (1984-1988)
  • Ford LTS9000 (1987)
  • Ford F-700 LPO (1990-1998)
  • Ford LNT800 (1984)
  • Ford FT900 (1985-1998)
  • Ford F-600 LPO (1993-1994)
  • Ford F-800 LPO (1995-1998)
  • Ford FT8000 (1983-1987)
  • Ford LNT8000 (1984-1989)
  • Ford LTL9000 (1984-1987, 1990)
  • Ford LT9000 (1990)
  • Ford LNT9000 (1984-1997)
  • Ford LN9000 (1984-1997)
  • Ford L9000 (1984-1994)
  • Ford L8000F (1987-1994)
  • Ford B-800 (1995-1998)
  • Ford B-7000 (1984-1987)
  • Ford F-8000 (1984-1987)
  • Ford C7000 (1984-1986)
  • Ford LN800 (1984-1985)
  • Ford LN700 (1984-1986)
  • Ford LN600 (1984-1985)
  • Ford B-600 (1986-1994)
  • Ford B-700 (1984-1994)
  • Ford LN7000 (1981-1997)
  • Ford LN8000 (1984-1997)
  • Ford L800 (1984-1985)
  • Ford FT800 (1983-1990)
  • Ford F-7000 (1984-1987)
  • Ford F-800 (1984-1999)
  • Ford F-700 (1984-1998)
  • Ford F-600 (1984-1994)
  • Ford CF8000 (1987-1997)
  • Ford CF7000 (1990-1996)
  • Ford C800 (1984-1989)
  • Ford C8000 (1984-1990)
  • Ford C700 (1984-1986)
