(888) 312-8812 Login SignupRAYBESTOS 680183 Raybestos Specialty - Truck Brake Rotor
$106.54
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 680183 Part Description
Manufacturer
Product Description

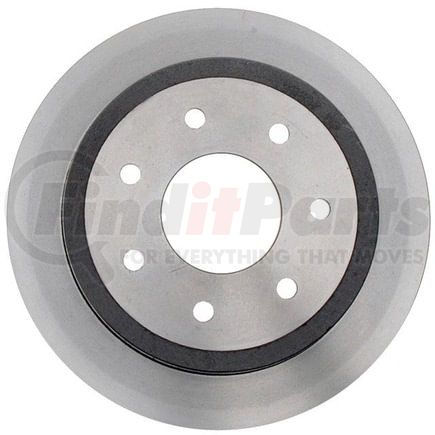

Raybestos Specialty - Truck Brake Rotor
Application Summary
2011-2004 Ford F-150 Rear, 2008-2006 Lincoln Mark LT Rear, 2010-2004 Ford Lobo Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 680183 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.547 IN |
| Center Hole Diameter | 90.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.728 IN |
| Discard Thickness | 18.5 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.906 IN |
| Mounting Bolt Hole Circle Diameter | 150 MM |
| Mounting Bolt Hole Diameter | 0.602 IN |
| Mounting Bolt Hole Diameter | 15.3 MM |
| Mounting Bolt Hole Quantity | 7 |
| Nominal Thickness | 0.787 IN |
| Nominal Thickness | 20 MM |
| Outside Diameter | 13.7 IN |
| Outside Diameter | 348 MM |
| Overall Height | 3.39 IN |
| Overall Height | 86.1 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 7 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730872216 |
RAYBESTOS 680183 Cross References
| Brand | Part Number |
|---|---|
| 77416716, 747730872216 | |
| ADVANCE AUTO PARTS | 145522, G09293SD, YH145522, YH145522C, YH145522P |
| AUTOXTRA | 126117, 80680183, AX54112 |
| AUTOZONE | 54112, 54112DG, DL54112 |
| BENDIX | 145522 |
| BOSCH | 20011536 |
| BRAKEBEST | 20010408, 20011536, 680183, 680183FZN, 680183R, 680183RGS, BD126117 |
| BREMBO | 09.B595.20, 27366 |
| Brembo | 09.B595.21 |
| CENTRIC | 120.65103, 121.65103, 126.65103CSL, 126.65103CSR, 126.65103SL, 126.65103SR, 127.65103L, 127.65103R, 320.65103, 320.65103F |
| Casting Numbers | 211580-C, 326004 |
| Centric Parts | 120.65103, 121.65103, 126.65103CSL, 126.65103CSR, 126.65103SL, 126.65103SR, 127.65103L, 127.65103R, 320.65103, 320.65103F |
| DURA CORP | BR54112 |
| DuraGo | BR54112 |
| FORD | 4L3Z2C026BB, 5L3Z2C026BA, 9L3Z2C026B, BL3Z2C026B |
| MAGMA PRODUCTS | PSR205217 |
| MIGHTY DISTRIBUTING SYSTEM | 54112 |
| MOTORCRAFT | BRR123 |
| Motorcraft | NBRR47 |
| NEOTEK | 1071030GF |
| NEWTEK AUTOMOTIVE | 54112 |
| Newtek Automotive USA | 54112 |
| PROMAX | 14-54112 |
| PRONTO | BR54112 |
| QUALIS | 42129, 54112 |
| STANDARD ROTORS AND DRUMS | 54112 |
| UAP | 54112 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51551 |
| WABCO | PS126117 |
| WABCO - Archived | PS126117 |
| WAGNER | BD126117, BD126117E |
| WAGNER BRAKE | BD126117, BD126117E |
| WINHERE | 6621022 |
| WORLDPAC | 1407-26844 |
RAYBESTOS 680183 Fits Vehicles
- Ford F-150 Heritage (2004)
- Ford Lobo (2004-2010)
- Lincoln Mark LT (2006-2008)
- Ford F-150 (2004-2011)
