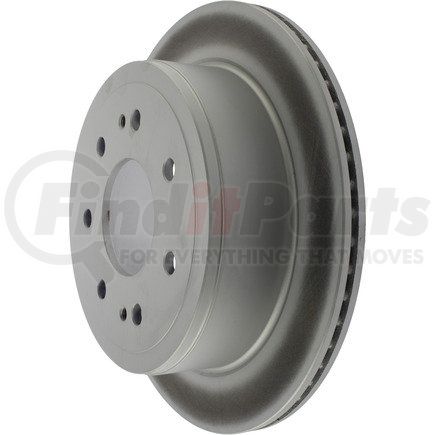

CENTRIC 320.65103 Centric GCX Rotor with Partial Coating

★★★★★ (0)
Centric 320.65103 Disc Brake Rotor Centric GCX Rotor with Partial Coating
CENTRIC
Tap to view 4 more

$136.43

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 320.65103 Part Description

Manufacturer

CENTRIC

Product Description

Centric GCX Rotor with Partial Coating

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
  • For the best corrosion resistance
  • RS200™ Zinc-Aluminum Rich Coating
  • Optimal Surface Finish
  • For consistent and confident braking from the first stop
  • Carbon Enhanved Advanced Metallurgy
  • For optimal heat transfer and structural strength
  • OE Vane Design and Plate Thickness
  • For heat capacity and strength
  • Low Initial Lateral Run-Out
  • For smooth vibration free stopping
  • Precision Balance
  • For vibration free performance

CENTRIC 320.65103 Specifications

Product Attributes

California Proposition 65 Text [cntrc]WARNING: Cancer and Reproductive Harm
Weight [cntrc] Kgs11.360
Vane Style [cntrc]Straight
Weight [cntrc] Lbs25.000
Disc Mounting [cntrc]Floating / DIH
Misc Holes [cntrc]2
Max Pb Drum Dia [cntrc] In9.024
Product Grade [cntrc]Premium
Max Pb Drum Dia [cntrc] Mm229.200
Discard Thickness18.500 MM
Discard Thickness0.728 IN
Nominal Thickness20.000 MM
Nominal Thickness0.787 IN
Disc FinishPartially Coated
Hat FinishCoated
Overall Height86.000 MM
Overall Height3.386 IN
Outside Diameter348.000 MM
Outside Diameter13.701 IN
ABS Tone Ring IncludedNo
Surface TypeSmooth
Solid Or Vented Type RotorVented
Nominal Drum Diameter228.400 MM
Nominal Drum Diameter8.992 IN
Bearings IncludedNo
Center Hole Diameter90.000 MM
Center Hole Diameter3.543 IN
Mounting Bolt Hole Circle Diameter150.000 MM
Mounting Bolt Hole Circle Diameter5.906 IN
Stud/Lug Hole Quantity7
Stud/Lug Hole Diameter15.300 MM
Stud/Lug Hole Diameter0.602 IN

Additional Information

Harmonized Tariff Code (HTS)8708305030
NAFTA Preference Criterion CodeB
Country of Origin (Primary)CN
UPC00889590425734

CENTRIC 320.65103 Cross References

BrandPart Number
MAGMA PRODUCTSPSR205217
RAYBESTOS680183, 680183FZN, 680183R
Raybestos Brakes680183, 680183FZN, 680183R
