(888) 312-8812 Login SignupRAYBESTOS 96229 Raybestos Specialty - Truck Brake Rotor
$127.47
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96229 Part Description
Manufacturer
Product Description

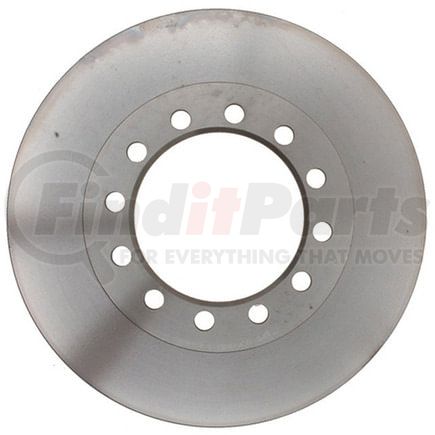

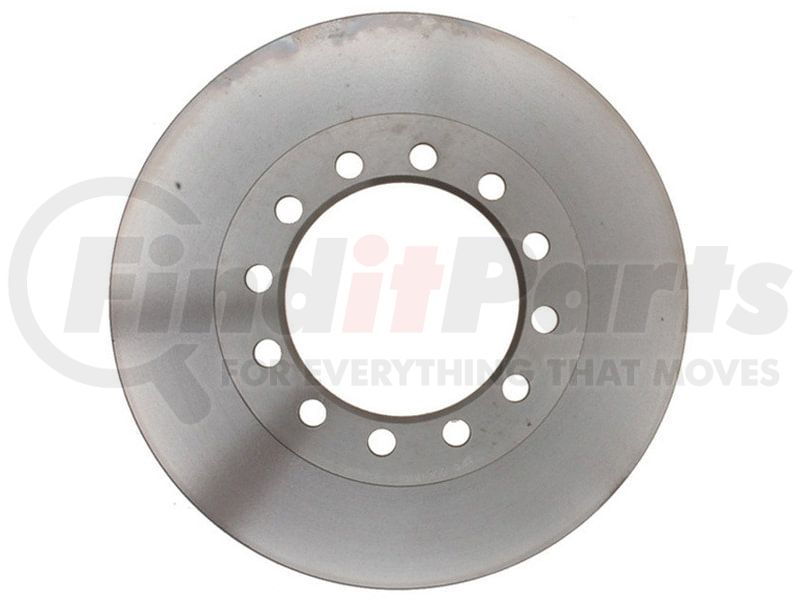

Raybestos Specialty - Truck Brake Rotor
Application Summary
1997-1992 GMC W4500 Forward Front, 1997-1987 Chevrolet W4500 Tiltmaster Front, 1997-1995 Chevrolet W3500 Tiltmaster Front, 1997-1995 GMC W3500 Forward Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 96229 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 4.334 IN |
| Center Hole Diameter | 110.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.26 IN |
| Discard Thickness | 32 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 5.354 IN |
| Mounting Bolt Hole Circle Diameter | 136 MM |
| Mounting Bolt Hole Diameter | 5.354 IN |
| Mounting Bolt Hole Diameter | 136 MM |
| Mounting Bolt Hole Quantity | 12 |
| Nominal Thickness | 1.38 IN |
| Nominal Thickness | 35.05 MM |
| Outside Diameter | 11.1 IN |
| Outside Diameter | 281.95 MM |
| Overall Height | 2.465 IN |
| Overall Height | 62.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 12 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | US |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999310682 |
RAYBESTOS 96229 Cross References
| Brand | Part Number |
|---|---|
| 218-1187, 30999310682 | |
| ADVANCE AUTO PARTS | 141730, 802262, YH141730, YH141730P |
| AUTOSPECIALTY | JBR566E, JBR903 |
| AUTOXTRA | AX55035 |
| AUTOZONE | 55035 |
| BENDIX | 141730, R449817 |
| BRAKE HEADQUARTERS | BR55035 |
| BRAKEBEST | 96229, 96229R, 96229RGS, BD125324 |
| CALIFORNIA DRUM & ROTOR | 125324 |
| CENTRIC | 120.76001, 121.76001, 127.76001L, 127.76001R, 320.76001 |
| CENTURY | 9859 |
| Casting Numbers | 210838-C, 325805 |
| Centric Parts | 120.76001, 121.76001, 127.76001L, 127.76001R, 320.76001 |
| DANA COMMERCIAL VEHICLE SERVICE PARTS | R922392 |
| DELPHI | RB747 |
| DURA CORP | BR55035 |
| DuraGo | BR31297, BR55035 |
| EUCLID | E-9817 |
| EUROROTOR | IS996 |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12581006 |
| GM | 97015857, 97095152 |
| GREN | 671802 |
| General Motors | 97015857, 97095152 |
| ISUZU | 8970158570, 8970951522 |
| MERITOR | R449817 |
| MIGHTY DISTRIBUTING SYSTEM | 55035 |
| NEWTEK AUTOMOTIVE | 55035 |
| Newtek Automotive USA | 55035 |
| PEP BOYS | 55035G |
| PROMAX | 14-55035 |
| PRONTO | BR55035 |
| QUALIS | 55035 |
| QUALITEE INTERNATIONAL | 64-98-020 |
| QUALITY BRAND | 55035, Q9035 |
| STANDARD ROTORS AND DRUMS | 55035 |
| THE UNIVERSAL GROUP | 101921 |
| TRUSTAR | 498020, R98020 |
| UAP | 55035 |
| Universal | 101921 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51091 |
| WAGNER | BD125324 |
| WAGNER BRAKE | BD125324, BD125627 |
| WINHERE | 442621, YH2621 |
RAYBESTOS 96229 Fits Vehicles
- Chevrolet W4500 Tiltmaster (1987-1997)
- GMC W4500 Forward (1992-1997)
- Isuzu NPR (1989)
- Chevrolet W3500 Tiltmaster (1995-1997)
- GMC W3500 Forward (1995-1997)
