(888) 312-8812 Login SignupRAYBESTOS 66823 Raybestos Specialty - Truck Brake Rotor
MSRP: $171.02
$12999
Save $41.03
Limited availability at this price!
In Stock
Get it by Monday, Aug 10
RAYBESTOS 66823 Part Description
Manufacturer
Product Description

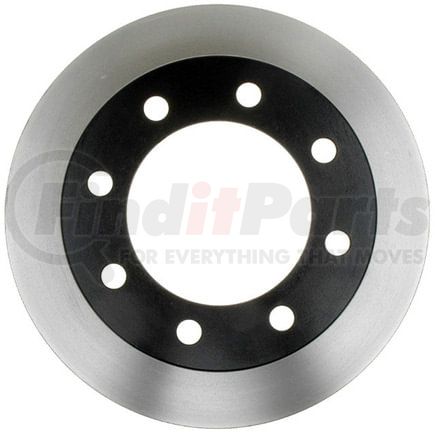

Raybestos Specialty - Truck Brake Rotor
Application Summary
2004-1999 Ford F-250 Super Duty Rear, 2004-1999 Ford F-350 Super Duty Rear, 2005-2000 Ford Excursion Rear, 2001-2000 Ford E-450 Econoline Super Duty Rear
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 66823 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 5 IN |
| Center Hole Diameter | 127 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 6.693 IN |
| Mounting Bolt Hole Circle Diameter | 170 MM |
| Mounting Bolt Hole Diameter | 0.636 IN |
| Mounting Bolt Hole Diameter | 16.15 MM |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 1.185 IN |
| Nominal Thickness | 30.1 MM |
| Outside Diameter | 12.83 IN |
| Outside Diameter | 325.9 MM |
| Overall Height | 3.87 IN |
| Overall Height | 98.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 8 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730523590 |
RAYBESTOS 66823 Cross References
| Brand | Part Number |
|---|---|
| 74085094, 747730523590 | |
| ADVANCE AUTO PARTS | 145258, YH145258, YH145258C, YH145258P |
| AMERICAN REMANUFACTURED | 89-42071 |
| AUTOPARTSOURCE | 592145 |
| AUTOSPECIALTY | AR8571, AR8571E |
| AUTOXTRA | 125660, 8066823, AX54074 |
| AUTOZONE | 54074, 54074DG, DL54074 |
| BENDIX | 145258 |
| BRAKEBEST | 20010310, 66823, 66823FZN, 66823PER, 66823R, 66823RGS, 81-125660, BD125660 |
| BREMBO | 09.8860.10, 09.8860.85, 27107, 09.8860.11 |
| Bridgestone | 7006422 |
| CALIFORNIA DRUM & ROTOR | 125660 |
| CENTRIC | 120.65071, 120.65071CRY, 121.65071, 125.65071, 125.65071CRY, 126.65071SL, 126.65071SR, 126.65071CSL, 126.65071CSR, 127.65071CL, 127.65071CR, 127.65071L, 127.65071R, 128.65071CL, 128.65071CR, 128.65071L, 128.65071R, 227.65071L, 227.65071R, 320.65071, 320.65071F, 321.65071 |
| CONTINENTAL-CONTITECH | CW30700 |
| Casting Numbers | 211236-C, 325500, F81A2C026CA, F81A2C026CB, KH130773 |
| Centric Parts | 120.65071, 120.65071CRY, 121.65071, 125.65071, 125.65071CRY, 126.65071CSL, 126.65071CSR, 126.65071SL, 126.65071SR, 127.65071CL, 127.65071CR, 127.65071L, 127.65071R, 128.65071CL, 128.65071CR, 128.65071L, 128.65071R, 227.65071L, 227.65071R, 320.65071, 320.65071F, 321.65071 |
| DURA CORP | BR54074, BR5407402 |
| DuraGo | BR54074, BR5407402, BR54074-02 |
| EUCLID | E-12337 |
| FORD | F81Z2C026CA, YC3Z2C026BB |
| FORMULA BLUE HYDRAULIC BRAKE PARTS | E12570076 |
| GREN | 654302 |
| GUARDIAN | 52-125660 |
| MAGMA PRODUCTS | PSR207287 |
| MIGHTY DISTRIBUTING SYSTEM | 54074 |
| MONROE BRAKES | BD125660 |
| MOTORCRAFT | BRR94 |
| NEOTEK | 107196GF |
| NEWTEK AUTOMOTIVE | 54074 |
| Newtek Automotive USA | 54074 |
| PARTS MASTER | P125660 |
| POWERSTOP | AR8571EVC |
| PROMAX | 14-54074 |
| PRONTO | BR54074 |
| Parts Master | 125660 |
| QUALIS | 54074 |
| QUALITEE INTERNATIONAL | 64-92-145 |
| QUALITY BRAND | 54074, Q4117 |
| STANDARD ROTORS AND DRUMS | 54074 |
| THE UNIVERSAL GROUP | 102022, 102002 |
| TRUSTAR | 492145, R92145 |
| TopNotch | TN66823GEO |
| UAP | 54074 |
| Ultra Brake | 54418 |
| Universal | 102002, 102022 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51293 |
| WABCO | PS125660 |
| WABCO - Archived | PS125660 |
| WAGNER | BD125660, BD125660E |
| WAGNER BRAKE | BD125660, BD125660E, BD126368 |
| WINHERE | 662651, YH2651 |
| WORLDPAC | 1407-25410, 1427-731950 |
RAYBESTOS 66823 Fits Vehicles
- Ford F-250 (2000-2004, 2006-2008)
- Ford E-450 Econoline Super Duty (2000-2001)
- Ford F-350 Super Duty (1999-2004)
- Ford F-250 Super Duty (1999-2004)
- Ford Excursion (2000-2005)
