(888) 312-8812 Login SignupRAYBESTOS 96524 Raybestos Specialty - Street Performance Brake Rotor
$120.07
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96524 Part Description
Manufacturer
Product Description

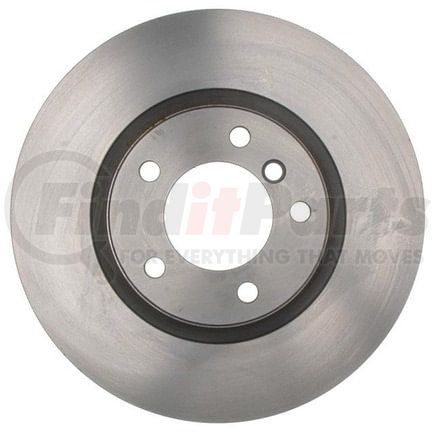

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2002-1998 BMW Z3 Front Left, 1999-1994 BMW M3 Front Left
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 96524 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.11 IN |
| Center Hole Diameter | 79 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.039 IN |
| Discard Thickness | 26.4 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.575 IN |
| Mounting Bolt Hole Diameter | 14.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.1 IN |
| Nominal Thickness | 27.95 MM |
| Outside Diameter | 12.4 IN |
| Outside Diameter | 314.95 MM |
| Overall Height | 2.07 IN |
| Overall Height | 52.6 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | DE |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999946461 |
RAYBESTOS 96524 Cross References
| Brand | Part Number |
|---|---|
| 030999946461, 120.34038 | |
| ADVANCE AUTO PARTS | 145084, YH145084, YH145084C |
| AMERICAN REMANUFACTURED | 89-62039 |
| ATE BRAKE PRODUCTS | SP28198, 428198 |
| AUTOSPECIALTY | EBR466, EBR466E |
| AUTOZONE | 34085, 34085DG |
| BECK/ARNLEY | 083-2654 |
| BENDIX | 145084 |
| BMW | 34112227171, 34112227737 |
| BRAKE HEADQUARTERS | BR05162 |
| BRAKEBEST | 15010083, 96524, 96524R, 96524RGS, BD125792 |
| BREMBO | 09.5934.10, 25419 |
| Brembo | 09.5934.11 |
| CENTRIC | 120.34038, 121.34038, 125.34038, 125.34038CRY, 126.34038CSL, 126.34038SL, 127.34038CL, 127.34038L, 128.34038CL, 128.34038L, 226.34038SLT, 227.34038L |
| Casting Numbers | 211057-C, 325865 |
| Centric Parts | 120.34038, 121.34038, 125.34038, 125.34038CRY, 126.34038CSL, 126.34038SL, 127.34038CL, 127.34038L, 128.34038CL, 128.34038L, 226.34038SLT, 227.34038L |
| DELPHI | RB506 |
| DURA CORP | BR34085 |
| DuraGo | BR34085 |
| Dynamic Friction Company | 604-31036D |
| EIS BRAKES | D17999, D17799 |
| EUROROTOR | BM730L |
| GREN | 403602 |
| MIDAS | BR2063 |
| MIGHTY DISTRIBUTING SYSTEM | 34085 |
| MONROE BRAKES | BD125792 |
| NEWTEK AUTOMOTIVE | 34085 |
| Newtek Automotive USA | 34085 |
| QUALIS | 34085 |
| QUALITY BRAND | 34085, Q197 |
| QUINTON HAZELL | BDC4549 |
| THE UNIVERSAL GROUP | 111064 |
| TRW | 2731 |
| UAP | 34085 |
| Universal | 111064 |
| VAICO | V2080030 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51038 |
| WAGNER | BD125792 |
| WAGNER BRAKE | BD125792 |
RAYBESTOS 96524 Fits Vehicles
- BMW Z3 (1998-2002)
- BMW M3 (1994-1999)
