(888) 312-8812 Login SignupRAYBESTOS 980221 Raybestos Specialty - Street Performance Brake Rotor
$74.50
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 980221 Part Description
Manufacturer
Product Description

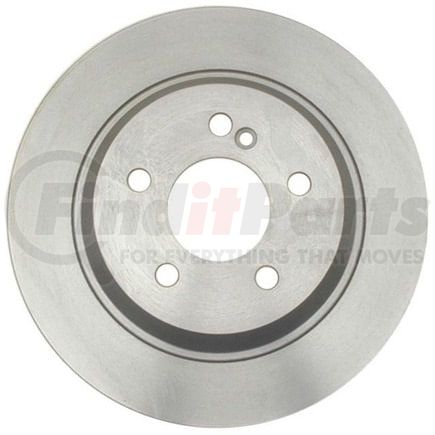

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2009-2003 Mercedes-Benz E320 Rear, 2006 Mercedes-Benz E350 Rear, 2006-2003 Mercedes-Benz E500 Rear, 2016-2014 Mercedes-Benz E250 Rear, 2009-2008 Mercedes-Benz E300 Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes:Black fusion coating on the rotor hatGrey Fusion 4.0® coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980221 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.638 IN |
| Center Hole Diameter | 67 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.327 IN |
| Discard Thickness | 8.3 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112 MM |
| Mounting Bolt Hole Diameter | 4.409 IN |
| Mounting Bolt Hole Diameter | 112 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10 MM |
| Outside Diameter | 11.811 IN |
| Outside Diameter | 300 MM |
| Overall Height | 2.689 IN |
| Overall Height | 68.3 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | IT |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00747730873626 |
RAYBESTOS 980221 Cross References
| Brand | Part Number |
|---|---|
| 747730873626, 120.35061 | |
| ADVANCE AUTO PARTS | YH145482, YH145482C, YH145482P |
| ATE BRAKE PRODUCTS | SP10278, 410278 |
| AUTOXTRA | AX900614 |
| AUTOZONE | 34234, 34234DG |
| BENDIX | 145482 |
| BRAKEBEST | 36010977, 980221, 980221R, 980221RGS |
| BREMBO | 08.9584.11, 25773 |
| CENTRIC | 120.35061, 121.35061, 125.35061, 125.35061CRY, 126.35061CSL, 126.35061CSR, 126.35061SL, 126.35061SR, 127.35061L, 127.35061R, 128.35061CL, 128.35061CR, 128.35061L, 128.35061R, 320.35061C, 320.35061H |
| Centric Parts | 120.35061, 121.35061, 125.35061, 125.35061CRY, 126.35061CSL, 126.35061CSR, 126.35061SL, 126.35061SR, 127.35061L, 127.35061R, 128.35061CL, 128.35061CR, 128.35061L, 128.35061R, 320.35061C, 320.35061H |
| DURA CORP | BR34234, BR900614, BR90061402 |
| DuraGo | 900614, BR34234, BR900614 |
| MAGMA PRODUCTS | PSR383049 |
| MERCEDES-BENZ | 0004231012, 000423101207, 14AAJ619, 2114230712 |
| MIGHTY DISTRIBUTING SYSTEM | 34234 |
| NAPA BRAKES | SDK6365 |
| NEOTEK | 1065504GF |
| NEWTEK AUTOMOTIVE | 34234 |
| Newtek Automotive USA | 34234 |
| Omnicraft | QBRR645 |
| PILENGA | 5900 |
| PROMAX | 14-34234 |
| PRONTO | BR900614 |
| QUALIS | 34234 |
| TRW | 4263 |
| UAP | 34234 |
| VAICO | V3040044 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51632 |
| WABCO | PS900614 |
| WABCO - Archived | PS900614 |
| WAGNER | BD180134 |
| WAGNER BRAKE | BD180134 |
| WINHERE | 661464 |
| WORLDPAC | 1407-77154 |
RAYBESTOS 980221 Fits Vehicles
- Mercedes-Benz E200 (2012-2016)
- Mercedes-Benz E250 (2011-2016)
- Mercedes-Benz E300 (2008-2009)
- Mercedes-Benz E350 (2006)
- Mercedes-Benz E500 (2003-2006)
- Mercedes-Benz E320 (2003-2009)
