RAYBESTOS 980504 Part Description
Manufacturer
Product Description

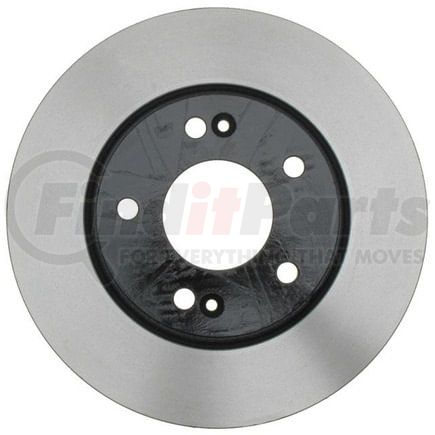

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2010-2007 Hyundai Elantra Front
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 980504 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.72 IN |
| Center Hole Diameter | 69.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.945 IN |
| Discard Thickness | 24 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.024 IN |
| Nominal Thickness | 26 MM |
| Outside Diameter | 10.827 IN |
| Outside Diameter | 275 MM |
| Overall Height | 1.868 IN |
| Overall Height | 47.45 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352540558 |
RAYBESTOS 980504 Cross References
| Brand | Part Number |
|---|---|
| AST24661, 829352540558 | |
| ADVANCE AUTO PARTS | YH200947, YH200947C, YH200947P |
| ADVICS | R6F227U |
| API | 1407-75162 |
| ATE BRAKE PRODUCTS | 426157 |
| AUTOPARTSOURCE | 582280 |
| AUTOXTRA | AX900442, AX900800 |
| AUTOZONE | 70100DG |
| AutoZone | 70100 |
| BENDIX | PRT5921 |
| BOSCH | 28010819 |
| BRAKEBEST | 28010819, 980504, 980504FZN, 980504R, 980504RGS |
| BREMBO | 09.9997.20 |
| CENTRIC | 120.51023, 120.51023CRY, 121.51023, 126.51023CSL, 126.51023CSR, 126.51023SL, 126.51023SR, 127.51023L, 127.51023R, 320.51023, 321.51023 |
| Casting Numbers | 326351 |
| Centric Parts | 120.51023, 120.51023CRY, 121.51023, 126.51023CSL, 126.51023CSR, 126.51023SL, 126.51023SR, 127.51023L, 127.51023R, 320.51023, 321.51023 |
| DURA CORP | BR31453, BR900442, BR90044202, BR900800 |
| DuraGo | 900442, BR900442, BR90044202, BR900800, BR900800-01 |
| Hyundai | 517122H000 |
| MAGMA PRODUCTS | PSR283027 |
| MONROE BRAKES | BD126533 |
| NEOTEK | 1069010GF |
| NEWTEK AUTOMOTIVE | 31453, R800 |
| Newtek Automotive USA | 31453, R800 |
| Omnicraft | QBRR164 |
| POWERSTOP | JBR1325EVC |
| PROMAX | 14-31453, 20-31453 |
| PRONTO | BR900442 |
| Qualis | 44656 |
| TRW | 4922 |
| TopNotch | TN980504GEO |
| UAP | 31453 |
| Ultra Brake | HY-367 |
| WABCO | PS126533 |
| WABCO - Archived | PS126533 |
| WAGNER | BD126533, BD126533E |
| WAGNER BRAKE | BD126533, BD126533E |
| WINHERE | 6620914 |
| WORLDPAC | 1407-75162 |
RAYBESTOS 980504 Fits Vehicles
- Hyundai Elantra (2007-2010)
