RAYBESTOS 9841R Part Description
Manufacturer
Product Description

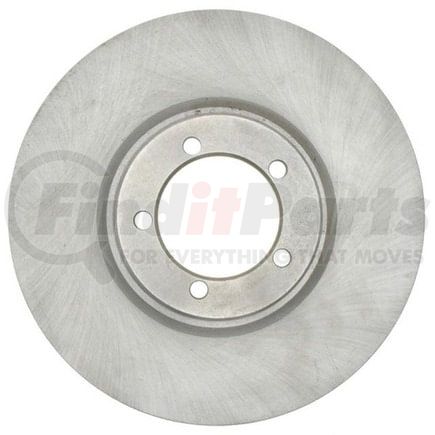

Raybestos R-Line Brake Rotor
Application Summary
1976-1975 BMW 530i Front, 1976-1975 BMW 3.0Si Front, 1971 BMW 2.8 Bavaria Front, 1971-1968 BMW 2500 Front, 1972-1968 BMW 2800 Front, 1971-1968 BMW 2800CS Front, 1974-1971 BMW 3.0CS Front, 1974-1971 BMW 3.0CSi Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9841R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.913 IN |
| Center Hole Diameter | 74 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.437 IN |
| Discard Thickness | 11.1 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Mounting Bolt Hole Circle Diameter | 120 MM |
| Mounting Bolt Hole Diameter | 0.575 IN |
| Mounting Bolt Hole Diameter | 14.6 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.498 IN |
| Nominal Thickness | 12.65 MM |
| Outside Diameter | 11.02 IN |
| Outside Diameter | 279.9 MM |
| Overall Height | 3.07 IN |
| Overall Height | 78 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352467817 |
RAYBESTOS 9841R Cross References
| Brand | Part Number |
|---|---|
| ASH23366, 829352467817 | |
| ADVANCE AUTO PARTS | 830232, YH145500 |
| AMERICAN REMANUFACTURED | 89-62003, 89-62014 |
| AUTOSPECIALTY | EBR014, EBR014E, EBR204 |
| AUTOZONE | 34026 |
| AXXIS | 085-5140 |
| BECK/ARNLEY | 083-1545, 083-0224 |
| BENDIX | 145500 |
| BMW | 34111100541, 34111104017, 34111104541, 34111152295, 34111156124, 34111156128 |
| BRAKE HEADQUARTERS | BR05135 |
| BRAKEBEST | 9841, 9841R, 9841RGS |
| BREMBO | 08.2271.10, 08.3712.10, 25027, 25074 |
| CENTRIC | 120.34003, 121.34003, 121.34014, 121.34005 |
| Casting Numbers | 326071 |
| Centric Parts | 120.34003, 121.34003, 121.34014 |
| DAYTON WALTHER | D7098, D7220 |
| DURA CORP | BR34026 |
| EIS BRAKES | D17454 |
| EUROROTOR | BM715 |
| FRATELLI POLETTI | 48YH |
| GREN | 402801 |
| INTERBRAKES | BW021P |
| MCI | 4071 |
| MIDAS | BR1421 |
| MIGHTY DISTRIBUTING SYSTEM | 34026 |
| NEWTEK AUTOMOTIVE | 34026 |
| NORRBIT | 900-26 |
| Newtek Automotive USA | 34026 |
| PILENGA | 5117 |
| QUALIS | 34026 |
| QUINTON HAZELL | BDC3290, BDC3942 |
| TEKNOMAC | 14650 |
| THE UNIVERSAL GROUP | 111923 |
| UAP | 34026 |
| Universal | 111923 |
| VERA | 3400645, 3404171 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50974 |
RAYBESTOS 9841R Fits Vehicles
- BMW 2.8 Bavaria (1971)
- BMW 2500 (1968-1971)
- BMW 2800 (1968-1972)
- BMW 2800CS (1968-1971)
- BMW 3.0CS (1971-1974)
- BMW 3.0CSL (1971)
- BMW 3.0CSi (1971-1974)
- BMW 3.0S (1971-1974)
- BMW 3.0Si (1975-1976)
- BMW 530i (1975-1976)
- BMW Bavaria (1972-1974)
