(888) 312-8812 Login SignupRAYBESTOS 680282R Raybestos R-Line Brake Rotor
MSRP: $118.85
$8949
Save $29.36
Limited availability at this price!
In Stock
Get it by Tuesday, Aug 25
RAYBESTOS 680282R Part Description
Manufacturer
Product Description

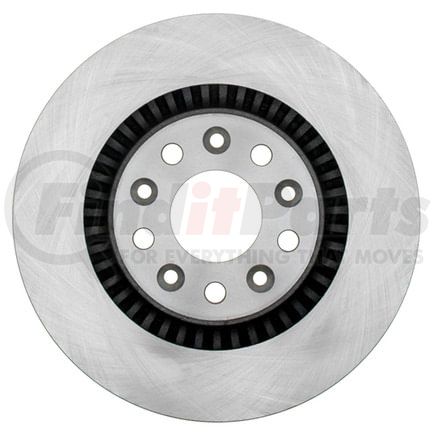

Raybestos R-Line Brake Rotor
Application Summary
2007-2005 Ford Five Hundred Front, 2007-2005 Ford Freestyle Front, 2007-2005 Mercury Montego Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 680282R Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 1.043 IN |
| Discard Thickness | 26.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.566 IN |
| Mounting Bolt Hole Diameter | 14.4 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.103 IN |
| Nominal Thickness | 28 MM |
| Outside Diameter | 12.413 IN |
| Outside Diameter | 315.3 MM |
| Overall Height | 1.849 IN |
| Overall Height | 46.95 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352589861 |
RAYBESTOS 680282R Cross References
| Brand | Part Number |
|---|---|
| BD180249, 829352589861 | |
| ADVANCE AUTO PARTS | YH145666, YH145666C, YH145666P |
| AUTOPARTSOURCE | 592665 |
| AUTOXTRA | AX54126 |
| AUTOZONE | 42145, 42145DG |
| BOSCH | 20010398 |
| BRAKEBEST | 20010398, 680282, 680282FZN, 680282R, 680282RGS |
| BREMBO | 09.A400.10 |
| Brembo | 09.A400.11 |
| Bridgestone | 7009511 |
| CENTRIC | 120.61080, 121.61080, 126.61080CSL, 126.61080CSR, 126.61080SL, 126.61080SR, 127.61080CL, 127.61080CR, 127.61080L, 127.61080R, 227.61080L, 227.61080R, 320.61080, 320.61080F, 120.6108 |
| Casting Numbers | 211668-C, 326238, 5F931125 |
| Centric Parts | 120.61080, 121.61080, 126.61080CSL, 126.61080CSR, 126.61080SL, 126.61080SR, 127.61080CL, 127.61080CR, 127.61080L, 127.61080R, 227.61080L, 227.61080R, 320.61080, 320.61080F |
| DURA CORP | BR54126, BR5412602 |
| DuraGo | BR54126, BR5412602 |
| FORD | 5F9Z1125BA, 5F9Z1125C |
| MAGMA PRODUCTS | PMR203073 |
| MIGHTY DISTRIBUTING SYSTEM | 54126 |
| MONROE BRAKES | BD126196 |
| MOTORCRAFT | BRR136, BRR248 |
| Motorcraft | NBRR34 |
| NEWTEK AUTOMOTIVE | 54126 |
| Newtek Automotive USA | 54126 |
| POWERSTOP | AR8179EVC |
| PROMAX | 14-54126 |
| QUALIS | 42145 |
| QUALITY BRAND | Q4205 |
| Qualis | 42267, 54169 |
| UAP | 2054126, 54126 |
| Ultra Brake | 54218 |
| WABCO | PS126196 |
| WABCO - Archived | PS126196 |
| WAGNER | BD126196 |
| WAGNER BRAKE | BD126196, BD126196E |
| WINHERE | 6620551 |
RAYBESTOS 680282R Fits Vehicles
- Mercury Montego (2005-2007)
- Ford Freestyle (2005-2007)
- Ford Five Hundred (2005-2007)
