(888) 312-8812 Login SignupRAYBESTOS 9016R Raybestos R-Line Brake Rotor
$24.91
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >

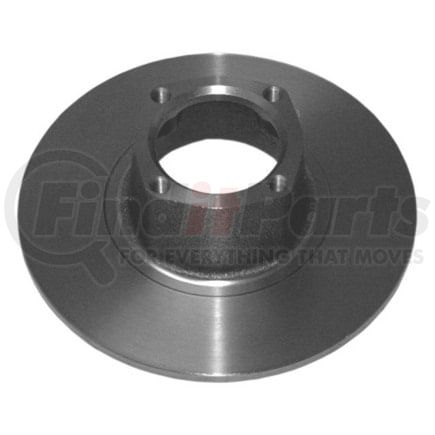

RAYBESTOS 9016R Part Description
Manufacturer
Product Description
Raybestos R-Line Brake Rotor
Application Summary
1979-1963 MG Midget Front, 1967-1961 Austin Healey 3000 Front
Features & Benefits
- OE Fit, Form, and Function
- Developed from OE samples and made with G3000-qualified material, ensuring OE fit, form and function for dependable braking.
- SAE Standard
- R-Line Rotors meet the SAE standard for tensile strength, providing structural integrity and a maximum service life.
- Low Initial Lateral Runout and Thickness Variation
- R-Line Rotors have a small parameter lateral runout and a thickness variation ensuring less pedal pulsation, less brake noise, and an extended pad life.
- Mill Balanced Edges
- R-Line Rotors are mill balanced and 100 percent validated. This helps minimize the thickness variation on the rotor and leads to minimized vibration and smoother stopping.
RAYBESTOS 9016R Specifications
Product Attributes
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.29 IN |
| Discard Thickness | 7.35 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 3.189 IN |
| Mounting Bolt Hole Circle Diameter | 81 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.3 IN |
| Nominal Thickness | 7.6 MM |
| Outside Diameter | 8.26 IN |
| Outside Diameter | 209.8 MM |
| Overall Height | 2.35 IN |
| Overall Height | 59.7 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00829352465622 |
RAYBESTOS 9016R Cross References
| Brand | Part Number |
|---|---|
| ABD6-116, 829352465622 | |
| ACCURATE | 22611 |
| ADVANCE AUTO PARTS | 200427, 830992, YH200427 |
| AMERICAN REMANUFACTURED | 89-76003 |
| AUTOSPECIALTY | EBR009, EBR009E, EBR010 |
| AUTOXTRA | 61633049 |
| AUTOZONE | 3428 |
| AXXIS | 085-5570 |
| BECK/ARNLEY | 083-0992 |
| BRAKEBEST | 9016, 9016R, 9016RGS |
| BREMBO | 08.1509.10 |
| CALIFORNIA DRUM & ROTOR | 60515 |
| CENTRIC | 120.25000, 121.25000 |
| CENTURY | 9016 |
| CERTIFIED DIVISION | R22, R42 |
| CEW | 1108000 |
| Casting Numbers | 326048 |
| Centric Parts | 120.25000, 121.25000 |
| DAYTON WALTHER | D7041 |
| EIS BRAKES | D9016 |
| EUROROTOR | BL201 |
| FRATELLI POLETTI | 21YE-A, 27YE-A |
| GIRLING | GR101 |
| KELSEY HAYES | 14874 |
| MG | BTA383 |
| MIDAS | BR1177 |
| MIGHTY DISTRIBUTING SYSTEM | 3428 |
| MOPAR | 3-1337 |
| NEWTEK AUTOMOTIVE | 3428 |
| Newtek Automotive USA | 3428 |
| QUALITEE INTERNATIONAL | 64-34-020 |
| Qualis | 3428 |
| TEKNOMAC | 10480 |
| THE UNIVERSAL GROUP | 144022 |
| TRUSTAR | 434020, R34020 |
| Universal | 144022 |
| VERA | 3400561 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50147 |
| WAGNER BRAKE | BD60515 |
| WORLDPARTS | W70-159 |
RAYBESTOS 9016R Fits Vehicles
- Austin Healey 3000 (1961-1967)
- Austin Healey Sprite (1964-1969)
- MG Midget (1962-1979)
