(888) 312-8812 Login SignupRAYBESTOS 680035 Raybestos Specialty - Street Performance Brake Rotor
$51.54
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 680035 Part Description
Manufacturer
Product Description

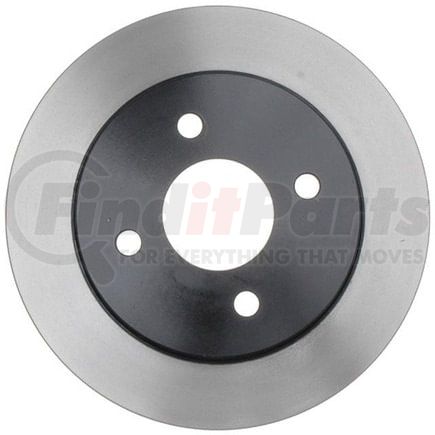

Raybestos Specialty - Street Performance Brake Rotor
Application Summary
2007-2000 Ford Focus Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680035 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.505 IN |
| Center Hole Diameter | 63.65 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.35 IN |
| Discard Thickness | 8.9 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.25 IN |
| Mounting Bolt Hole Circle Diameter | 107.95 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.395 IN |
| Nominal Thickness | 10.05 MM |
| Outside Diameter | 9.95 IN |
| Outside Diameter | 252.75 MM |
| Overall Height | 1.3 IN |
| Overall Height | 33 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00030999327840 |
RAYBESTOS 680035 Cross References
| Brand | Part Number |
|---|---|
| 218-8021, 30999327840 | |
| ADVANCE AUTO PARTS | YH145312, YH145312P |
| AMERICAN REMANUFACTURED | 89-34063 |
| AUTOSPECIALTY | AR8163, AR8163E |
| AUTOXTRA | 126006, 80680035, AX54095 |
| AUTOZONE | 54095, DL54095 |
| BENDIX | 145312 |
| BOSCH | 20010395 |
| BRAKEBEST | 20010395, 680035, 680035R, 680035RGS, BD126006 |
| BREMBO | 08.4931.20, 27204, 08.4931.21 |
| CENTRIC | 120.61070, 121.61070, 125.61070, 125.61070CRY, 126.61070CSL, 126.61070CSR, 126.61070SL, 126.61070SR, 127.61070CL, 127.61070CR, 127.61070L, 127.61070R, 128.61070CL, 128.61070CR, 128.61070L, 128.61070R, 320.61070C |
| CONTINENTAL-CONTITECH | CW10710 |
| Casting Numbers | 211012-C, 2A315EA/B, 325964 |
| Centric Parts | 120.61070, 121.61070, 125.61070, 125.61070CRY, 126.61070CSL, 126.61070CSR, 126.61070SL, 126.61070SR, 127.61070CL, 127.61070CR, 127.61070L, 127.61070R, 128.61070CL, 128.61070CR, 128.61070L, 128.61070R, 320.61070C |
| DURA CORP | BR54095 |
| DuraGo | BR54095 |
| FORD | 1S4Z2C026BA |
| GUARDIAN | 52-126006 |
| MAGMA PRODUCTS | PSR203062 |
| MIGHTY DISTRIBUTING SYSTEM | 54095 |
| MONROE BRAKES | BD126006 |
| MOTORCRAFT | BRR125 |
| NAPA BRAKES | SDK6086 |
| NEOTEK | 107132GF |
| NEWTEK AUTOMOTIVE | 54095 |
| Newtek Automotive USA | 54095 |
| PEP BOYS | 54095G |
| POWERSTOP | AR8163EVC |
| PROMAX | 14-54095 |
| PRONTO | BR54095 |
| QUALIS | 54095 |
| QUALITY BRAND | 54095, Q4152 |
| STANDARD ROTORS AND DRUMS | 54095 |
| UAP | 54095 |
| Ultra Brake | FO-139 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51462 |
| WABCO | PS54095 |
| WABCO - Archived | PS54095 |
| WAGNER | BD126006E, BD126006 |
| WAGNER BRAKE | BD126006 |
| WINHERE | 661383, YH1383 |
| WORLDPAC | 1407-25402 |
| Wagner Brake | BD126006E |
RAYBESTOS 680035 Fits Vehicles
- Ford Fiesta (2014-2019)
- Ford Focus (2000-2007)
