BENDIX 801140 Part Description
Manufacturer
Product Description
Trailer Control Valve
Features & Benefits
- A hand-operated control valve that has a graduated control of air pressure
- Offers ease of installation as it is designed for panel or dog house mounting
- Primarily used to operate the trailer brakes independently of the tractor brakes but must not be used as a parking control valve
- Made of high-quality materials to offer years of reliable use
- Engineered utilizing the latest technology to ensure efficient operation
- All Bendix valves are designed to improve vehicle performance and safety
Courtesy of Bendix – All rights reserved

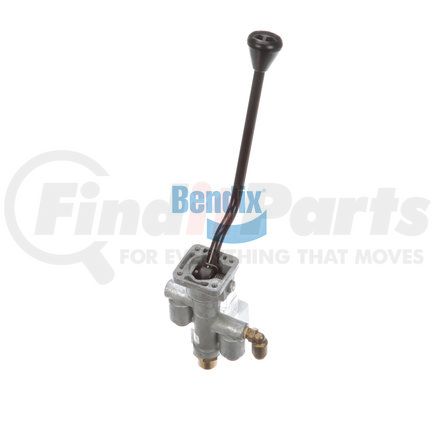

Bendix TC-6 Trailer Brake Control Valve
Manufactured by a trusted name in the trailer industry, the Bendix TC-6 trailer brake control valve is a durable, reliable, and economical replacement option for your damaged or worn-out valve. It goes through extensive field-testing in a wide variety of applications to ensure maximum performance even under harsh operating conditions.
BENDIX 801140 Specifications
Product Attributes
| New Or Remanufactured | New |
| Series | TC-6™ |
| Body Material | Zinc |
| Cautionary Note(s) | Not applicable to this part |
| Delivery Port | 3/8 PTC (Straight) |
| Exhaust Port | 3/8 PTC (Straight) |
| Final Delivery Pressure | 120 PSI |
| Graduating Pressure Range | 0 - 120 PSI |
| Handle Material | Aluminum (Black Epoxy / Laquer) |
| Handle Shape | Angled |
| Knob / Handle Color | Black |
| Knob / Handle Text | <No Text> |
| Market Indicator | Aftermarket New |
| Maximum Operating Temperature | 200 AdegF (93 AdegC) |
| Minimum Operating Temperature | -40 AdegF (-40 AdegC) |
| Mounting | #10-24 UNC-2B (4x) |
| Mounting Clamp Included | Not applicable to this part |
| Mounting Location | Dash Mount |
| Product Type | Self-Return (without Detent) |
| Reverse Cam | Not applicable to this part |
| Supply Port | 3/8 PTC (Straight) |
| Total Cam Follower Travel | Not applicable to this part |
| Total Handle Travel | 70Adeg |
Additional Information
| Country of Origin (Primary) | MX |
| Harmonized Tariff Code (HTS) | 8481200070 |
| VMRS Code | 013010014 |
BENDIX 801140 Cross References
| Brand | Part Number |
|---|---|
| N/A | 289890 |
