DORMAN 686-252 Part Description
Manufacturer
Product Description

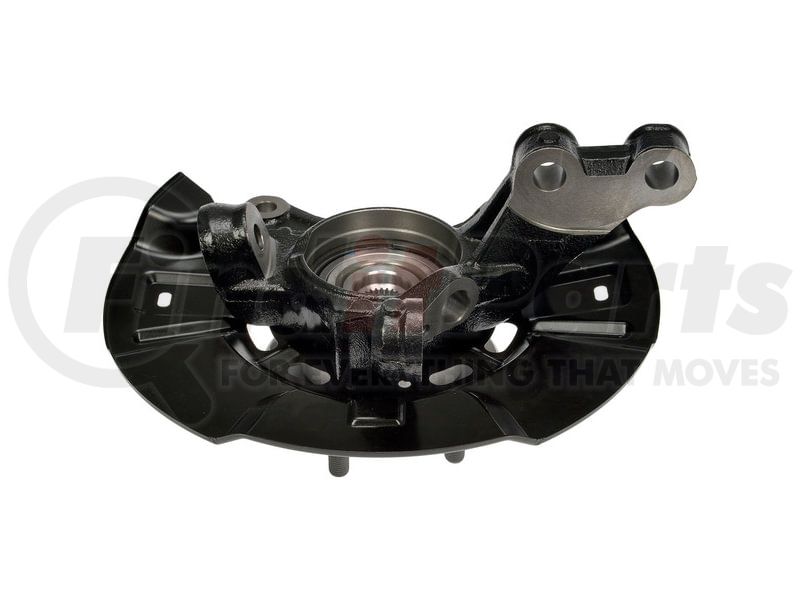

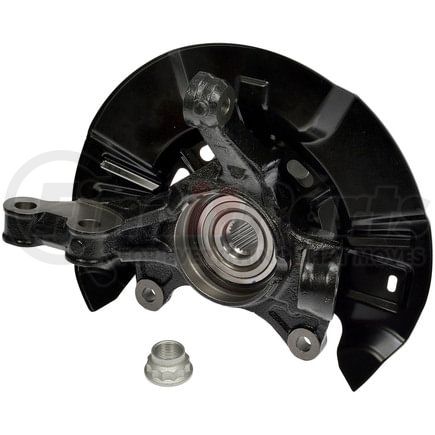

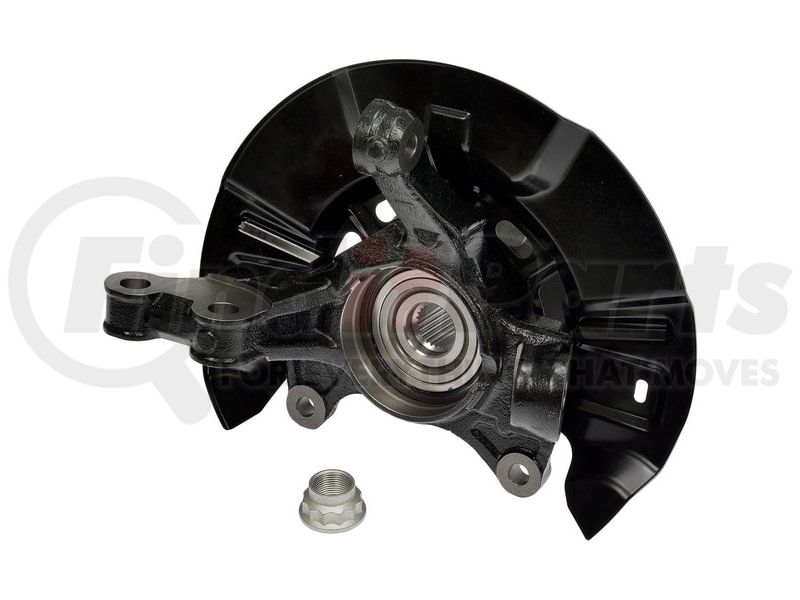

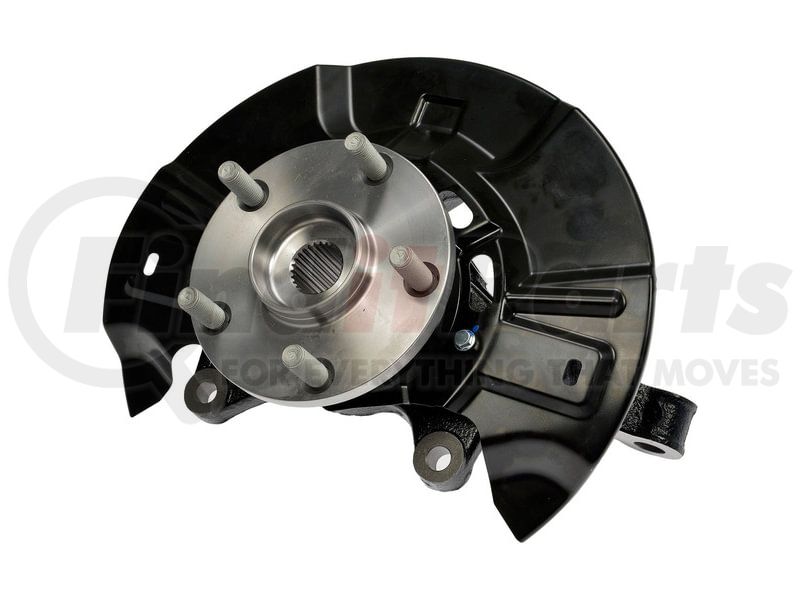

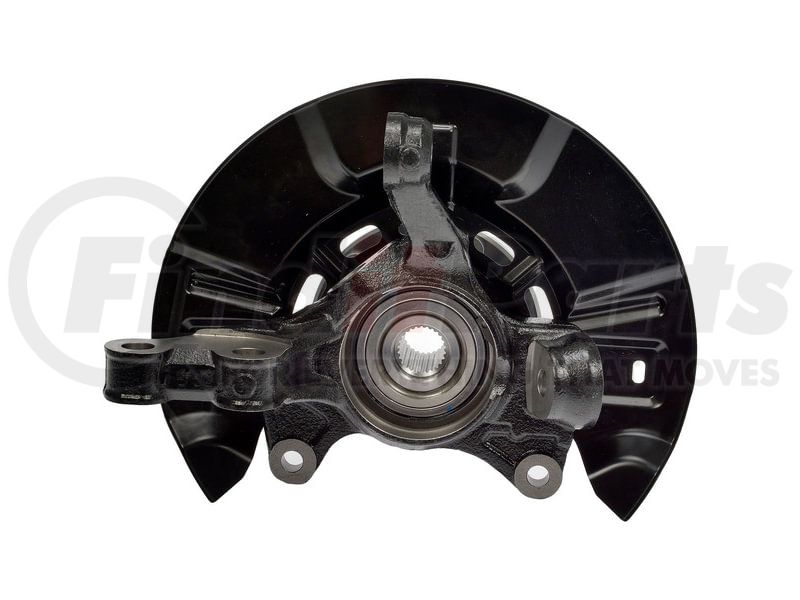

Front Loaded Knuckle
Application Summary
Pontiac Vibe 2010-09, Toyota Matrix 2013-09
Features & Benefits
- Pre-pressed assembly - this complete loaded knuckle kit includes all necessary components ready for installation right out of the box
- Saves hours - eliminates the possibility of extended time spent wrestling with individual corroded components
- Simpler solution - no need for hydraulic press to perform complete bearing repair, making replacement faster and more predictable for both professionals and DIYers
- Quality engineering - designed in the United States and backed by a century of automotive aftermarket experience
Wheel, Bearing, Hub, Assembly, Hubs, Assemblies
Loaded Knuckle
DORMAN 686-252 Specifications
Product Attributes
| Knuckle Pilot Hole Diameter | 27.5 MM |
| Spline Quantity | 26 |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 5 |
| Wheel Stud Size | 1.5 mm |
| Wheel Pilot Diameter | 114.3 MM |
| Brake Pilot Diameter | 139 MM |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Hub Pilot Diameter | 71.25 MM |
| Flange Shape | Circular |
| Flange Bolts Included | Yes |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Sensor |
| Mounting Hardware Included | Non |
| Anti-Lock Brake Sensor Included | No |
| Connector Quantity | 0 |
| Drive Type | Driven |
| Bearing Type | Ball |
| Flange Bolt Hole Diameter | 12.85 MM |
| Flange Diameter | 139 MM |
| Bolt Circle Diameter | 114.3 MM |

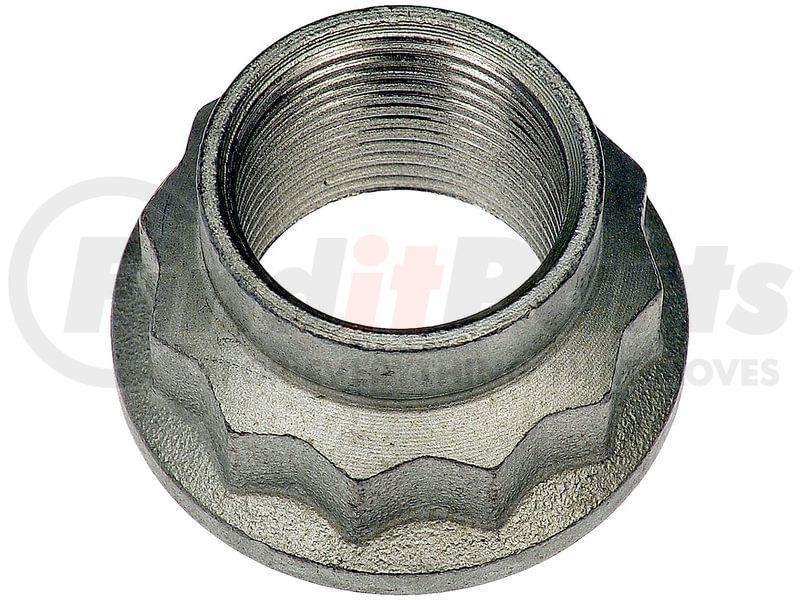

| Package Contents | 1 Axle Nut |
| Knuckle Pilot Hole Diameter | 27.5 mm MM |
| Hub Pilot Diameter | 71.25 mm |
| Flange Diameter | 139 mm MM |
| Spline Quantity | 26 |
| Wheel Pilot Diameter | 114.3 mm MM |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 1.5 mm MM |
| Wheel Studs Included | Oui |
| Flange Bolts Included | Oui |
| Grade Type | Reemplazo estándar |
| Anti Lock Braking System Type | Sensor |
| Bearing Type | Rótula |
| Bolt Circle Diameter | 114.3 mm mm |
| Brake Pilot Diameter | 139 mm MM |
| Flange Bolt Hole Quantity | 5 |
| Flange Bolt Hole Diameter | 12.85 mm MM |
| Drive Type | Impulsado |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00889245539526 |
| VMRS Code | 011001004 |
| UNSPSC | 25174216 |
DORMAN 686-252 Cross References
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | LK068 |
| Toyota | 4321102210, 4778102140, 4350202090, 9008036193 |
| WJB | WLK068 |
DORMAN 686-252 Fits Vehicles
- Pontiac Vibe (2009-2010)
- Toyota Matrix (2009-2013)
