CENTRIC 400.44004 Centric Premium Hub and Bearing Assembly; With ABS

Name: Centric 400.44004 Centric Premium Hub and Bearing Assembly; With ABS
SKU: 40044004
Price: 280.85 USD
Availability: OutOfStock

Tap to view 1 more

$280.85

MSRP Pricing shown.

Out of Stock

We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.

We may have similar parts for sale. Search Alternatives >

CENTRIC 400.44004 Part Description

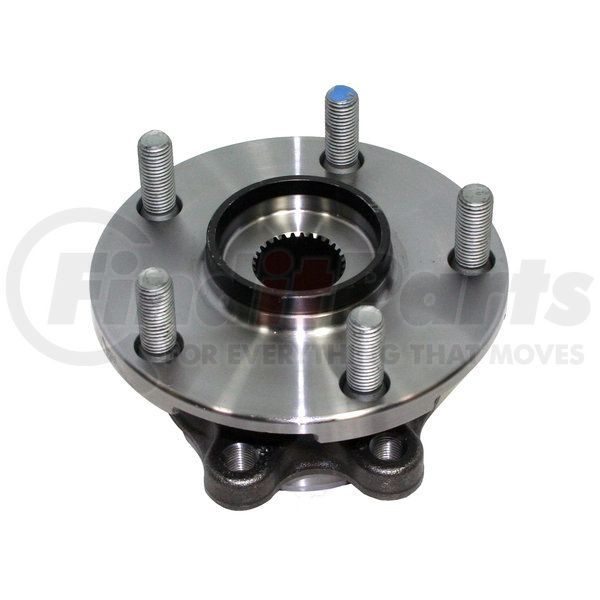

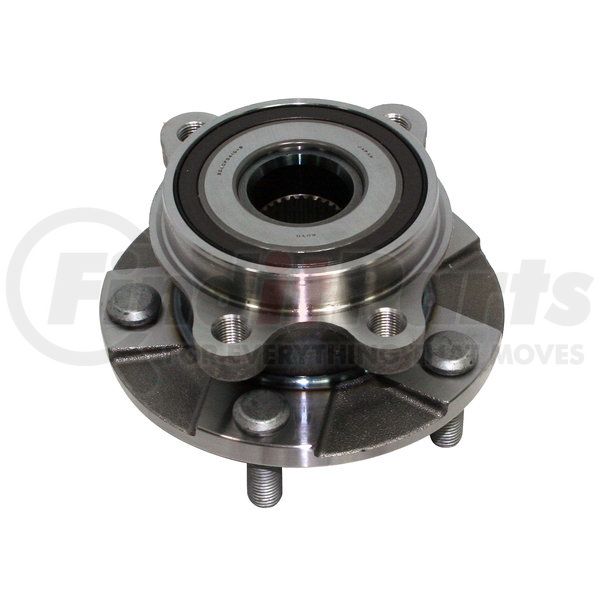

Centric Premium Hub and Bearing Assembly; With ABS

100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Double Row Ball or Taper Roller Bearings include integral encoder for ABS and TCS where applicable
Gen 1
Gen 2
Double Row Ball or Taper Roller Bearing Assemblies include one mounting flange - includes integral encoder for ABS, TCS where applicable
Gen 3
Double Row Ball or Taper Roller Bearing Assemblies include 2 mounting flanges - includes integral ABS sensor where applicable

Spline Bore Dia [cntrc] Mm	30.000
Thread Pitch To Wheel Mounting [cntrc] Mm	1.500
Inner Mount Pilot [cntrc] Mm	89.920
Notes [cntrc]	Magnetic ABS Encoder
Bolt Circle Diameter [cntrc] Mm	114.300
Mouting Thread Size [cntrc] Mm	12.000
Bolt Circle Diameter [cntrc] In	4.500
Mounting Thread Pitch [cntrc] Mm	1.250
Off-set [cntrc] Mm	1.870
Inner Mount Pilot [cntrc] In	3.540
Off-set [cntrc] In	47.500
Mounting Hole Qty [cntrc]	4
Product Grade [cntrc]	Premium
Spline Quantity	30
Wheel Stud Size	12.000 MM
Wheel Pilot Diameter	59.940 MM
Wheel Pilot Diameter	2.360 IN
Brake Pilot Diameter	61.980 MM
Brake Pilot Diameter	2.440 IN
Wheel Stud Quantity	5
Wheel Studs Included	Yes
Flange Diameter	5.470 IN
Flange Diameter	138.940 MM

Harmonized Tariff Code (HTS)	8482105016
NAFTA Preference Criterion Code	B
Country of Origin (Primary)	JP
UPC	00805890563075
