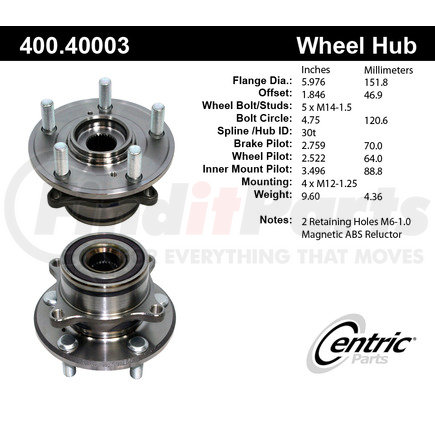

Centric 400.40003 - Centric Premium Hub and Bearing Assembly; With ABS
$10049
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly; With ABS
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Inner Mount Pilot [cntrc] In | 3.496 |
| Inner Mount Pilot [cntrc] Mm | 88.800 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Notes [cntrc] | 2 Retaining Holes M6-1.0; Inner Magnetic ABS Encoder Seal |
| Off-set [cntrc] In | 46.890 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Mounting Hole Qty [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Off-set [cntrc] Mm | 1.846 |
| Bolt Circle Diameter [cntrc] Mm | 120.650 |
| Bolt Circle Diameter [cntrc] In | 4.750 |
| Mounting Thread Pitch [cntrc] Mm | 1.250 |
| Spline Quantity | 30 |
| Wheel Stud Size | 14.000 MM |
| Wheel Pilot Diameter | 64.060 MM |
| Wheel Pilot Diameter | 2.522 IN |
| Brake Pilot Diameter | 70.080 MM |
| Brake Pilot Diameter | 2.759 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.976 IN |
| Flange Diameter | 151.790 MM |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | JP |
| Harmonized Tariff Code (HTS) | 8482105016 |
| UPC | 805890562955 |
Part Interchanges
Fits Vehicles
- Acura ZDX (2010-2013)
- Honda Pilot (2009-2015)
- Acura MDX (2007-2013)
