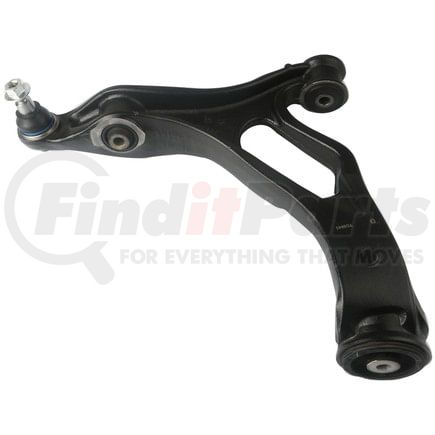

DELPHI TC6843 Control Arm and Ball Joint Assembly

$300.49

Limited availability at this price!

In Stock

Get it by Friday, Dec 19
No Hassle Return Policy Details
Free Economy shipping on orders over $499 details
Orders placed before 2pm EST will ship same day

DELPHI TC6843 Part Description

Manufacturer

DELPHI

Product Description

Control Arm and Ball Joint Assembly

Control Arm and Ball Joint Assembly

DELPHI TC6843 Specifications

Product Attributes

Position(s) Front Right Lower
Pre-Greased Yes
Grease Fitting Included No
Bushings Included Yes
Ball Joint Mounting Type Press In
Ball Joint Stud Type Threaded
Control Arm Construction Casting/Forged
Control Arm Material Steel
Mounting Hardware Included Yes
Mounting Hole Quantity 2
Adjustable No
Greaseable No
Control Arm Maximum Width 14.350 IN
Control Arm Maximum Width 364.50 MM
Control Arm Color Black
Ball Joint Thread Diameter 0.551 IN
Ball Joint Thread Diameter 14.00 MM
Ball Joint Stud Length 0.827 IN
Ball Joint Stud Length 21.00 MM
Control Arm Maximum Length 16.142 IN
Control Arm Maximum Length 410.00 MM
Mounting Hole Diameter 0.555 IN
Mounting Hole Diameter 14.10 MM
Thread Direction Clockwise (Right)
Bushing Color Black
Finish Painted
Dust Boot Included Yes
Ball Joint Included Yes
Grade Type Premium
Boot Material Chloroprene Rubber (CR)
Locking Nut Included Yes
Thread Diameter 14.00 MM
Boot Color Black
Steering Type Power
Bearing Material Plastic
Bushing Material Rubber
Dust Boot Material Chloroprene Rubber (CR)
Thread Diameter 0.551 IN

Additional Information

Harmonized Tariff Code (HTS) 8708947550
Warranty Special Limited Lifetime
Warranty Special UOM LF
Harmonized Tariff Code (Schedule B) 8708948000
Country of Origin (Primary) US
UPC 00689604377710
VMRS Code 016001001
UNSPSC 25172013

DELPHI TC6843 Part Interchanges

Brand Part Number
Porsche 955 341 018 61

DELPHI TC6843 Fits Vehicles

  • Audi Q7 (2010)
  • Volkswagen Touareg (2007-2010)
  • Porsche Cayenne (2008-2010)

DELPHI TC6843 Manufacturer Information

Delphi® is committed to making a difference. With a global network of more than 2,400 service centers and a presence in over 150 countries, Delphi Technologies delivers OE-specific aftermarket parts and software solutions for a wide range of passenger vehicles, light and medium commercial vehicles, heavy-duty truck and commercial vehicles, as well as agricultural, marine, and industrial equipment. The company’s comprehensive product portfolio includes components for diesel fuel systems, engine management, gasoline fuel systems, vehicle electronics, and maintenance solutions. Delphi Technologies takes pride in its state-of-the-art manufacturing facility as well as OE-level diagnostic and test equipment that produces OE-quality aftermarket components to make vehicles and trucks run cleaner, drive better, and last further.
