(888) 312-8812 Login SignupCENTRIC 125.66026 Centric Premium High Carbon Alloy Brake Rotor
Tap to view 1 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 125.66026 Part Description
Manufacturer
Product Description

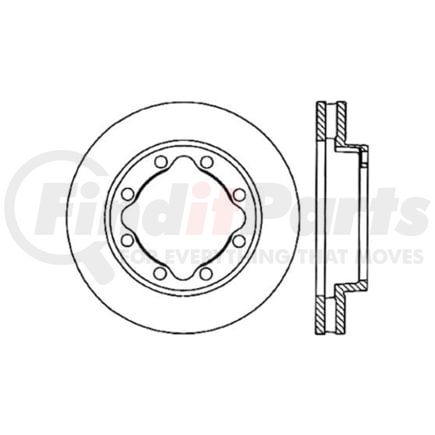

Centric Premium High Carbon Alloy Brake Rotor
Features & Benefits
- Centric Premium Rotor with advanced metallurgy that greatly reduces pad squeal. Especially effective with higher friction; European style brake pad compounds. Added Molybdenum and Chromium to resist rotor cracking
- Painted hat and outer edge for corrosion resistance
- Painted Hat and Outer Edge
- Optimal Surface Finish
- Optimal surface finish for consistent stopping feel from the first stop
- Advanced Metallurgy
- Advanced metallurgy for optimal heat transfer and structural strength
- OE Vane Design and Plate Thickness
- OE vane design and plate thickness for heat capacity and strength
- Low Initial Lateral Run-Out
- Low initial lateral run-out and disc thickness variation for smooth, vibration free stopping
- Precision Balance
- Precision balance for vibration free performance
CENTRIC 125.66026 Specifications
Product Attributes
| Weight [cntrc] Kgs | 11.140 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Behind the Hub |
| Weight [cntrc] Lbs | 24.500 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 1.465 IN |
| Discard Thickness | 37.210 MM |
| Nominal Thickness | 1.539 IN |
| Nominal Thickness | 39.100 MM |
| Hat Finish | Painted |
| Overall Height | 2.756 IN |
| Overall Height | 70.000 MM |
| Outside Diameter | 317.300 MM |
| Outside Diameter | 12.492 IN |
| Mounting Bolt Hole Quantity | 8 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 5.409 IN |
| Center Hole Diameter | 137.400 MM |
| Mounting Bolt Hole Circle Diameter | 6.500 IN |
| Mounting Bolt Hole Circle Diameter | 165.100 MM |
| Mounting Bolt Hole Diameter | 16.400 MM |
| Mounting Bolt Hole Diameter | 0.646 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 00805890133179 |
CENTRIC 125.66026 Cross References
CENTRIC 125.66026 Fits Vehicles
- Dodge Ram 4000 (1998-1999)
- GMC K3500 (1992-1996)
- Chevrolet K3500 (1992-2000)
- Dodge Ram 3500 (1994-1999)
- Dodge Ram 2500 (1994-1999)
